Four Facts about the use of Tiltrotators:
PRODUCTIVITY AND PROFITABILITY: Manage the same amount of work in less time.
SAFETY: The NOX Tiltrotator complies with all current safety regulations and helps the operator and surrounding workforce to achieve an accident-free environment.
VERSATILTY AND FLEXIBILITY: Increase the use of your machine dramatically and accept more jobs. Especially in conjunction with the NOX.
READY FOR THE FUTURE: The NOX tiltrotator comes GPS-ready with its very modern NOXProp+ Control System. The most common 3D Machine Control
Systems can be implemented. Even retroactively.
TR045NOX
Operating Weight
2.5 - 4.5t
Weight* (from)
150 kg
Width A* (from)
190 mm
Length B* (from)
435 mm
Height C* (from)
380 mm
Recomm. bucket width max.
1,100 mm
Breakout force max. (ISO)
40 kN
Breakout torque max.
29 kNm
Tilt angle
2 x 45°
Tilt torque (constant)
6.5 kNm
Rotation speed
8.5 per min
Rotation torque
3,800 Nm
Hydraulic pressure max.
21 MPa
Recomm. pump capacity CSP
30-80 l/min
Recomm. pump capacity DF04/06/10
15 / 32 l/min
Electric swivel
-
TR07NOX
Operating Weight
4 - 7t
Weight* (from)
200 kg
Width A* (from)
205 mm
Length B* (from)
460 mm
Height C* (from)
420 mm
Recomm. bucket width max.
1,200 mm
Breakout force max. (ISO)
50 kN
Breakout torque max.
40 kNm
Tilt angle
2 x 50°
Tilt torque (constant)
11 kNm
Rotation speed
8.5 per min
Rotation torque
4,700 Nm
Hydraulic pressure max.
25 MPa
Recomm. pump capacity CSP
30-80 l/min
Recomm. pump capacity DF04/06/10
15 / 32 l/min
Electric swivel
optional
TR11NOX
Operating Weight
6 - 11t
Weight* (from)
320 kg
Width A* (from)
215 mm
Length B* (from)
580 mm
Height C* (from)
475 mm
Recomm. bucket width max.
1,300 mm
Breakout force max. (ISO)
75 kN
Breakout torque max.
79 kNm
Tilt angle
2 x 50°
Tilt torque (constant)
16 kNm
Rotation speed
8.5 per min
Rotation torque
7,500 Nm
Hydraulic pressure max.
27 MPa
Recomm. pump capacity CSP
40-100 l/min
Recomm. pump capacity DF04/06/10
21 / 40 l/min
Electric swivel
optional
TR14NOX
Operating Weight
10 - 14t
Weight* (from)
485 kg
Width A* (from)
240 mm
Length B* (from)
610 mm
Height C* (from)
565 mm
Recomm. bucket width max.
1,600 mm
Breakout force max. (ISO)
110 kN
Breakout torque max.
145 kNm
Tilt angle
2 x 50°
Tilt torque (constant)
31 kNm
Rotation speed
8.5 per min
Rotation torque
11,000 Nm
Hydraulic pressure max.
30 MPa
Recomm. pump capacity CSP
80-160 l/min
Recomm. pump capacity DF04/06/10
40 / 45 l/min
Electric swivel
optional
TR19NOX
Operating Weight
14 - 19t
Weight* (from)
580 kg
Width A* (from)
230 mm
Length B* (from)
645 mm
Height C* (from)
580 mm
Recomm. bucket width max.
1,700 mm
Breakout force max. (ISO)
150 kN
Breakout torque max.
200 kNm
Tilt angle
2 x 50°
Tilt torque (constant)
40.5 kNm
Rotation speed
8.5 per min
Rotation torque
12,000 Nm
Hydraulic pressure max.
30 MPa
Recomm. pump capacity CSP
100-180 l/min
Recomm. pump capacity DF04/06/10
60 / 50 l/min
Electric swivel
optional
TR25NOX
Operating Weight
19 - 25t
Weight* (from)
860 kg
Width A* (from)
260 mm
Length B* (from)
845 mm
Height C* (from)
650 mm
Recomm. bucket width max.
2,000 mm
Breakout force max. (ISO)
170 kN
Breakout torque max.
250 kNm
Tilt angle
2 x 50°
Tilt torque (constant)
51.7 kNm
Rotation speed
8.5 per min
Rotation torque
15,000 Nm
Hydraulic pressure max.
30 MPa
Recomm. pump capacity CSP
120-200 l/min
Recomm. pump capacity DF04/06/10
70 / 70 l/min
Electric swivel
optional
*Specifications depend on the machine configuration (upper bracket and lower quick coupler)
TILTROTATOR WITH CYLINDERS
Minimum pivot point distance
TILTROTATOR WITH CYLINDERS
Maximum pivot point distance
TILTROTATOR WITH CYLINDERS
Narrow tilt angle
TILTROTATOR WITH CYLINDERS
Minimum pivot point distance
TILTROTATOR WITH CYLINDERS
Maximum pivot point distance
TILTROTATOR WITH CYLINDERS
Narrow tilt angle
nox
Tilt torque

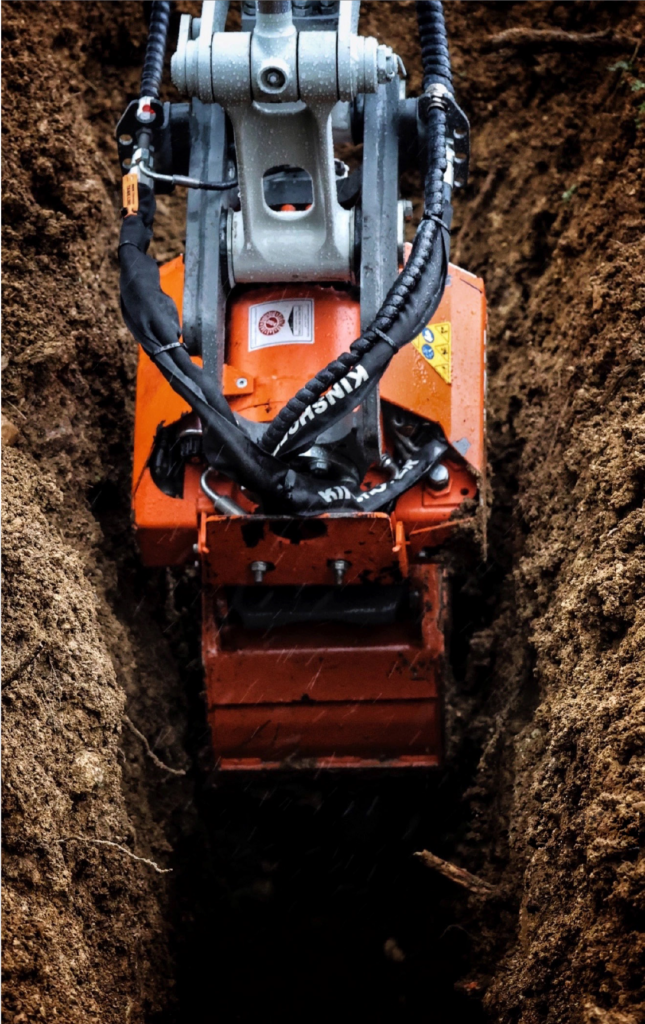

The cylinderless, extremely flat drive provides for a very low height as well as a narrow width. An elliptic piston generates a high and constant tilt torque thanks to its single gearing. The robust cast housing features a high stability due to a special material alloy, guaranteeing a long life even under the toughest conditions. The extremely rugged and strong drive for difficult tasks has a proper greasing and is thus low-maintenance.
nox
Tilt angle
360° continuous rotation and up to 2 x 50° tilt angle turn your machine into a multifunctional allrounder, increasing the flexibility and efficiency of all your attachments.

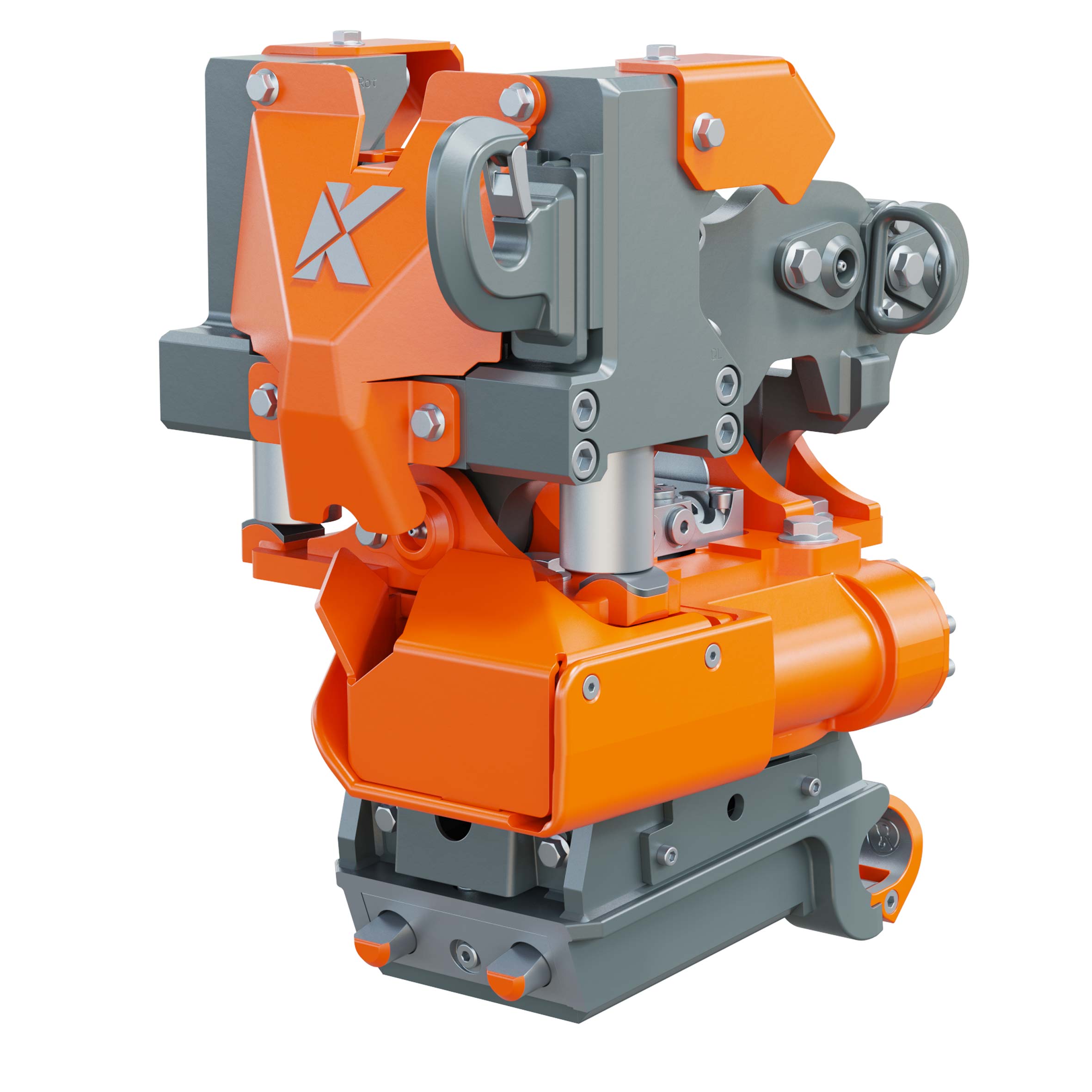

NOX TILTROTATOR
Pilot check valve ensures a high holding torque
nox
Holding torque
The NOX Tiltrotators are equipped with counter-balance valves, providing firm load holding in the desired position.
