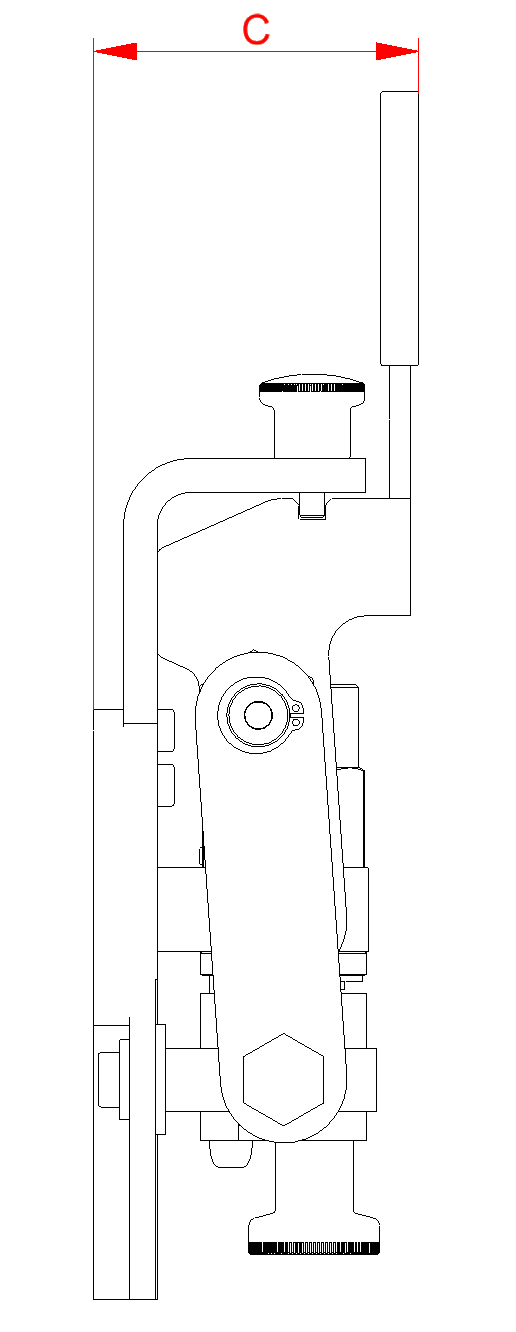

Compact Side Profile
Engineered with a low-profile side-mount frame that attaches directly to the excavator arm. Minimizes stem widening and protects hydraulic lines against site snagging.

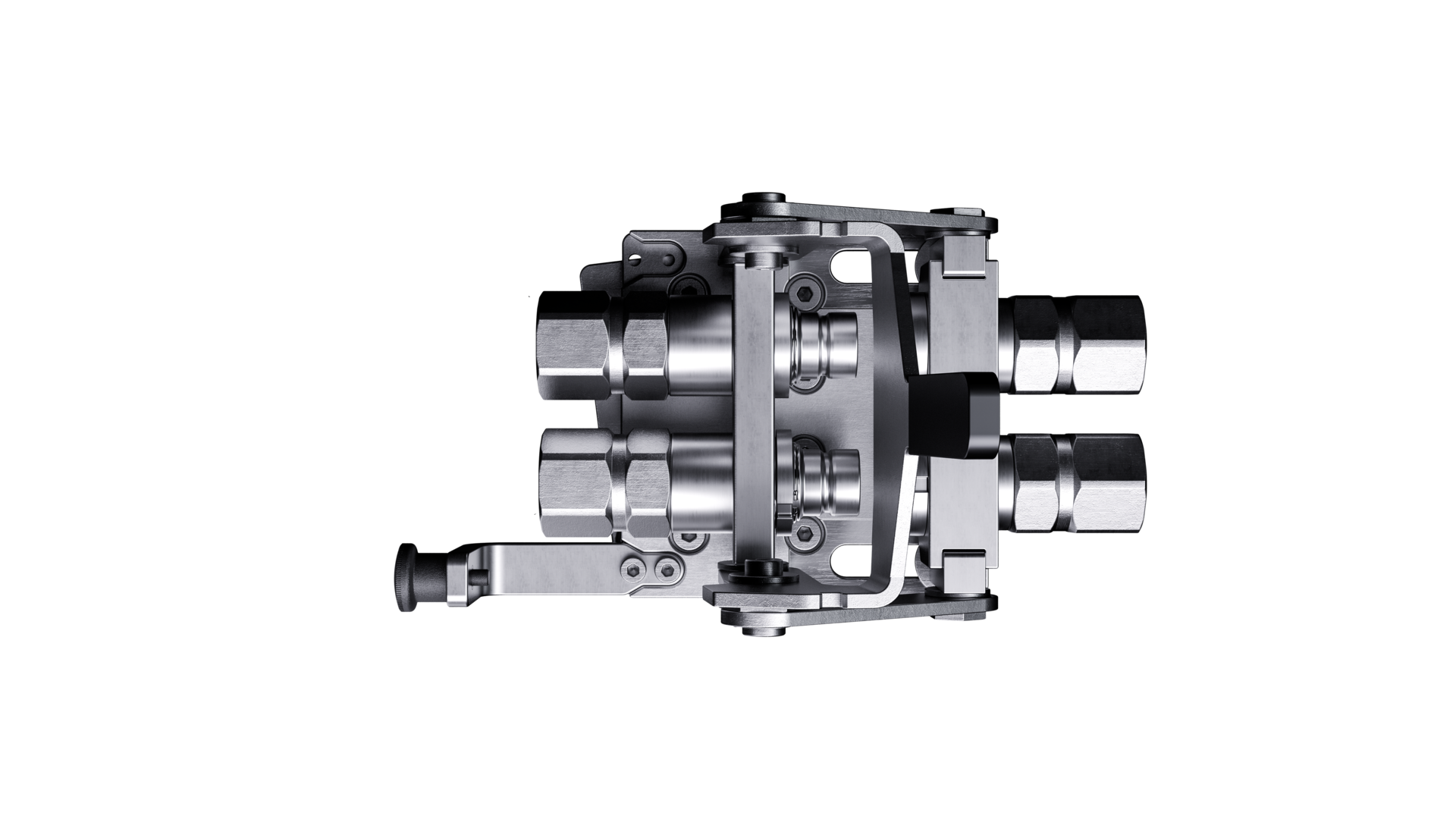

MKS
Connects all hydraulic lines cleanly and simultaneously in a single movement.
Ensures leak-free connections to protect hydraulic systems and the environment.
Can be connected securely even under residual or counter-pressure.

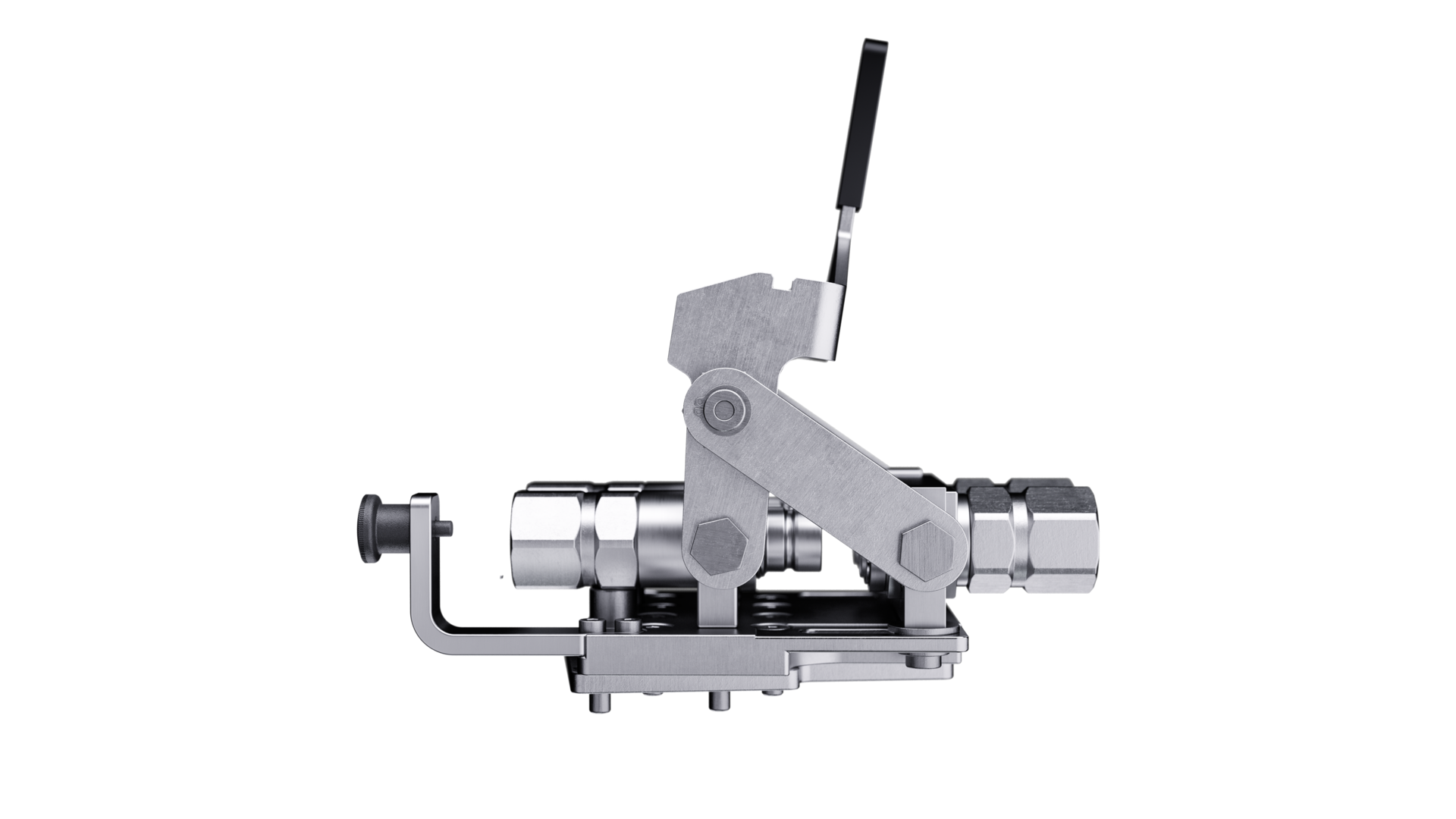

Ergonomic mechanical lever guarantees minimal effort and zero accidental detachment.
Engineered with a low-profile side-mount frame that attaches directly to the excavator arm. Minimizes stem widening and protects hydraulic lines against site snagging.
Integrated mechanical safeguards prevent incorrect coupling orientation. Built with high-grade flat-face quick-release couplings compatible with standard market attachment fleets.
Integrated mechanical safeguards ensure mating couplings can only be inserted in the correct position – structural misconnection is impossible.
Allows safe, reliable connection of hydraulic circuits even under residual or counter-pressure without manual pressure relief tools.
Fully compatible with standard market coupling systems, enabling flexible integration across existing excavator and attachment fleets.
Allows all hydraulic lines to be connected simultaneously in one quick step, eliminating tool change downtime on busy sites.
Available with parking stations and protection plates to prevent dirt contamination and safeguard quick couplers during storage.

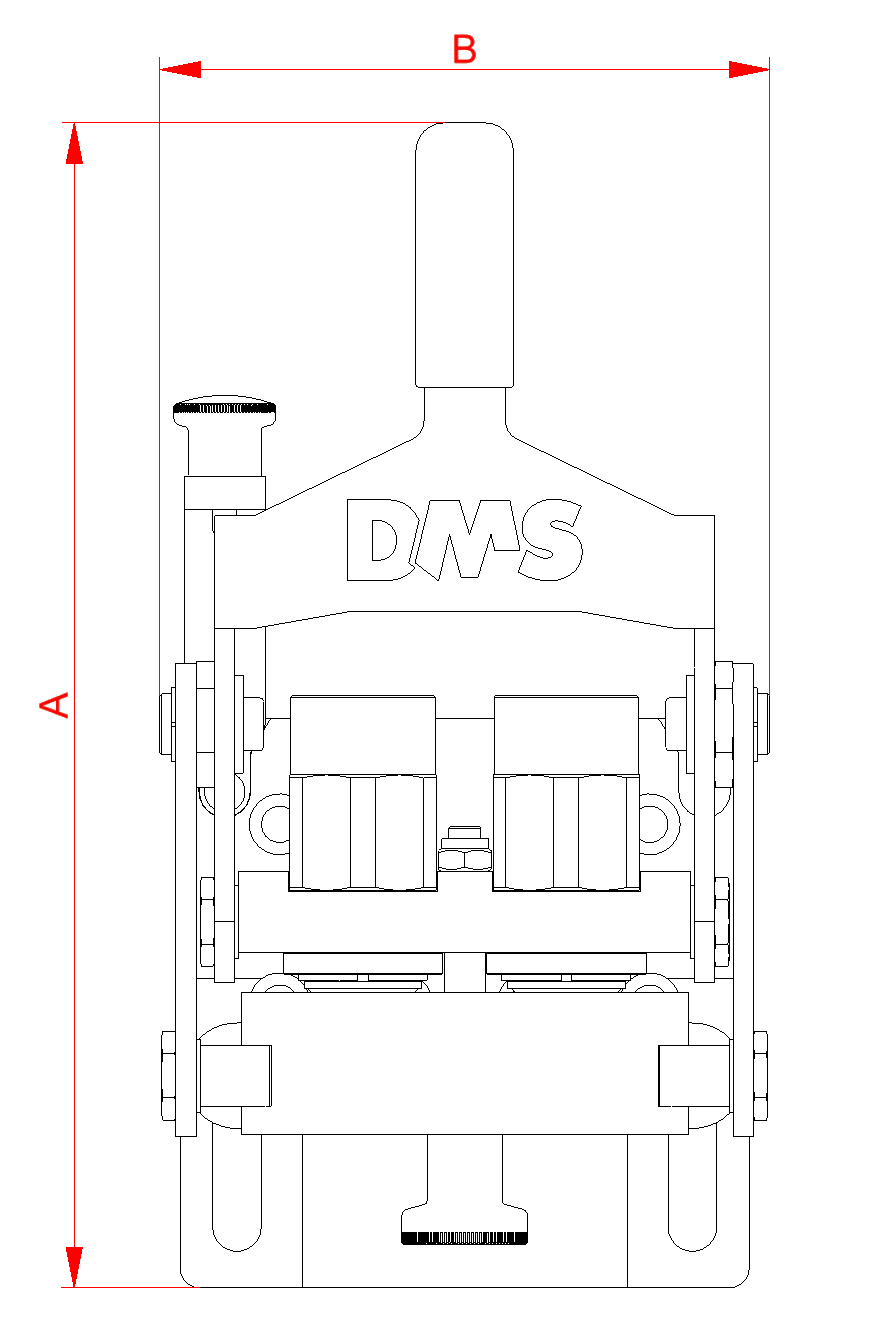

| Excavator Class | 1.6 – 9.0 t |
|---|---|
| Length | 290 mm |
| Height | 80 mm |
| Width | 150 mm |
| Operating Pressure | 300 bar |
| Max Flow Rate | 100 L/min |
| Back Pressure | 4 bar |
| Coupler Size | 1/2 inch |
| Connection Standard | G 3/4 inch |
