Formiko FHR5 5t Hydraulic Rotator

In Stock

The Formiko FHR5 5t Hydraulic Rotator is a compact and reliable forestry rotator designed for efficient log handling and light-duty material handling tasks. With a 5-ton lifting capacity and smooth 360° hydraulic rotation, it offers precise control for grapples, small forestry cranes, and compact log loaders. Built from high-strength steel with durable hydraulic components, the FHR5 provides dependable performance, minimal maintenance, and long service life in demanding forestry environments. The Formiko FHR5 hydraulic rotator is an excellent choice for operators looking to improve efficiency and control in everyday timber handling operations.

Share

Key Features

Continuous Rotation
Unlimited 360° rotation.
5 Ton Capacity
Safe working load up to 5500 kg.
High Torque Motor
Up to 1300 Nm torque.
Heavy-Duty Build
Industrial steel construction.

Select Model

FHR 4.5L68

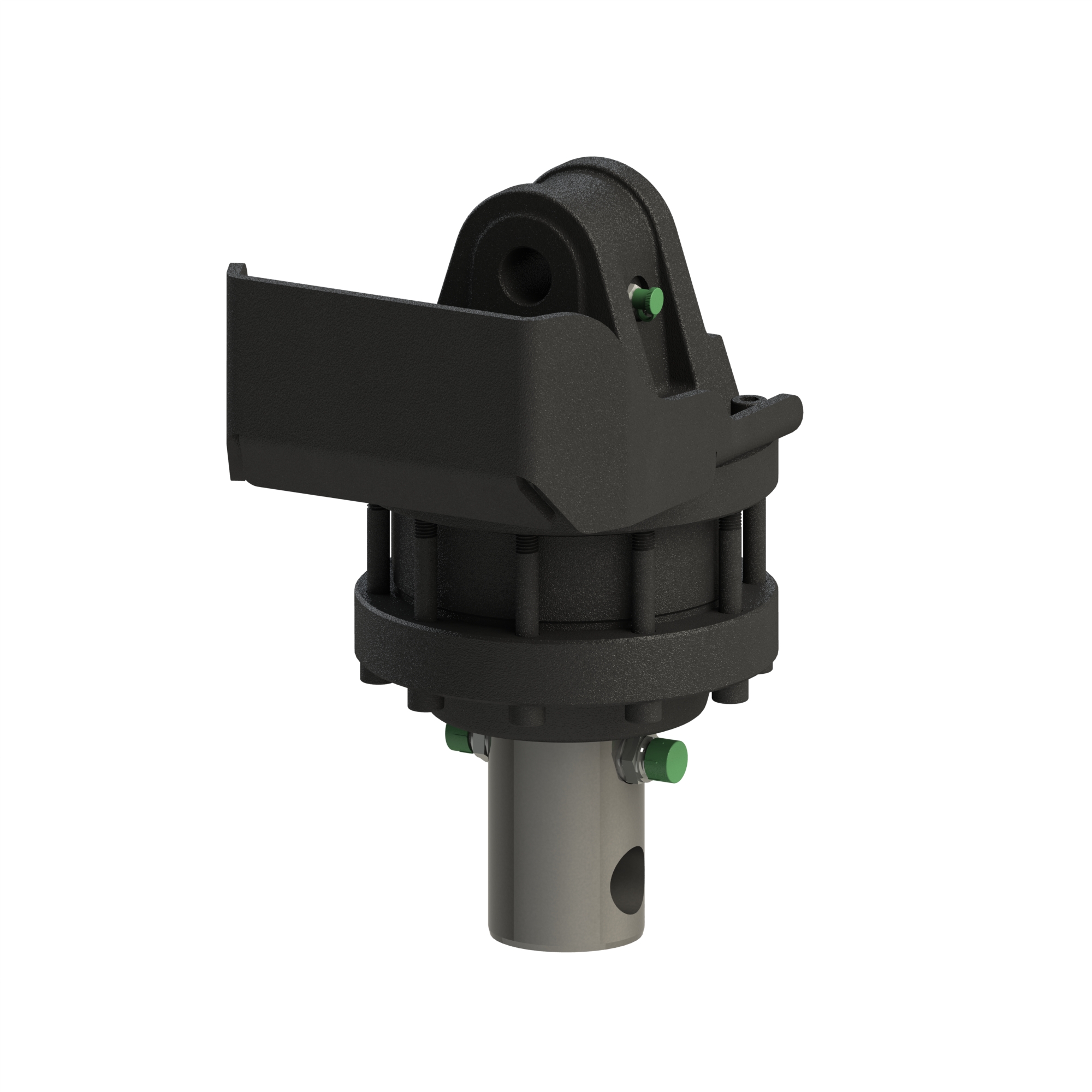

FHR 4.5L68H

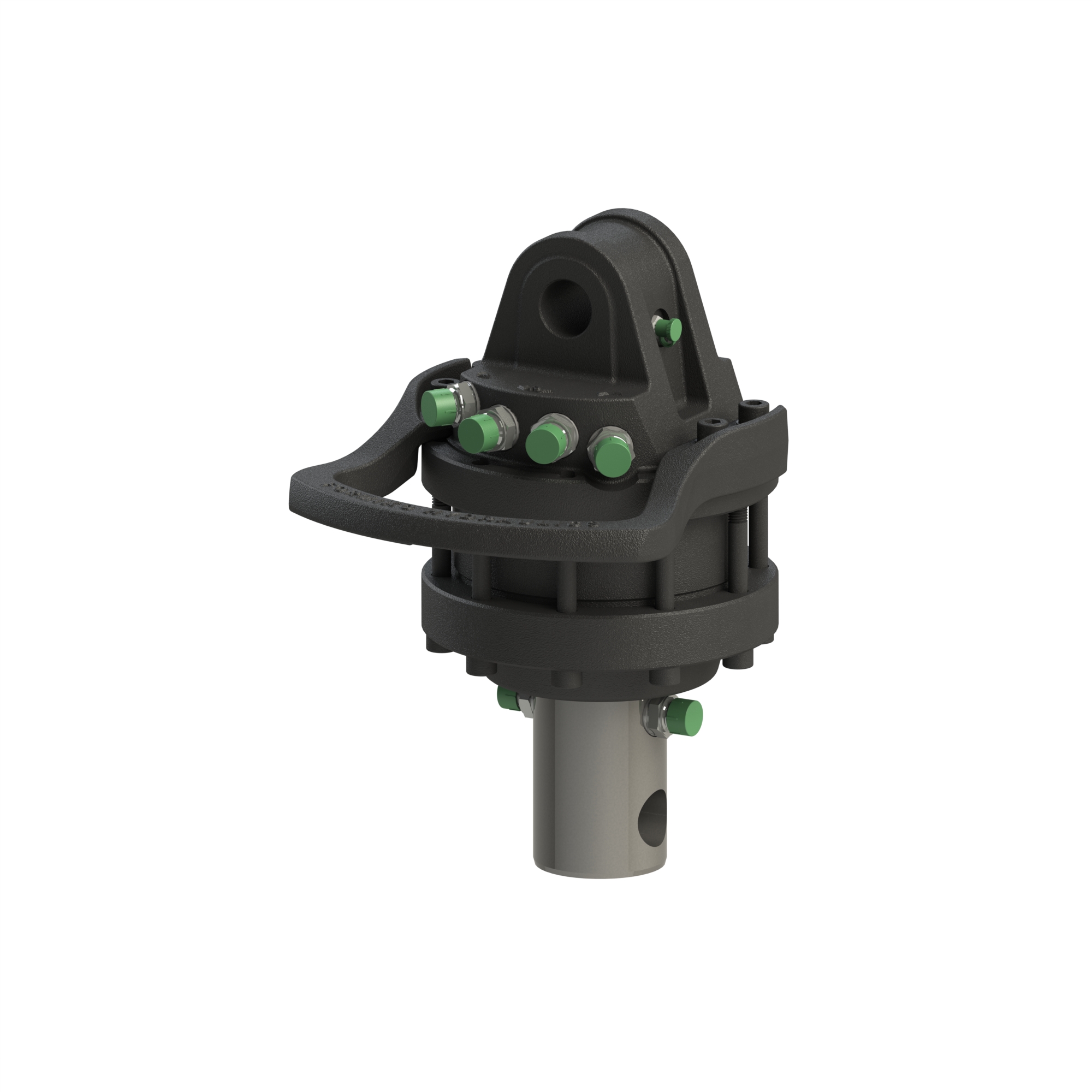

FHR 5.5L

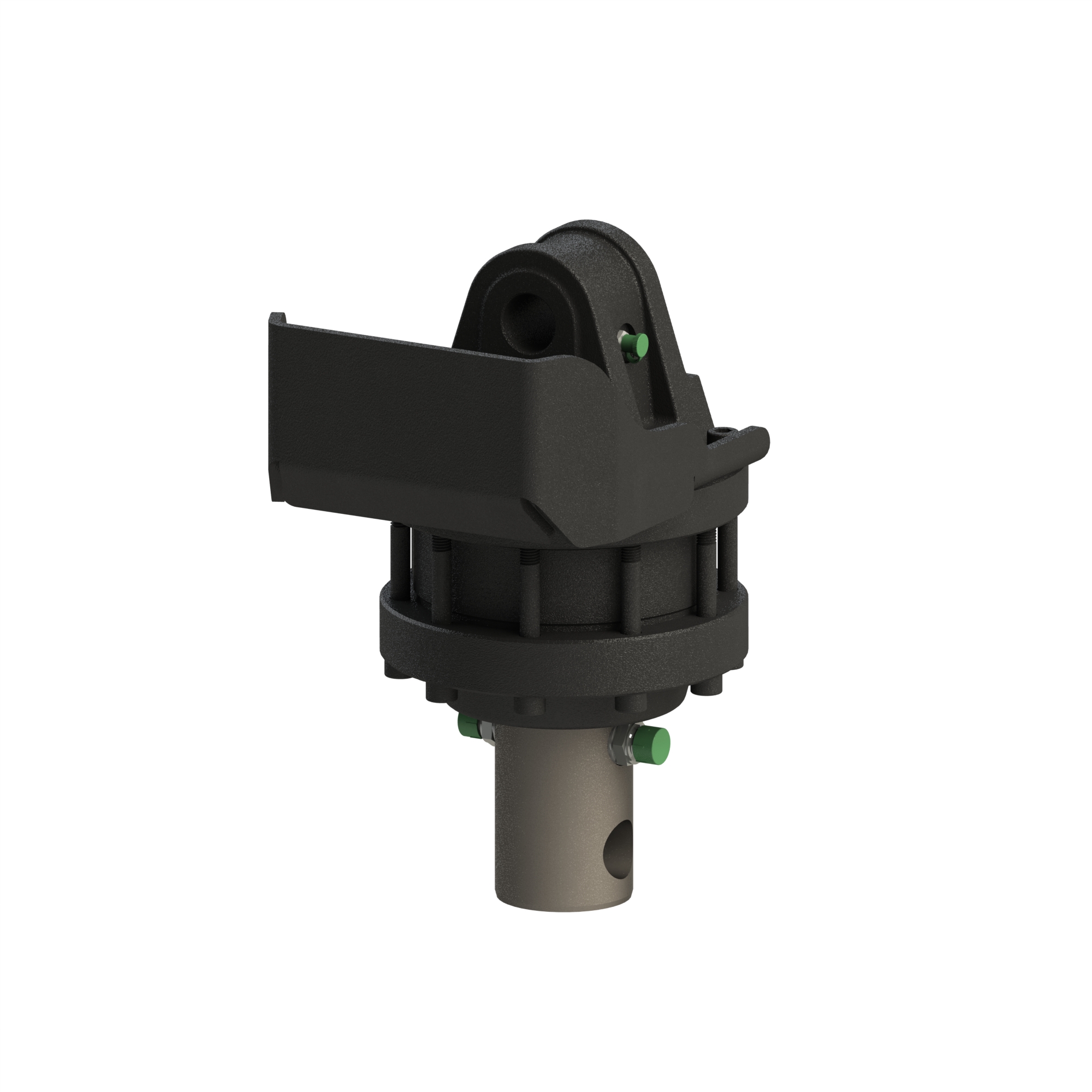

FHR 5.5LH

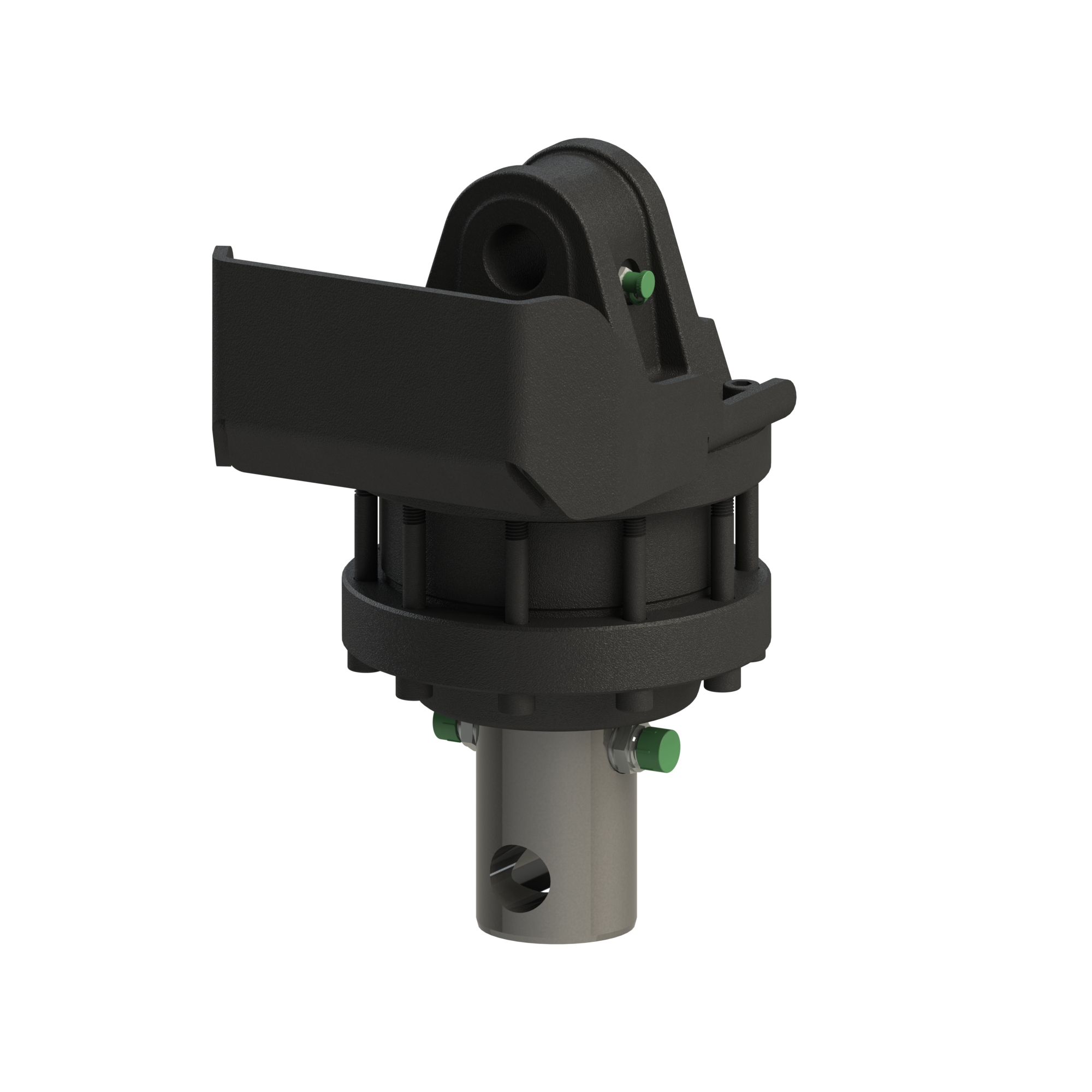

FHR 5.5L1H

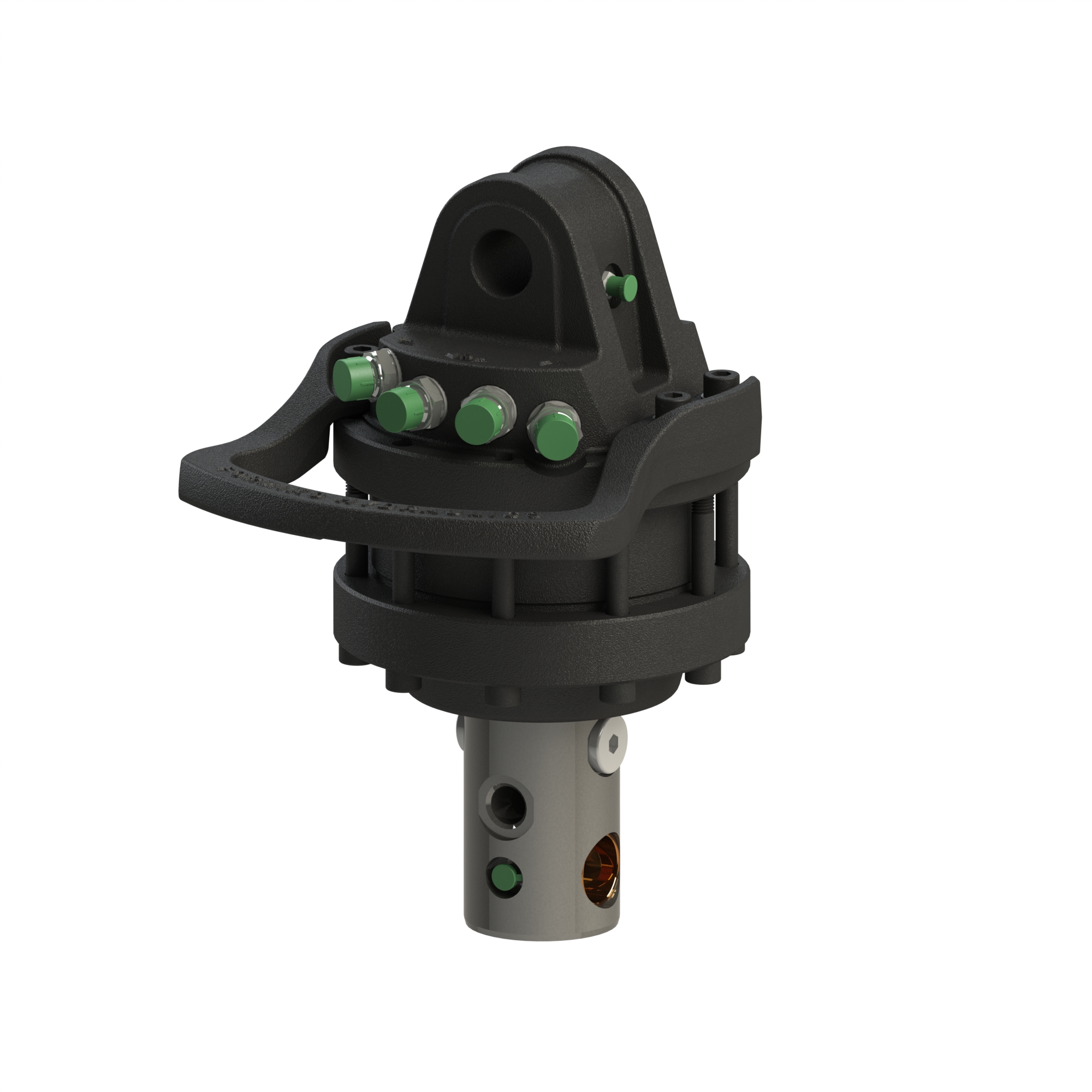

FHR 5.5L-02

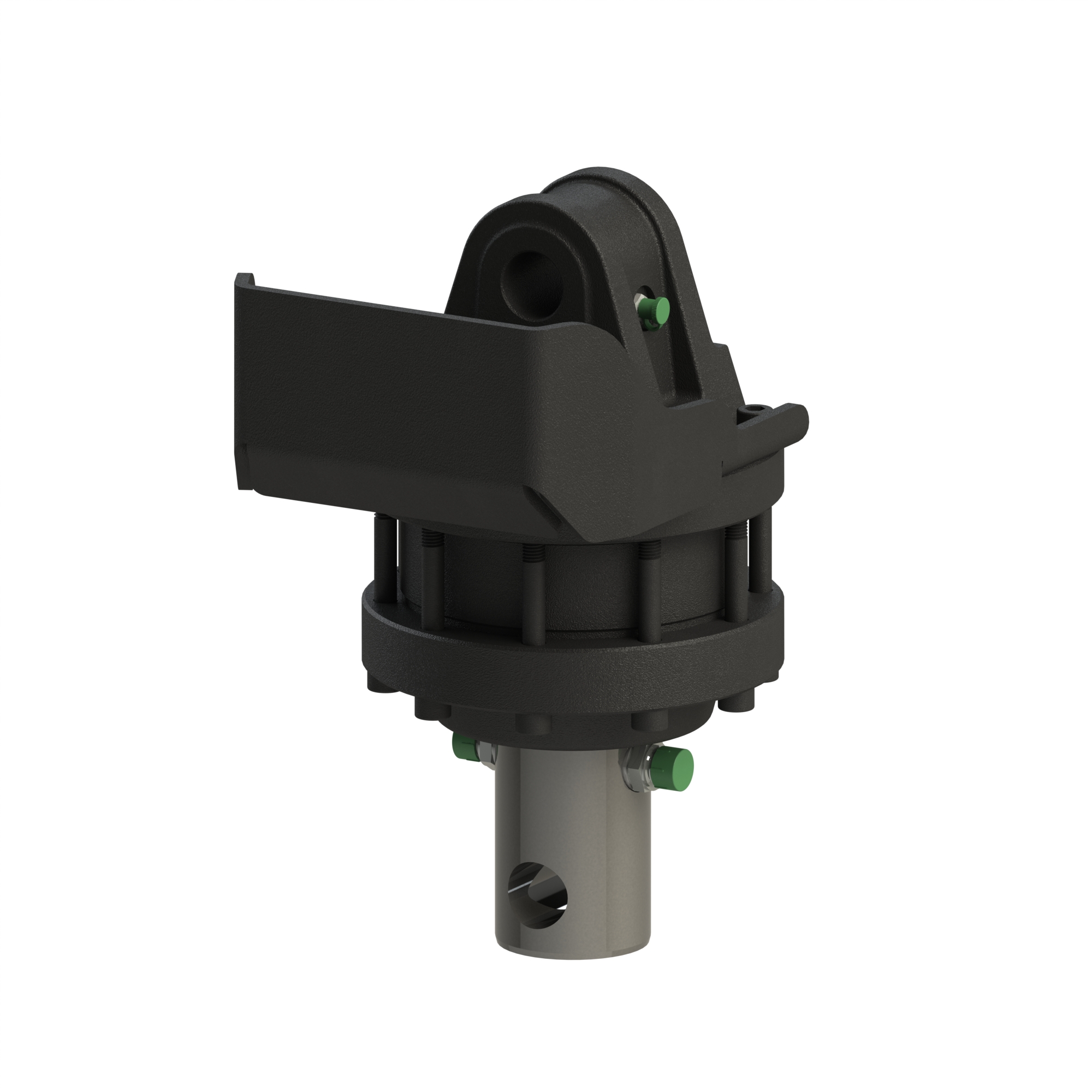

FHR 5.5L68H

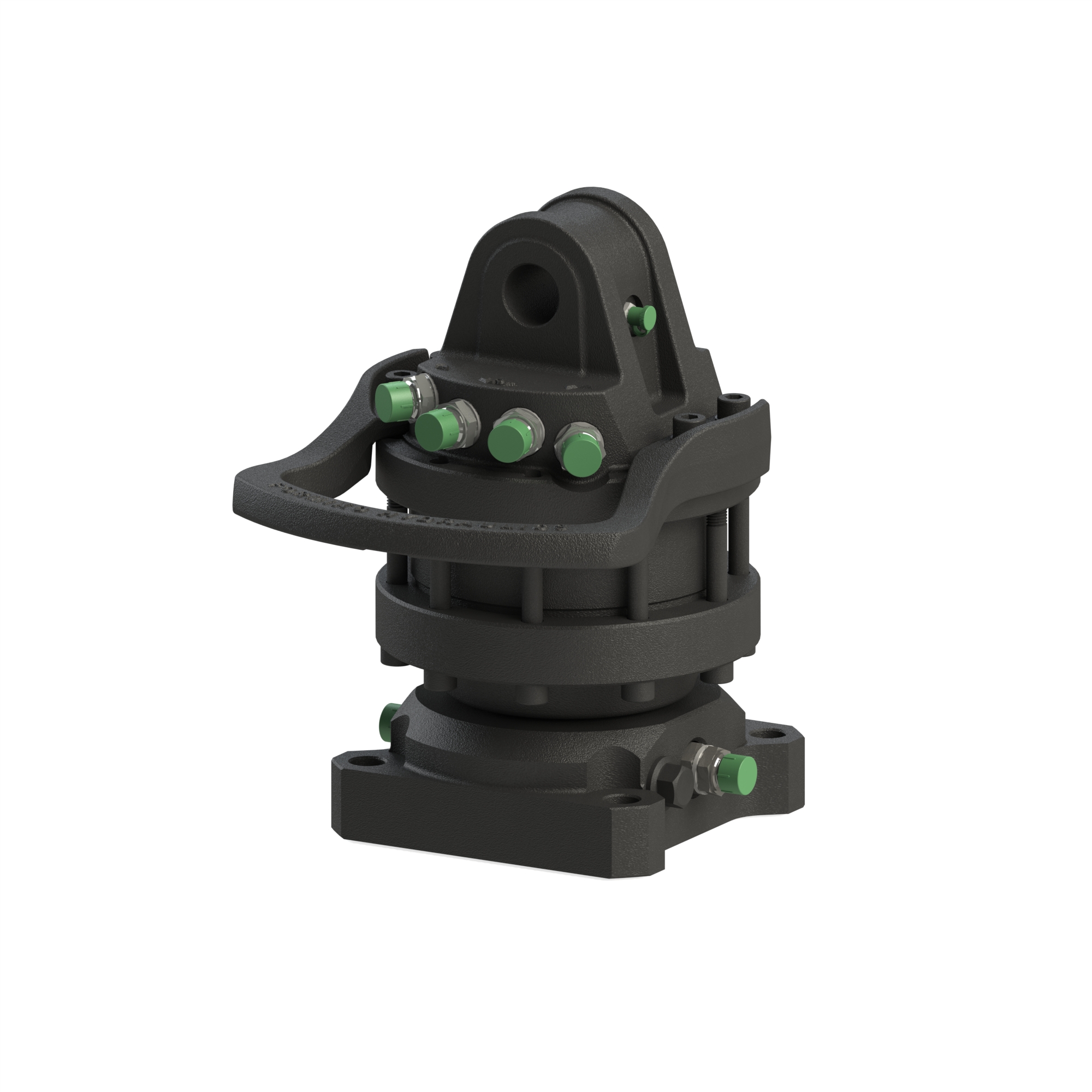

FHR 5.5SF

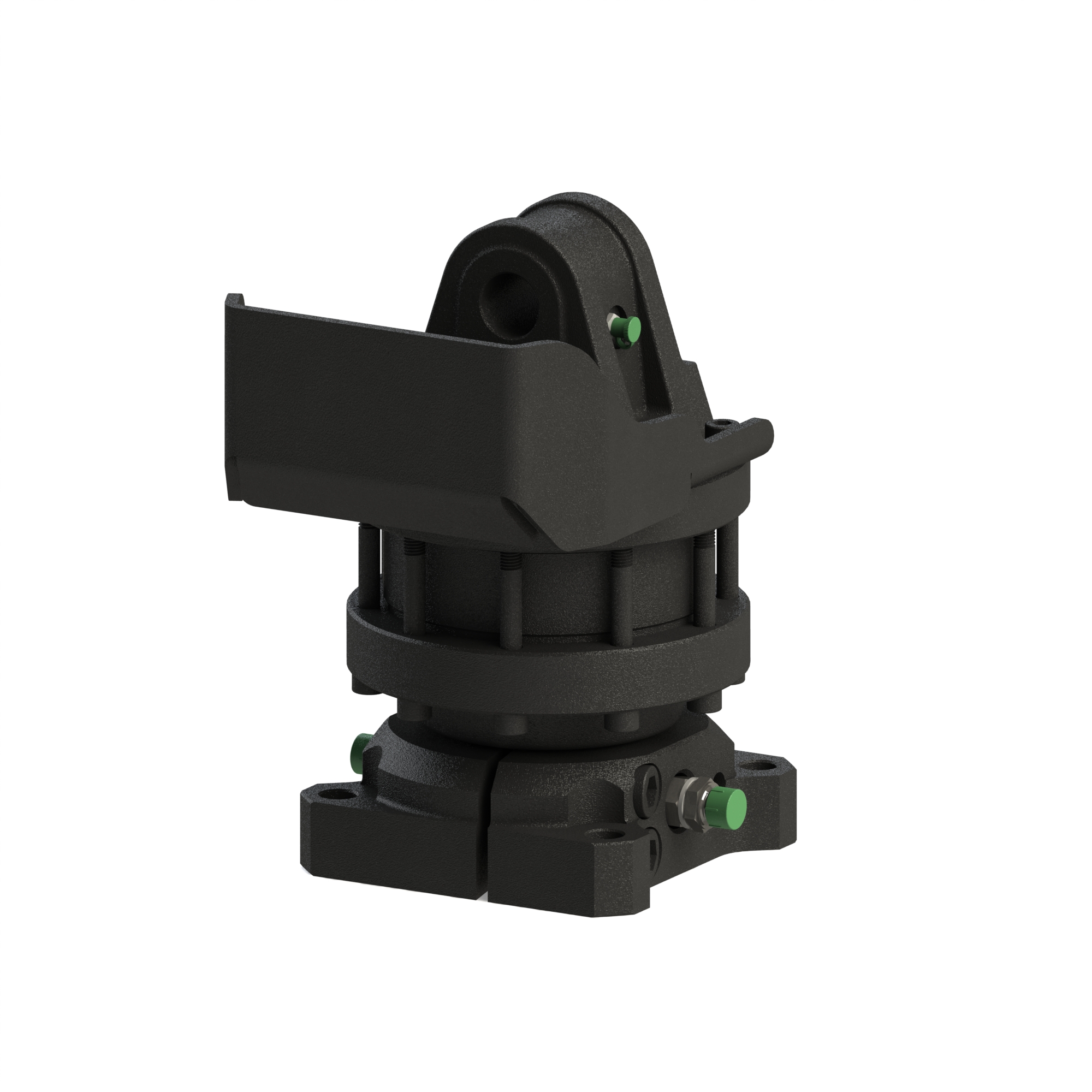

FHR 5.5SFH

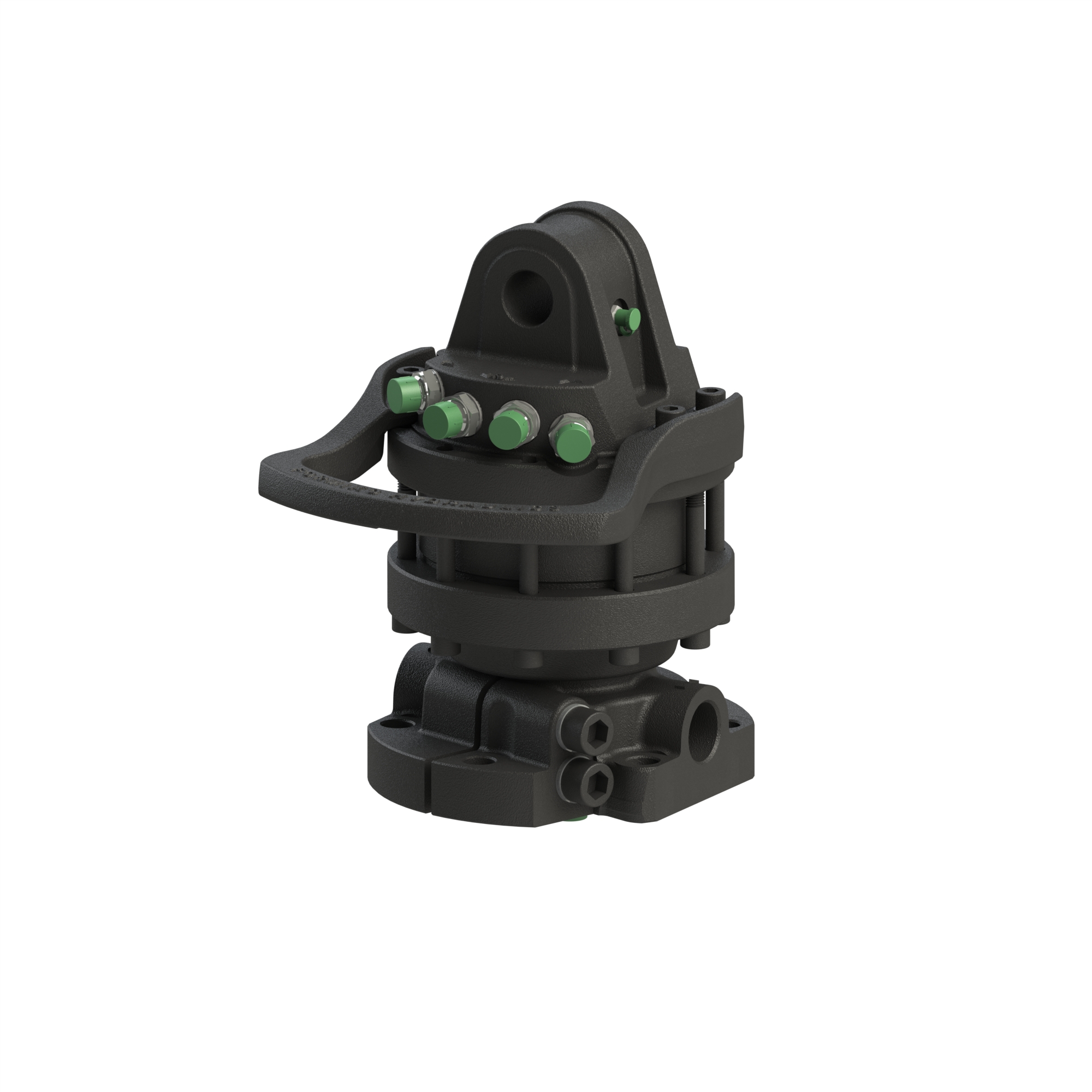

FHR 5.5F6

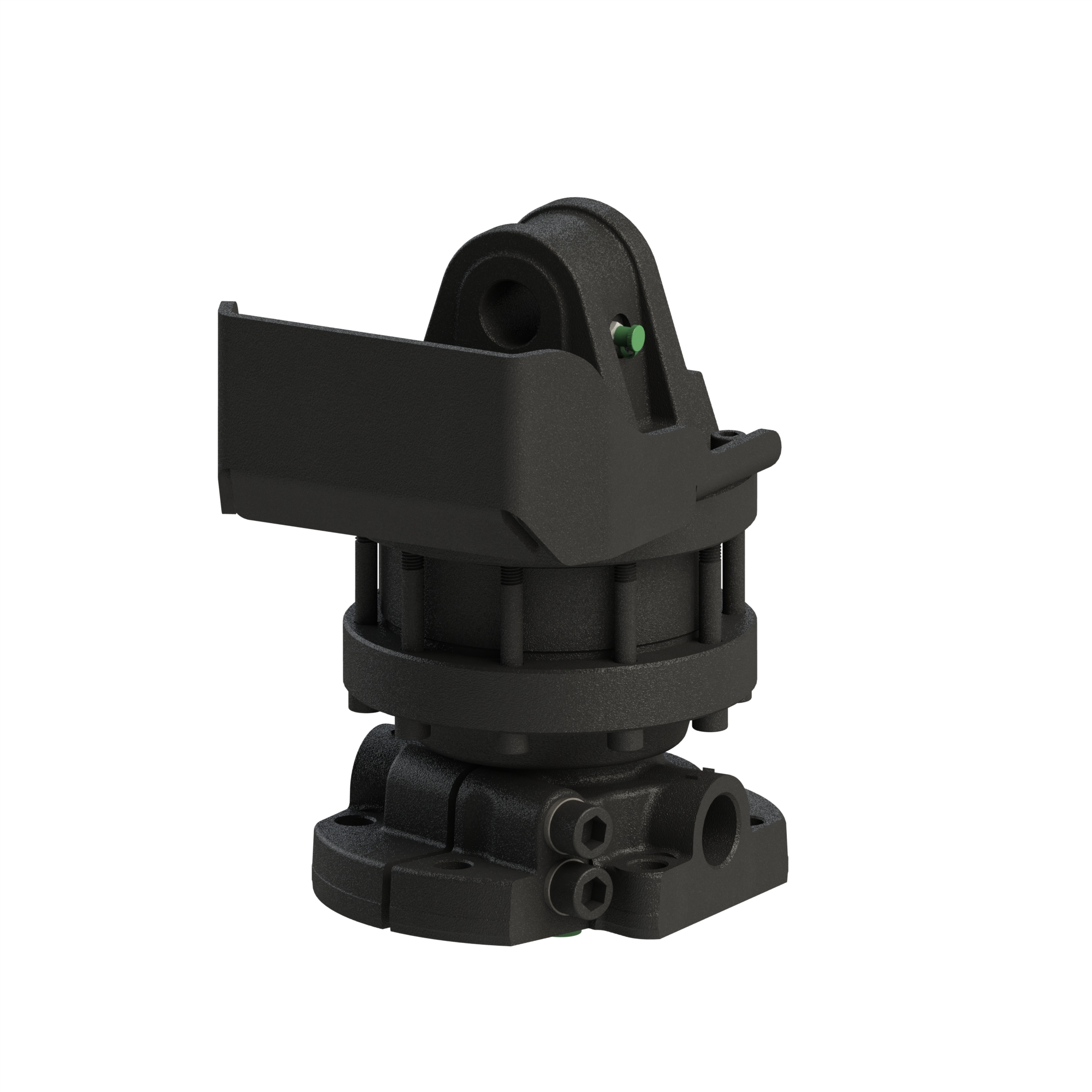

FHR 5.5F6H

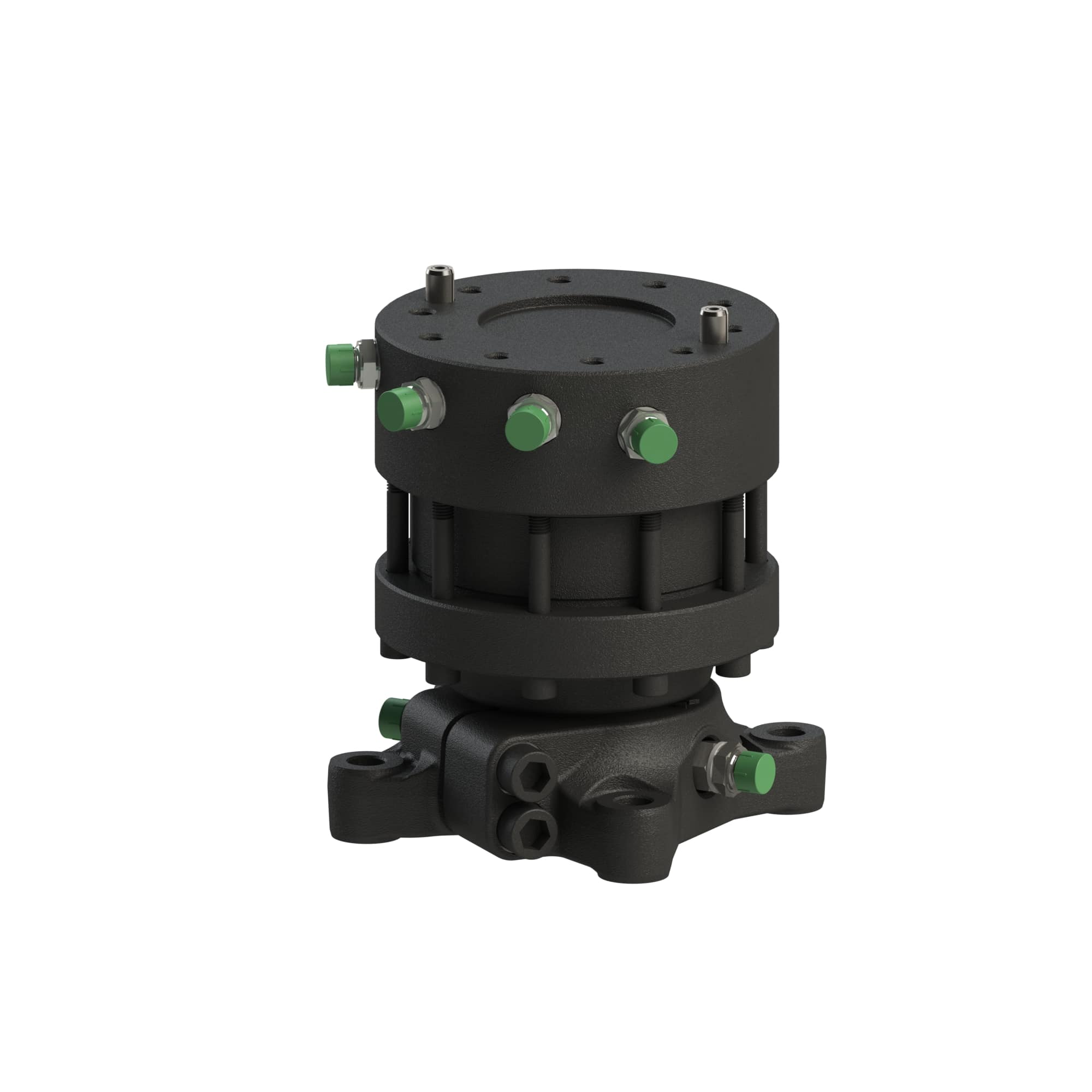

FHR 5.5FF140

Model: FHR 4.5L68

Model FHR 4.5L68
Safe Working Load5500 kg
Maximum Static Axial Load55 kN
Maximum Dynamic Axial Load30 kN
Maximum Torque1300 Nm
Working Pressure250 bar
Oil Flow20 L/min
Hydraulic PortsG 3/8"
Upper Pin Diameter30 mm
Lower Pin Diameter30 mm
Shaft Diameter69 mm
Weight 28 kg
Mount Type Roller Bearing Mount

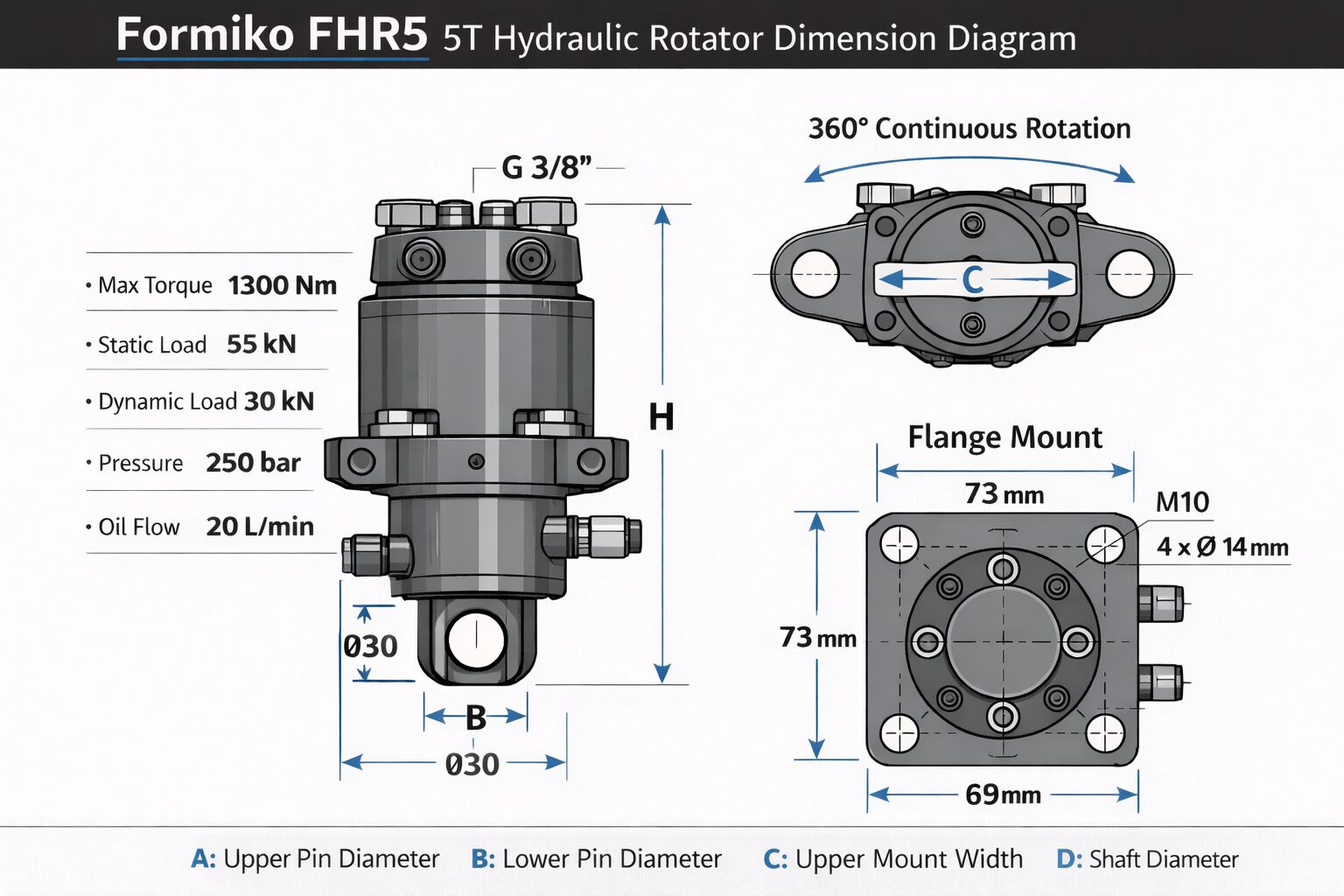

Diagram
