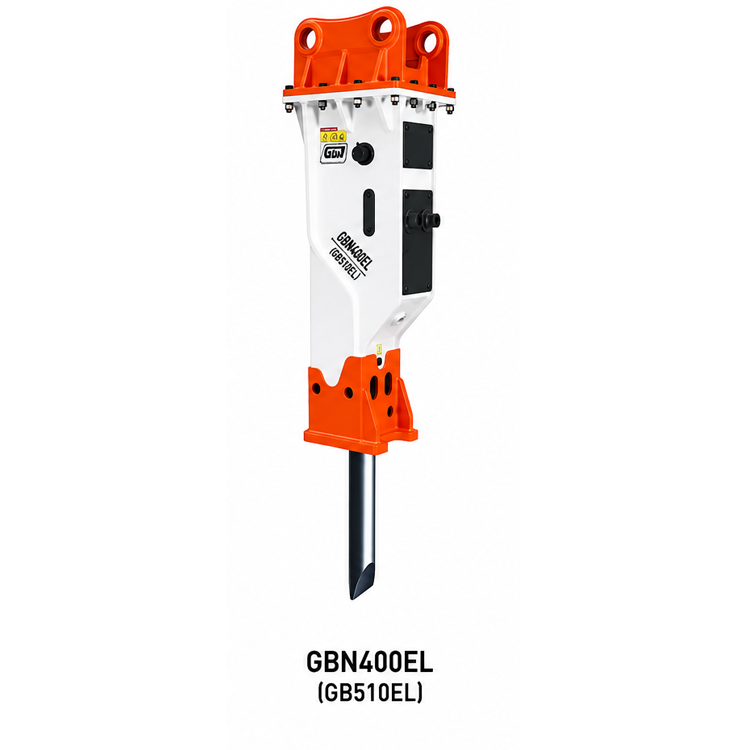

The GBN400EL hydraulic breaker is a large heavy-duty E-Series hydraulic breaker engineered for heavy demolition, hard rock breaking, quarrying, and primary site excavation. Featuring a massive 2,800 kg silenced operating weight and a large 160 mm tool diameter, the GBN400EL is designed for heavy excavators in the 33–50 ton range.
The GBN400EL is engineered for heavy production work on large excavators. As part of the GB E-Series, it combines high hydraulic reliability with an extraordinary 5,777 Joules (4,261 ft/lb) of impact energy.
With a substantial 2,800 kg (6,173 lb) silenced operating weight, the GBN400EL provides the mass necessary to handle massive breaking forces on carriers from 33 to 50 tons.
The breaker is equipped with a large 160 mm moil-type tool (weighing 213 kg), delivering robust strength and durability in tough rock, concrete foundations, and heavy excavation projects.
The GBN400EL operates at an impact rate of 260–450 blows per minute, optimizing blow energy and cycle frequency for high hourly material yield.
Operating at a breaker pressure of 160–180 bar, it requires a hydraulic oil flow of 180–250 L/min. Carrier hydraulic output should be verified to match these specifications before setup.
Featuring an accumulator pressure rating of 60 bar, the GBN400EL assists power strokes while absorbing hydraulic shock load to shield carrier systems during continuous heavy breaking.
Built for heavy-duty structural demolition involving heavily reinforced concrete, thick foundations, retaining walls, and industrial sites.
With 5,777 Joules of impact energy and a 160 mm tool, the GBN400EL excels at primary and secondary rock breaking in quarries and open-pit mining.
Provides power for deep utility trenching, road cuts, rock excavation, and large-scale infrastructure projects.
Engineered specifically for heavy production excavators in the 33–50 ton range (40-ton recommended class).
| Specification | GBN400EL |
|---|---|
| Series | E-Series |
| Base Model | GB510E |
| Breaker Model | GBN400EL / GBN400E |
| Configuration | Silenced |
| Operating Weight – Silenced | 2,800 kg / 6,173 lb |
| Operating Weight – Open Top | 2,950 kg / 6,504 lb |
| Main Body Weight | 1,228 kg |
| Tool Type | Moil |
| Tool Weight | 213 kg |
| Tool Diameter | 160 mm |
| Operating Pressure – Breaker | 160–180 bar / 2,320–2,610 psi |
| Setting Pressure – Machine | 220 bar / 3,190 psi |
| Impact Rate | 260–450 bpm |
| Accumulator Pressure (N2 Gas) | 60 bar / 870 psi |
| Back Head Pressure (N2 Gas) | 6 bar / 87 psi |
| Required Oil Flow | 180–250 L/min / 47.5–66 GPM |
| Minimum Excavator Size | 33 tons |
| Maximum Excavator Size | 50 tons |
| Recommended / Suitable Excavator Class | 40 tons |
| Impact Energy | 5,777 J / 4,261 ft/lb |
Important: Hydraulic flow and pressure requirements should be verified against the excavator manufacturer's specifications before installation. Actual operating conditions may vary depending on the carrier machine, hydraulic system, tooling and application. Always ensure that the breaker is correctly matched to the excavator before operation.
