nox Sensors
NOXGeo
SENSOR TECHNOLOGY

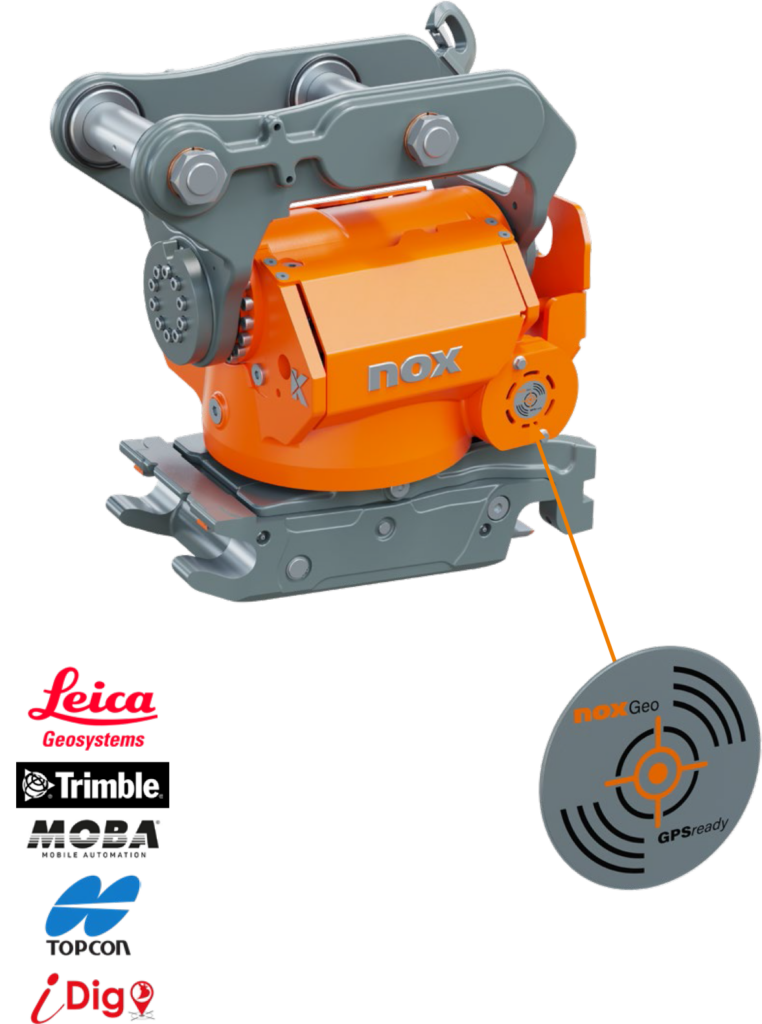

With the NOXGeo, sensors send position data to the digital control at the NOXprop+ touchscreen in the driver‘s cabin. Thereby, the attachments are connected to the digital technology of the excavator/machine control. The NOXGeo system also allows the functionality to interface with 2D/3D systems of all common manufacturers thanks to the open system.
GPS
INTEGRATION OF 2D/3D SYSTEMS
It is possible to integrate various makes of GPS into the NOX control system. Thanks to the GPS you can use the excavator to collect and define points. Connect the computer of the machine via the integrated GSM-modem to get fast support and transfer data. With our 3D-system you can take the last step towards machine control.
NOXGeo
SENSOR TECHNOLOGY
The exact position of the tiltrotator‘s tilt movement and the attachment is transferred directly to the control display in the driver‘s cabin by means of the tilt sensor.
ROTATION SENSOR
ROTATION MOVEMENT
The KINSHOFER rotation sensor shows the exact position of the tiltrotator and the attachment during rotation. The determined data is transferred directly to the control display in the driver‘s cabin.
NOXGeo
Sensor technology
By means of the sensors, the manual staking out of the work area by a person is reduced, as the precise dimensioning is shown on the display in the driver‘s cabin. The controlled and exact excavation of the required amount results in large time savings and reduced fuel consumption. Furthermore, the attachments and the carrier wear less.
KINSHOFER equips the NOX Tiltrotator with the rotation sensor, the tilt sensor comes from the 2D/3D system provider. In combination with certain excavator systems and makes, the NOXGeo system allows for an auto-turning function.
KINSHOFER equips the NOX Tiltrotator with the rotation sensor, the tilt sensor comes from the 2D/3D system provider. In combination with certain excavator systems and makes, the NOXGeo system allows for an auto-turning function.
SYSTEM:
SMARTTAG
The SmartTag is a microcontrol-based tool with a communication functionality via mobile radio and an internal storage to locally back up operating information, error information, etc. The unit only measures 15 cm, it is waterproof, shock resistant, thermo-stable from -25 up to 80 °C, shockproof and has an internal energy supply for approx. 2 years.
NETWORKING:
DATA EXCHANGE

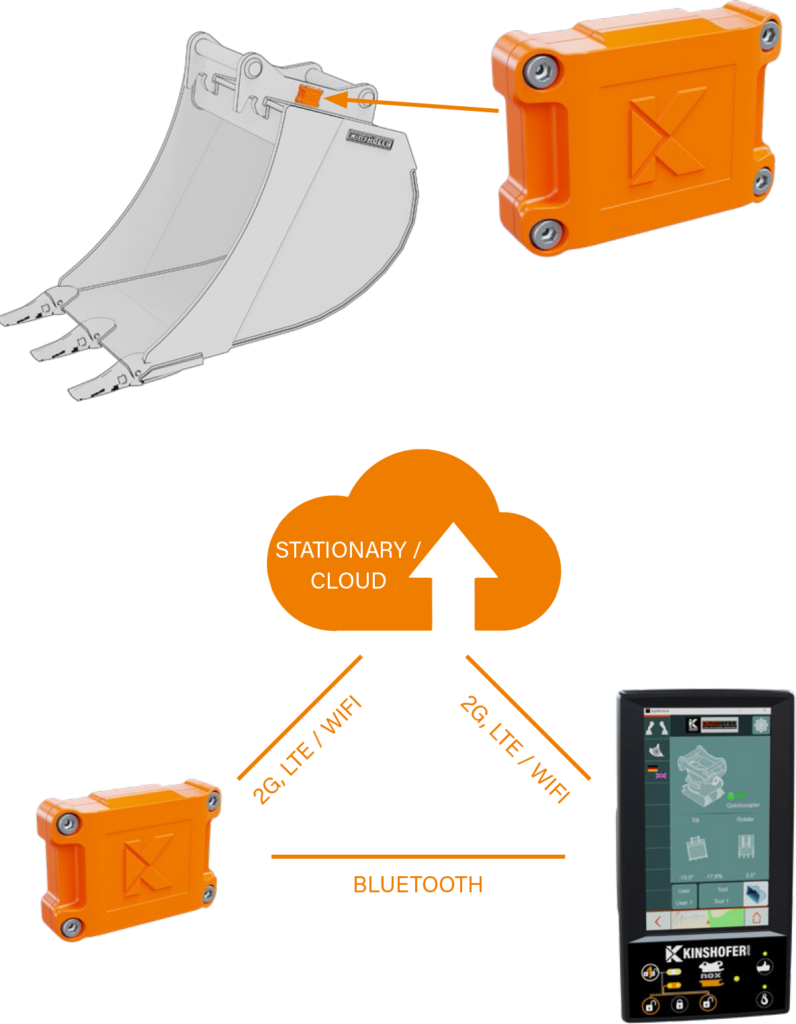

The tool management system consists of a SmartTag at the attachment as well as its interconnection with the terminal and/or cloud. The SmartTag measures vibrations and positions of the attachment. This information is directly transferred to the cloud via LTE and is thus independent from the machine. From there, the data can be read with every terminal device. The way, frequency and send release of the data exchange can be set individually.
SMARTTAG
FUNCTIONS
GPS-TRACKING
The function GPS-tracking is used to detect the location of an attachment by entitled persons.
DIGITAL TYPE PLATE
The digital type plate provides the identical data as does the mechanical type plate like serial number, name and weight, as well as operating pressure.
PREVENTIVE MAINTENANCE
This function is used for issuing a service recommendation in which a preventive service for the respective attachment will be recommended in order to prevent downtimes.
FLEET MANAGEMENT CONNECTION
ACCELERATION MEASUREMENT
This function of the three-axle acceleration sensors is the detection of the attachment‘s position as well as of shock values.
BLUETOOTH-CONNECTIVITY
for tool recognition. THEFT PROTECTION This function shall be used to find an attachment by locating.
WORKING HOURS
Especially important for rental companies – working hours can be recorded and reported.
The function GPS-tracking is used to detect the location of an attachment by entitled persons.
DIGITAL TYPE PLATE
The digital type plate provides the identical data as does the mechanical type plate like serial number, name and weight, as well as operating pressure.
PREVENTIVE MAINTENANCE
This function is used for issuing a service recommendation in which a preventive service for the respective attachment will be recommended in order to prevent downtimes.
FLEET MANAGEMENT CONNECTION
ACCELERATION MEASUREMENT
This function of the three-axle acceleration sensors is the detection of the attachment‘s position as well as of shock values.
BLUETOOTH-CONNECTIVITY
for tool recognition. THEFT PROTECTION This function shall be used to find an attachment by locating.
WORKING HOURS
Especially important for rental companies – working hours can be recorded and reported.
SmartTag
Tooltracker
The SmartTag and the cloud-based tool management support the driver and operator with the efficient choice and detection of suitable tools for each special task. Operators have their complete fleet under control and thus avoid downtimes and maximize their tool workload.
The SmartTag combines two up to now separated functions in one sensor: tool detection and tracking. As digital type plate, the tool tracker files information on geometries, name, manufacturer, year, ID and operation (e.g. required operating pressure of attachment). At the same time, it gathers, analyzes and detects operating hours, cycles and work processes. Thansk to GPS position and timestamp, you receive data like when and where an attachment had been put down and how it had been used.
The SmartTag combines two up to now separated functions in one sensor: tool detection and tracking. As digital type plate, the tool tracker files information on geometries, name, manufacturer, year, ID and operation (e.g. required operating pressure of attachment). At the same time, it gathers, analyzes and detects operating hours, cycles and work processes. Thansk to GPS position and timestamp, you receive data like when and where an attachment had been put down and how it had been used.
