Description
Our special Auger Torque Package Deal suitable for excavators from 2.5ton to 4ton. We are offering an all-in-one package deal ideal for small excavators in the 2.5ton to 4ton range.
Included in our package deal:
- Auger Torque 3500MAX Earth Drill
- Double Pin Cradle Hitch – Fabricated to suit your excavator
- Tungsten Auger up to 450mm
- 250mm Log Splitter Cone
- Pair of 1/2″ BSP Hydraulic Hoses – no couplers
All you require is a pair of hydraulic couplings to suit your machine This 3500MAX Auger Package deal would be ideal for the following excavators (as a guideline): JCB 8025 JCB 8026 JCB 8030 JCB 8035 Kubota KX027 Kubota U27 Kubota KX030 Kubota U36 Takeuchi TB230 Takeuchi TB225 Neuson ET24 Neuson ET35 Any excavator from 2.5t to 4t weight class
Earth Drill Specifications
3500MAX Earth Drill
Oil Pressure Range: 80 – 240 Bar
Torque Range: 1,205 – 3,614 Nm
Oil Flow Range: 40 – 85 lpm
Speed Range: 42 – 90 rpm
Output Shaft: 65mm Round
Height: 665mm
Width: 244 mm
Weight: 73kg
Technical Specifications – PDF Download
3500MAX Earth Drill Technical Specs
3500MAX Earth Drill Speed Chart
3500MAX Earth Drill Torque Chart
Auger Specifications
S4 Tungsten Auger
Overall length: 1.2m
Fully flighted: 950mm
Diameter: Up to 300mm
Hub Size: 65mm Round
Overall Length given includes wear parts.
All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System.
Hitch Specifications
Double Pin Cradle Hitch
The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch.
Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time
Locking Kit
Double Pin Cradle Hitch – Lock Kit
The locking kit included with the package offer is an additional “add-on” component to our standard crale hitches. This allows the user to “lock” the drive unit and splitter cone to the excavator mount enabling the log splitter attachment to work in the same manner as a dedicated splitter such as a Lasco or Black Splitter.
This gives the user the same log splitting capabilities as a dedicated unit with the advantgae of increaed torque for splitting wood the the ability to quickly change to an auger attachment.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch.
Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time
Splitter Cone

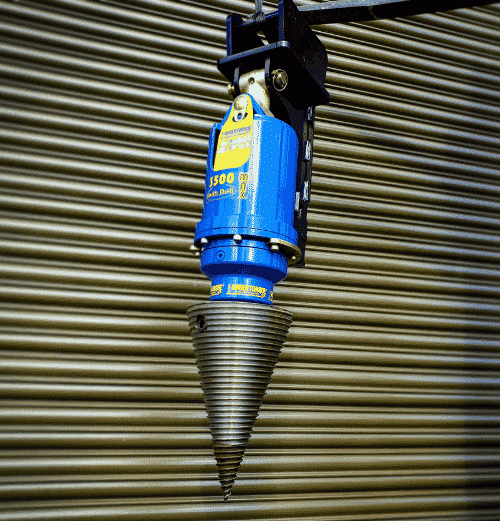

MVE Log Splitter Cone – 250mm Diameter
- Suitable for Excavators from 2.5-10 Tonnes and skidsteer Loaders
- Replaceable tip, cone supplied with 1 tip as standard
- 250mm diameter
- Fits all S5 Drive Units with 75mm square output shaft
Saunders Tree Services –
The cone splitter works great, fast enough and powerful enough, tried it out on some big ash logs, breaking down big timber is what we will do most of.
Auger 450mm does well in clay, struggles with Cotswold brash, will be fine for us planting small trees.
“Very Pleased”
Thank you for your help and advice, all appreciated.
Excavator make and model: Wacker Neuson 2404 VDS
Anonymous (verified owner) –
Mouse Valley is very efficient and ‘does what it says on the tin’! I have yet to try the auger but the cone splitter works very well. All credit to both companies.
Salt Carpentry –
Thank you for the delivery of augers. Packaged extremely well. Used the auger this weekend and well impressed with it!
Excavator make and model: Sany SY27 with Auger Torque 3500MAX and range of Tungsten Augers / Log Splitting Cone
Kris Armour –
Thanks for the great service
Machine Make and Model : Takeuchi TB230 with Auger Torque 3500MAX and Log Splitter
