Our Auger Torque package deal suitable for excavators from 1.5ton to 2.8ton. We are offering an all-in-one auger attachment solution for small excavators in the 1.5ton to 2.8ton range.
All you require is a pair of hydraulic couplings to suit your machine
The X2500 package is ideally suited for the following excavators (as a guideline):
JCB 8015
JCB 8018
Kubota KX014
Kubota KX016
Takeuchi TB016
Takeuchi TB23R
Takeuchi TB216
Terex TC20
Any excavator in the 1.5t to 2.8t weight class

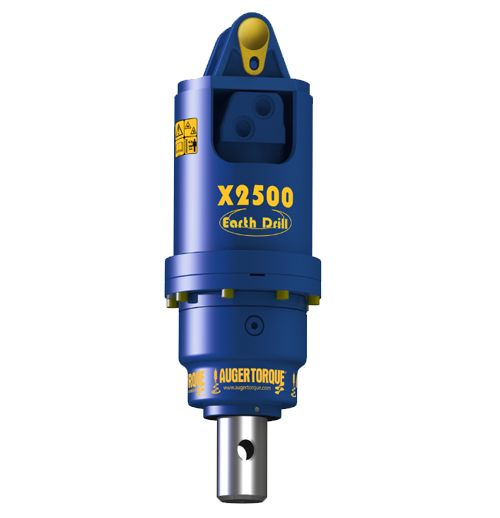

X2500 Earth Drill
Mini excavators 1.5T to 2.8T.
Oil Pressure Range: 70 – 240 Bar
Torque Range: 830 – 2847 Nm
Oil Flow Range: 27 – 65 lpm
Speed Range: 36 – 87 rpm
Output Shaft: 65mm Round
Height: 585 mm
Width: 200 mm
Weight: 48 kg
Technical Specifications – PDF Download
S4 Tungsten Auger
Overall length: 1.2m
Fully flighted: 950mm
Diameter: Up to 300mm
Hub Size: 65mm Round
Overall Length given includes wear parts.
All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System.
Single Pin Hitch
The Single Pin Earth Drill hitch is the most basic and most low cost hitch option Auger Torque offers and is suitable for excavators and backhoes. Available for all drives in our range from the Earth Drill 1200 all the way to the Earth Drill 50,000MAX.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style of hitch. When ordering this hitch please supply your pin diameter. Not compatible with hydraulic quick hitches.
This style hitch is generaly in stock at all times. Please contact us to confirm
