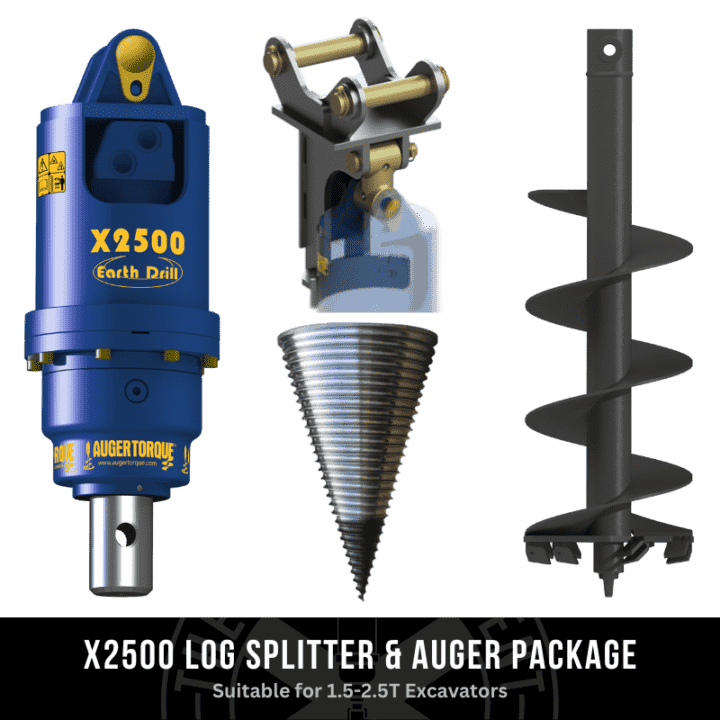

Our Auger Torque log splitter package deal suitable for excavators from 1.5ton to 2.8ton. We are offering an all-in-one auger and log splitter attachment solution for small excavators in the 1.5ton to 2.8ton range.
All you require is a pair of hydraulic couplings to suit your machine.
The X2500 package is ideally suited for the following excavators (as a guideline):
JCB 8015
JCB 8018
Kubota KX014
Kubota KX016
Takeuchi TB016
Takeuchi TB23R
Takeuchi TB216
Terex TC20
Any excavator in the 1.5t to 2.8t weight class
Auger Torque X2500 Earth Drill
Mini excavators 1.5T to 2.8T.
Oil Pressure Range: 70 – 240 Bar
Torque Range: 830 – 2847 Nm
Oil Flow Range: 27 – 65 lpm
Speed Range: 36 – 87 rpm
Output Shaft: 65mm Round
Height: 585 mm
Width: 200 mm
Weight: 48 kg
Technical Specifications – PDF Download
S4 Tungsten Auger
Overall length: 1.2m
Fully flighted: 950mm
Diameter: Up to 300mm
Hub Size: 65mm Round
Overall Length given includes wear parts.
All Auger Torque Augers are built from high grade steel and incorporate many features that will allow you to work more efficiently and will make your job easier. Shallow pitch flights ensure they will cut with maximum efficiency and heavy duty tubes, constant spiral cut as well Auger Torques unique Shock Lock™ Tooth Locking System.
Double Pin Cradle Hitch
The Double Pin Cradle Earth Drill hitch is to suit standard and quick hitch solutions on most excavators & backhoes. The use of a Cradle hitch is recommended by Auger Torque as it will eliminate Auger swing during dirt shake off, will enable you to safely transport your Earth Drill and Auger on site and will also help you in lining up your holes with precision.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch.
Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time
Double Pin Cradle Hitch – Lock Kit
The locking kit included with the package offer is an additional “add-on” component to our standard crale hitches. This allows the user to “lock” the drive unit and splitter cone to the excavator mount enabling the log splitter attachment to work in the same manner as a dedicated splitter such as a Lasco or Black Splitter.
This gives the user the same log splitting capabilities as a dedicated unit with the advantgae of increaed torque for splitting wood the the ability to quickly change to an auger attachment.
Just like all Auger Torque products only the highest grade steel is used in the fabrication of this style hitch.
Please note all hitches are made to order and can sometimes carry a lead time of 3/4 days. Please contact us for exact lead time
MVE Log Splitter Cone – 200mm Diameter
