CM Modular System

Overview

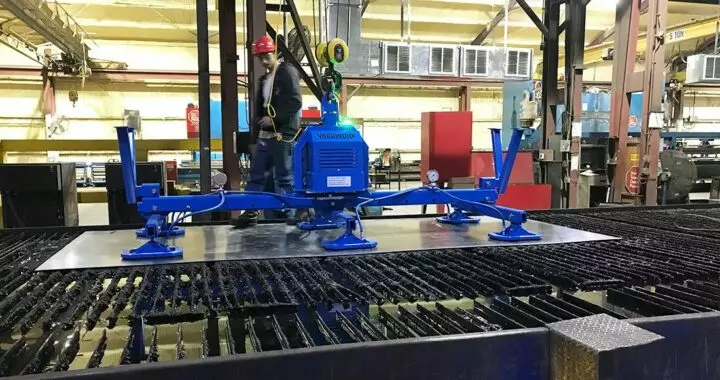

Vacuworx has adapted the CM 3 E VACUUM LIFTING SYSTEM to be a heavy-duty manufacturing workhorse. The system features a lift capacity of 6,600 pounds (3 tonne), and is available in single phase or 3 phase operation. Standard lifters feature a 64 inch (1,625.6 mm) long spreader bar, with custom options available to better fit our customer’s needs.

MAINLY USED IN

Manufacturing

LIFTING CAPACITY

6,600 lb (3 tonne)

HOST MACHINE

Cranes

Lift Capacity Weight (kg) LxWxH (mm)

CM3

6,600 lb (3 tonne)

304 lb (138 kg)

L 23” (584 mm) x H 25” (635 mm) x W 28” (711 mm)

Base unit includes picking eye and removable storage legs (pad beam, pads and mounting assembly sold separately).
Lift Capacity (kg) Weight (kg) LxWxH (mm)

CM-2424

3,463 lb (1,571 kg)

97.6 lb (44.2 kg)

24” x 24” (610x610 mm) inner/28” x 28” (711x711 mm) outer

CM-3030

5,531 lb (2,500 kg)

133.5 lb (60.5 kg)

30” x 30” (762x762 mm) inner/34” x 34” (864x864 mm) outer

CM-3636

8,060 lb (3,656 kg)

176.4 lb (80 kg)

36” x 36” (914x914 mm) inner/40” x 40” (1016x1016 mm) outer

PT3000-700A

HLOK Tough Seal™, 10 ft (3 m)

PT7401-002

SL/CM Vacuum Filter Element

PT7600-100

SL/CM 12V Rechargeable Battery

PT7600-025A

SL/CM Battery Charger

PT8300-500A

SL/CM Mounting Assembly for Mini Skid Steer (side mount)

PT8301-100A

Pad Beam for Dual or Single Pad Assembly

PT8301-110A

Pad Beam for Single Pad Assembly
