Weight Class: 2 - 3 Tons
Engineered for excavators in the 2.0 – 3.0 Tonne class

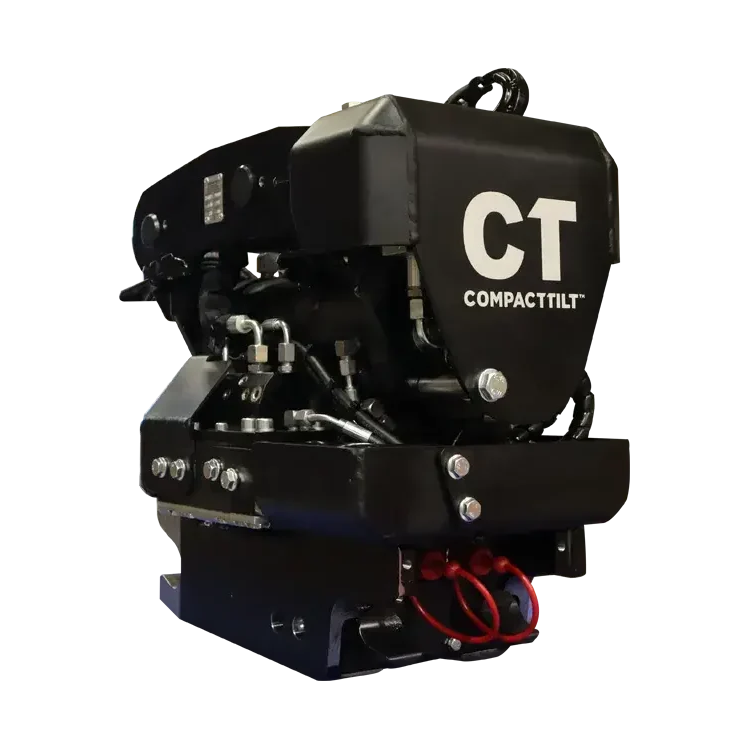

Maximize your job site efficiency with the high-performance Compacttilt™ CTR3. Designed specifically for 2.0 to 3.0-tonne mini excavators, it delivers continuous 360° rotation and up to 2x50° tilt capabilities. Featuring Compacttilt's signature cylinder-free motor technology, the CTR3 ensures maximum breakout force, zero exposed cylinder risk, and exceptional maneuverability in tight urban spaces.
No bulky exterior tilt cylinders to snag on trench walls or block operator visibility, allowing unhindered digging near walls and utilities.
At just 80 kg with a low build height, it minimizes machine tipping torque while retaining ultimate digging and lifting forces.
Seamlessly position buckets, grapples, and hydraulic attachments at any angle without repositioning your excavator tracks.
Factory configured for S30-180 and S40 quick coupler systems to make attachment changes fast, secure, and effortless.
| Recommended Machine Size | 2.0 - 3.0 Tonnes |
| Unit Weight (incl. hitch & valve block) | 80 kg |
| Overall Build Height | From 285 mm |
| Overall Width | 280 mm |
| Total Tilt Angle | 100° (2 x 50°) |
| Rotation Capacity | 360° Infinite Continuous |
| Max Braking Torque | 18.5 kNm |
| Extra Auxiliary Hydraulic Outlet | 1 x (1/4") |
| Quick Coupler Standards | S30-180, S40 |
