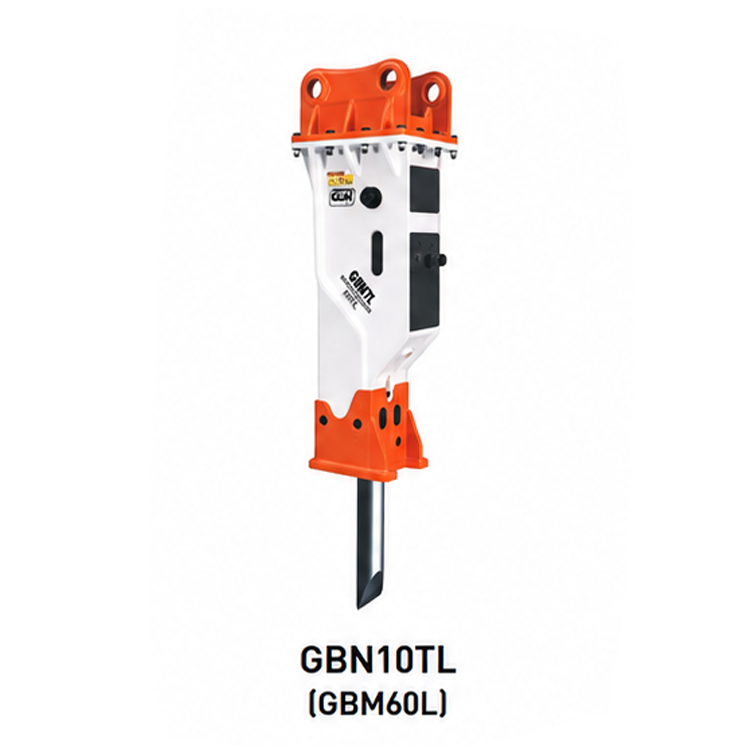

The GBN10TL hydraulic breaker, also identified as the GBM60L, is a compact T-Series hydraulic breaker designed for smaller excavators and light-duty demolition and construction applications. Its silenced configuration provides a compact and practical solution for operators who need reliable hydraulic impact performance on machines in the 0.8 to 2.5 ton class.
The GBN10TL is engineered for operators who need a compact hydraulic breaker without moving into a larger, heavier attachment class. With a 40 mm moil-type tool, the breaker delivers an impact energy of 157 joules (116 ft-lb) and an impact rate of up to 1,400 blows per minute.
The silenced breaker has an operating weight of 135 kg (298 lb), making it suitable for compact excavators. The manufacturer specifies a suitable excavator range of 0.8 to 2.5 tons, with approximately 1 ton listed as the suitable operating class.
The GBN10TL requires a hydraulic oil flow of 15–30 L/min and operates at a breaker pressure range of 80–100 bar (1,160–1,450 psi). This makes it important to match the breaker to an excavator with compatible hydraulic flow and pressure settings.
Suitable for smaller demolition tasks where a compact hydraulic breaker is preferred for improved attachment compatibility and maneuverability.
Designed for compact excavator applications involving breaking and impact work on construction sites.
The 40 mm tool and 157 J impact energy provide a practical configuration for lighter concrete and masonry breaking applications.
Designed around excavators in the 0.8–2.5 ton range, making the GBN10TL a compact attachment option for smaller machines.
| Specification | GBN10TL / GBM60L |
|---|---|
| Series | T-Series |
| Base Model | GBM60 |
| Breaker Model | GBN10TL |
| Configuration | Silenced |
| Operating Weight – Silenced (Tool + Machine) | 135 kg / 298 lb |
| Operating Weight – Open Top | 75 kg / 165 lb |
| Main Body Weight | 50 kg |
| Tool Type | Moil |
| Tool Weight | 4 kg |
| Tool Diameter | 40 mm |
| Operating Pressure – Breaker | 80–100 bar / 1,160–1,450 psi |
| Setting Pressure – Machine | 150 bar / 2,175 psi |
| Impact Rate | 800–1,400 bpm |
| Accumulator Pressure | None – No Accumulator |
| Back Head Pressure (N2 Gas) | 14 bar / 203 psi |
| Required Oil Flow | 15–30 L/min / 3.9–7.9 GPM |
| Minimum Excavator Size | 0.8 ton |
| Maximum Excavator Size | 2.5 tons |
| Recommended / Suitable Excavator Class | 1 ton |
| Impact Energy | 157 J / 116 ft-lb |
Important: Hydraulic flow and pressure requirements should be verified against the excavator manufacturer's specifications before installation. Actual attachment operating conditions may vary depending on the carrier machine, hydraulic system, tooling, and application.
