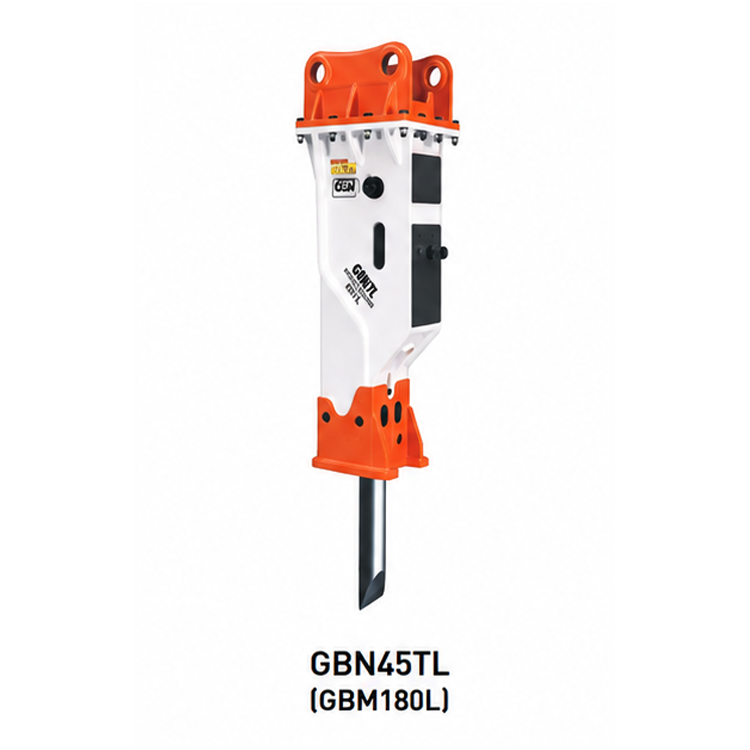

The GBN45TL hydraulic breaker, also identified as the GBM180L, is a powerful silenced T-Series hydraulic breaker designed for compact and mid-size excavators. With a 250 kg operating weight and 60 mm tool, it provides a strong balance of impact power, durability, and carrier compatibility for demanding construction and demolition applications. It is designed for excavators in the 3 to 5.5 ton class.
The GBN45TL is built for operators who need greater impact performance from a breaker that remains suitable for smaller excavators. Its 60 mm moil-type tool delivers an impact energy of 493 joules (364 ft-lb) with an impact rate of 500–1,000 blows per minute.
The silenced breaker has an operating weight of 250 kg (551 lb), making it suitable for excavators in the 3 to 5.5 ton range. The manufacturer lists approximately 5 tons as the suitable operating class.
The GBN45TL requires a hydraulic oil flow of 30–60 L/min and operates at a breaker pressure range of 100–130 bar (1,450–1,885 psi). Proper hydraulic flow and pressure matching should be confirmed with the carrier excavator before installation.
The breaker is supplied with two tools — chisel and moil — along with hoses, couplers, and a hitch bracket manufactured to suit the excavator, providing a ready-to-work attachment package. :contentReference[oaicite:2]{index=2}
Suitable for demanding demolition work where increased impact energy is required while maintaining compatibility with compact and mid-size excavators.
Designed for construction applications involving concrete breaking, masonry removal, structural work, and general hydraulic breaking.
The 60 mm moil-type tool and 493 J impact energy provide substantial breaking performance for suitable concrete, masonry, and other construction materials.
Designed for excavators in the 3–5.5 ton range, with approximately 5 tons listed as the suitable operating class.
| Specification | GBN45TL / GBM180L |
|---|---|
| Series | T-Series |
| Base Model | GBM180 |
| Breaker Model | GBN45TL |
| Configuration | Silenced |
| Operating Weight – Silenced (Tool + Machine) | 250 kg / 551 lb |
| Operating Weight – Open Top | 225 kg / 496 lb |
| Main Body Weight | 112 kg |
| Tool Type | Moil |
| Tool Weight | 12 kg |
| Tool Diameter | 60 mm |
| Operating Pressure – Breaker | 100–130 bar / 1,450–1,885 psi |
| Setting Pressure – Machine | 160 bar / 2,320 psi |
| Impact Rate | 500–1,000 bpm |
| Accumulator Pressure | None – No Accumulator |
| Back Head Pressure (N2 Gas) | 16 bar / 232 psi |
| Required Oil Flow | 30–60 L/min / 7.9–15.8 GPM |
| Minimum Excavator Size | 3 tons |
| Maximum Excavator Size | 5.5 tons |
| Recommended / Suitable Excavator Class | 5 tons |
| Impact Energy | 493 J / 364 ft-lb |
Important: Hydraulic flow and pressure requirements should be verified against the excavator manufacturer's specifications before installation. Actual attachment operating conditions may vary depending on the carrier machine, hydraulic system, tooling, and application.
