Always the right control system depending on the machine‘s hydraulic configuration

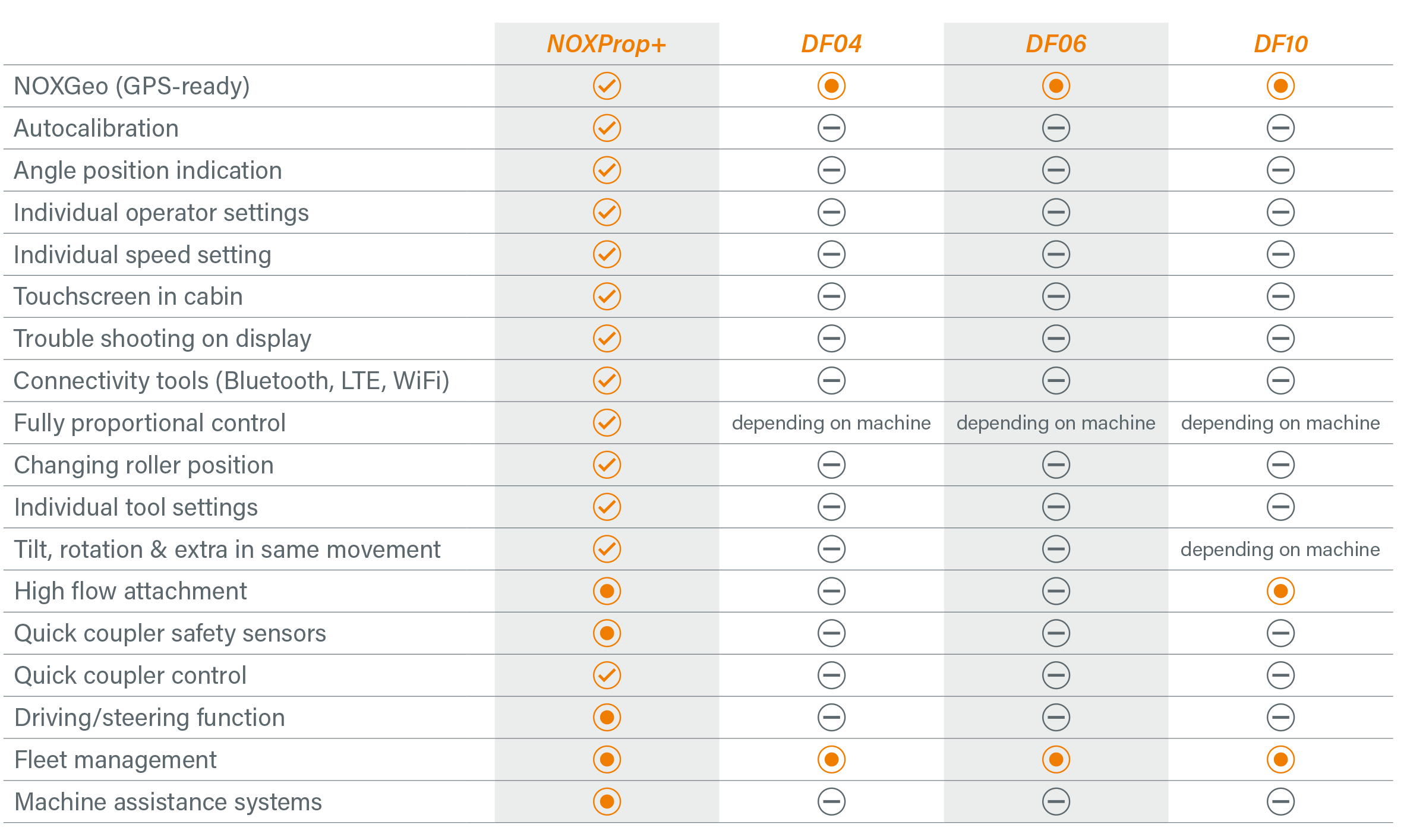

The table provides a quick overview on the different
functions and for which control system they are available.
Short summary on machine requirements:
CSP:
NOXProp+ Hammer/shear circuit
DF04
2 x proportional double-acting circuits
DF06
2 x proportional double-acting circuits (tilt and rotation) 1 x hydraulic quick coupler circuit
DF10
2 x proportional double-acting circuits (tilt and rotation) 1 x hydraulic quick coupler circuit 1 x double-acting high pressure circuit (compactor) 1 x double-acting low pressure circuit (gripper)
CSP:
NOXProp+ Hammer/shear circuit
DF04
2 x proportional double-acting circuits
DF06
2 x proportional double-acting circuits (tilt and rotation) 1 x hydraulic quick coupler circuit
DF10
2 x proportional double-acting circuits (tilt and rotation) 1 x hydraulic quick coupler circuit 1 x double-acting high pressure circuit (compactor) 1 x double-acting low pressure circuit (gripper)
NOXProp+ & NOXProp
CSP - CONTROL SYSTEM

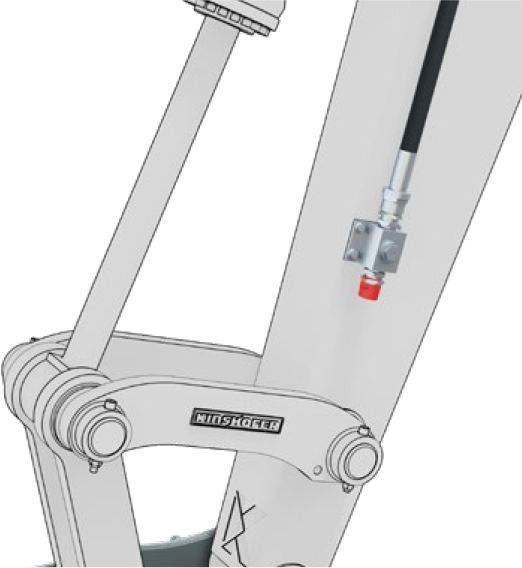

Although this control system only requires one hydraulic function from the excavator, all Tiltrotator functions can be used at the same time. Also functions like steering/driving control, boom swing and dozer blade etc. can be controlled optionally. All functions are controlled proportionally and a separate control system is installed at the excavator. The joysticks of the machine will be replaced by new joysticks provided by KINSHOFER.
KEY FEATURES NOXProp+
NOXProp+

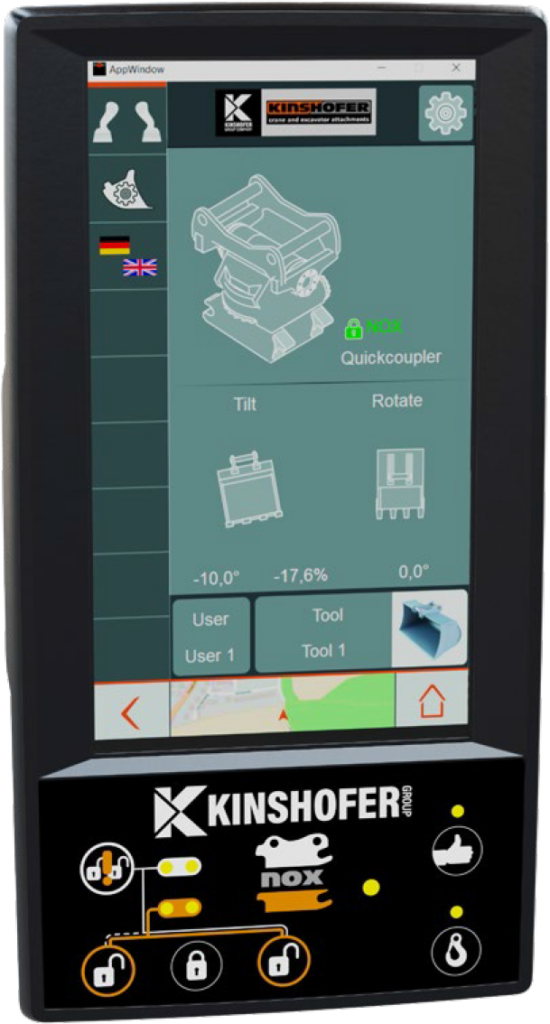

TOUCHSCREEN
MACHINE REQUIREMENTS
CSP - NOXProp+ & NOXProp
NOXProp

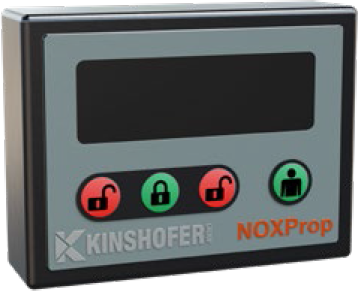

CONTROL UNIT
KEY FEATURES NOXProp
NOXProp+
Control system
The NOXProp+ control system provides more safety and precision. NOX Tiltrotator, quick coupler and attached tools are controlled effectively and conveniently with ergonomic joysticks by the smart NOXProp+. Easily retrofittable for each excavator.
Features are the individual function setting and the easy menu navigation thanks to the corresponding touchscreen. Integrated GPS, LTE, Bluetooth and WiFi link your machine with the digital workplace.
Features are the individual function setting and the easy menu navigation thanks to the corresponding touchscreen. Integrated GPS, LTE, Bluetooth and WiFi link your machine with the digital workplace.

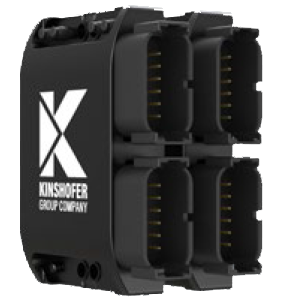

BG-MODULE CONNECTOR
NOXProp+ & NOXProp
CSP - CONTROL SYSTEM
STANDARD-JOYSTICK
FRONT
NOXProp+ & NOXProp
CSP - CONTROL SYSTEM

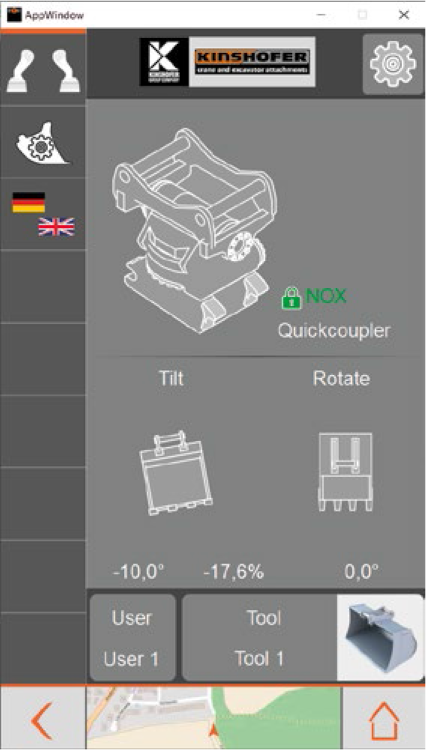

Home display
attachment & quick coupler

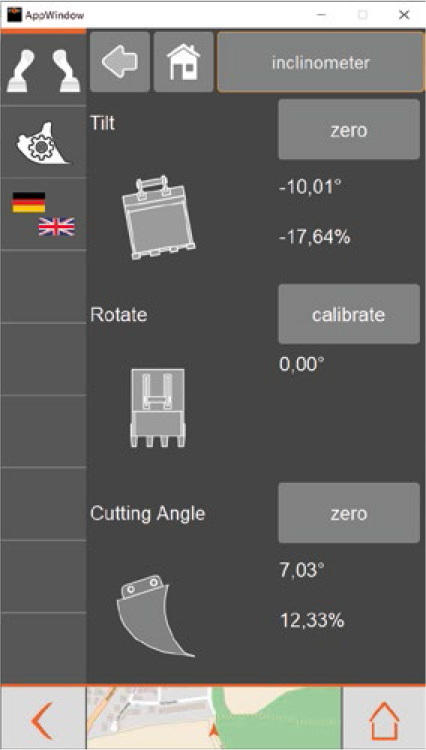

Geometry overview of
attachment and interface to
2D/3D systems

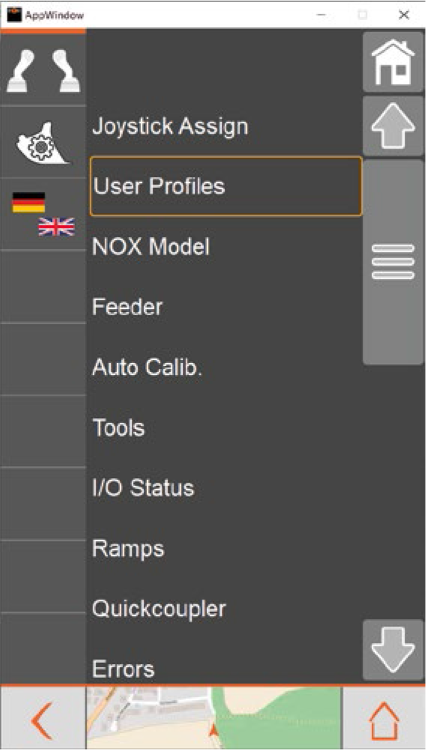

Easy and logical menu
navigation

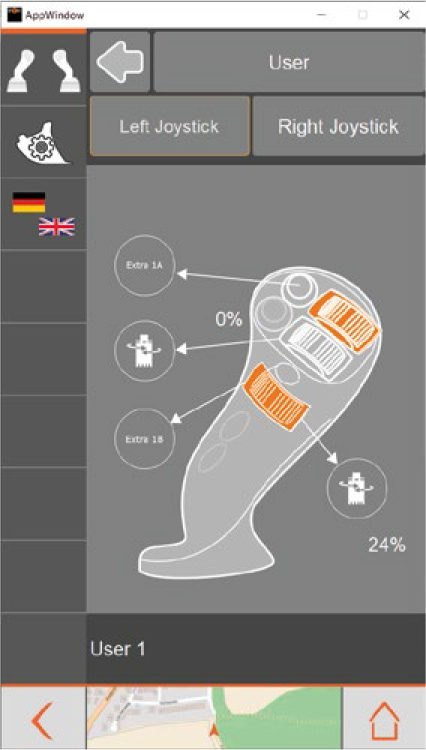

Individual function
configuration of joystick
buttons

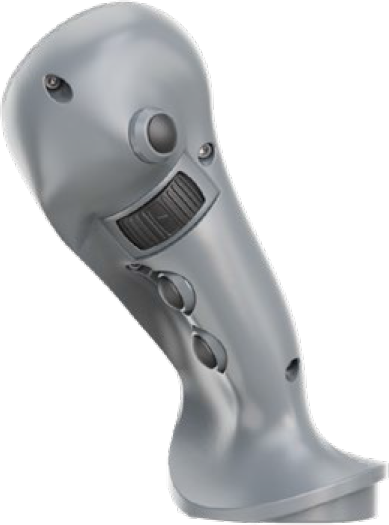

STANDARD-JOYSTICK
BACK

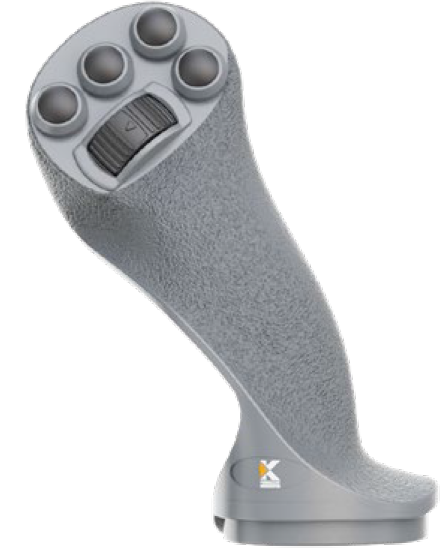

Joysticks

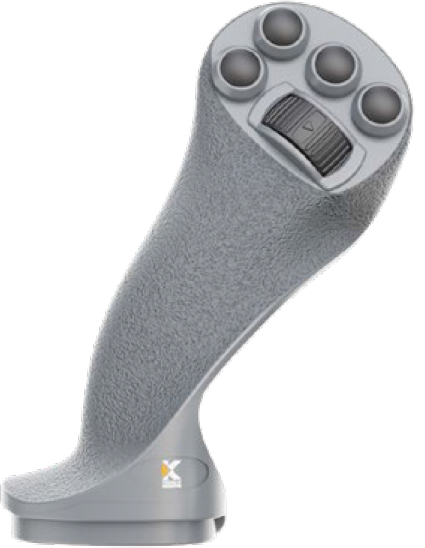

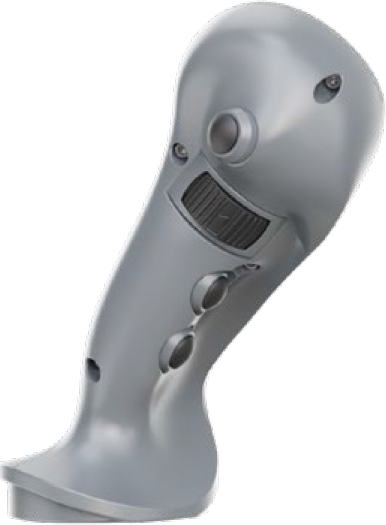

The L8 is the multifunctional ergonomic joystick grip that
has set a new standard with its innovative, functional
design. You can control two roller functions simultaneously
with your thumb and index finger. Up to three rollers can be
installed, two for the thumb and one for the index finger.
On the grip there is room for up to nine buttons, meaning
that most functions can be gathered in a small area.
(Joysticks must be replaced when CSP – NOXProp+ or
NOXProp is installed.)
DF04
CONTROL SYSTEM

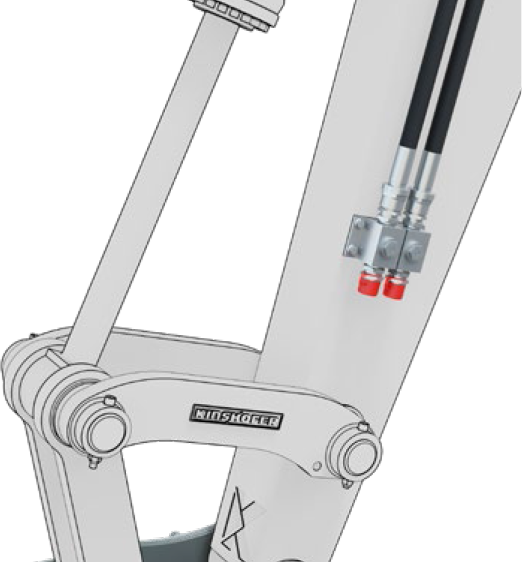

The DF04 control system requires 2 double-acting hydraulic circuits. Only two functions, e.g. rotation and tilting, can be realized simultaneously. In order to control the attachment or the quick coupler, one of the two hydraulic circuits is separated by a switch valve, installed on the NOX Tiltrotator. Therefore, up to two extra functions, e.g. quick coupler, can be realized.
MACHINE REQUIREMENTS FOR DF04

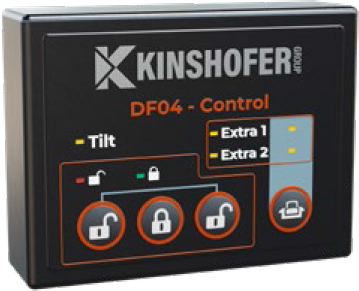

DF04 CONTROL UNIT
DF06
CONTROL SYSTEM

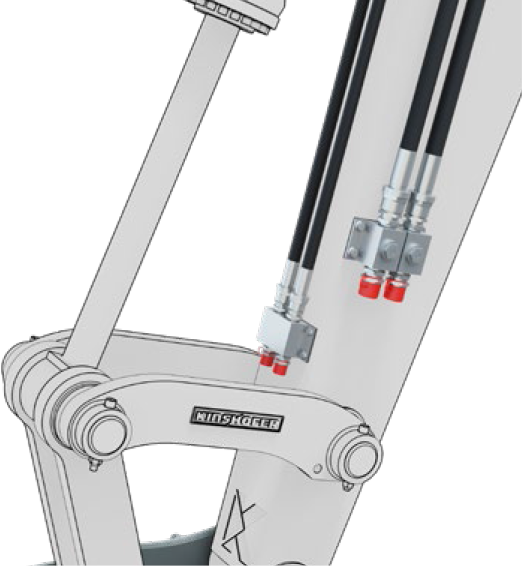

The DF06 control system requires 2 double-acting hydraulic circuits for the rotation and tilt movement of the NOX Tiltrotator. For the use of a hydraulic quick coupler, an additional circuit is required. The tilt function can be switched by pressing a button on the joystick to the extra function controlling e.g. the opening and closing of a grab.
MACHINE REQUIREMENTS FOR DF06
DF10
DIRECT FEED SYSTEM

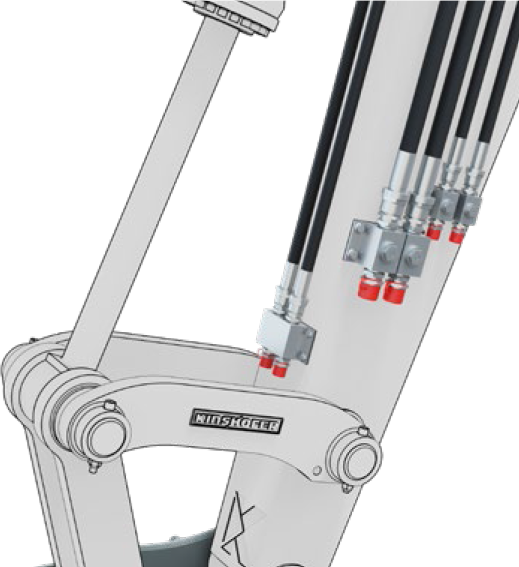

The DF10 control system requires at least 2 double-acting hydraulic circuits for the rotation and tilt movement of the NOX Tiltrotator. Including the lines of the quick coupler function, two other hydraulic circuits, e.g. open/close grab and open/close intergrated gripper, can be connected to the NOX Tiltrotator. Furthermore, an additional drain line can be installed.
MACHINE REQUIREMENTS FOR DF10
DF04, DF06 & DF10 Control systems
