nox Tiltrotator
SYSTEM:
UPPER BRACKET & LOWER QUICK COUPLER
The Tiltrotator can be mounted directly to the excavator arm (direct
mount) or it can be ”Sandwich” mounted to the excavator by a quick
coupler. Preferably, the excavator coupler is the same as the lower
quick coupler on the NOX Tiltrotator, but it is not necessarily required.
The Tiltrotator can thus be uncoupled and coupled again in no time.

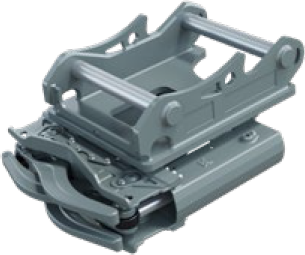

The lower quick coupler allows for a safe and fast exchange between
attachments.
DESIGN:
SELF-CONTAINED UNIT

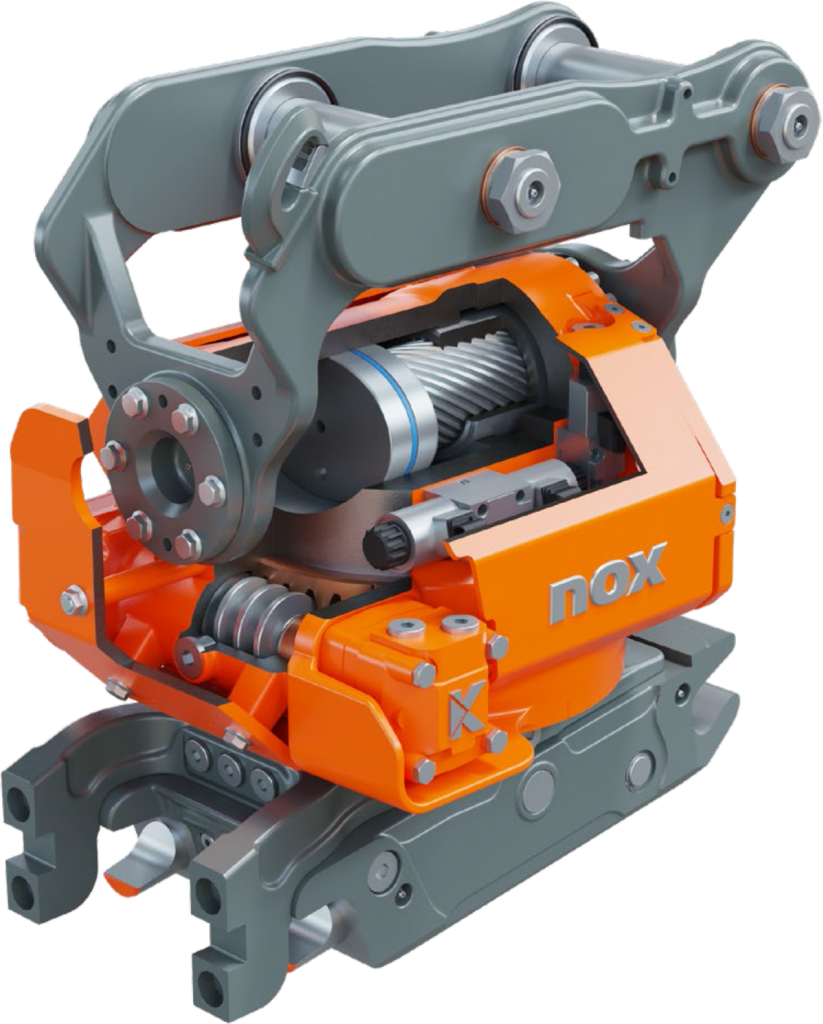

The compact design with its fully integrated tilt and rotation unit
provides highest safety against damage. There are no protruding
cylinders or piston rods that can be damaged, increasing the reliability of the NOX. In addition, the low design maintains higher breakout forces of the machine.
SET-UP:
COMPACT DESIGN
The cylinderless, extremly low and narrow built drive unit allows for very narrow bucket width, that are usually not wider than the excavator boom. Therefore, digging down in deep trenches becomes possible and very easy.
SAFETY:
SAFE WORKING AREA
The increased working radius reduces the need for repositioning your excavator to a minimum. Manual works such as manual digging in the danger zone by a co-worker are not necessary, as these works can be managed from the excavator cabin with the NOX Tiltrotator. The S-Lock quick coupler with front-lock prevents the attachments from falling down unintendedly.
NOX
Benefits
FLEXIBLE OPERATION
Fast and uncomplicated response to requirements to be more competitive.
HIGHER SAFETY
Manual works within the danger area are reduced to a minimum.
LESS WEAR
The compact and extremely robust design without hydraulic cylinders lowers the risk of damages.
HIGHER EFFICIENCY
Working more efficiently saves consumables and labor costs and reduces the required working times. The tasks can thus be finished faster and the wear is kept to a minimum.
Fast and uncomplicated response to requirements to be more competitive.
HIGHER SAFETY
Manual works within the danger area are reduced to a minimum.
LESS WEAR
The compact and extremely robust design without hydraulic cylinders lowers the risk of damages.
HIGHER EFFICIENCY
Working more efficiently saves consumables and labor costs and reduces the required working times. The tasks can thus be finished faster and the wear is kept to a minimum.
WORM DRIVE

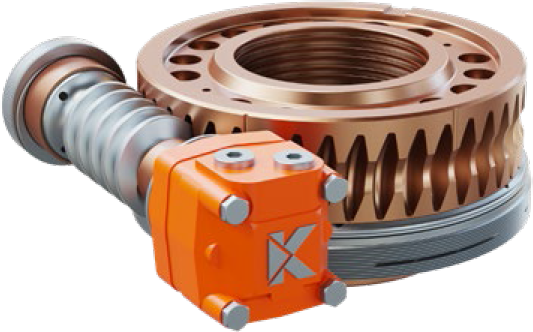

The oversized worm gear absorbs shock loads with ease. The compact diameter and yet high torque ensures a very slim design, hence keeps the overall width of the NOX extremely small.
HOUSING

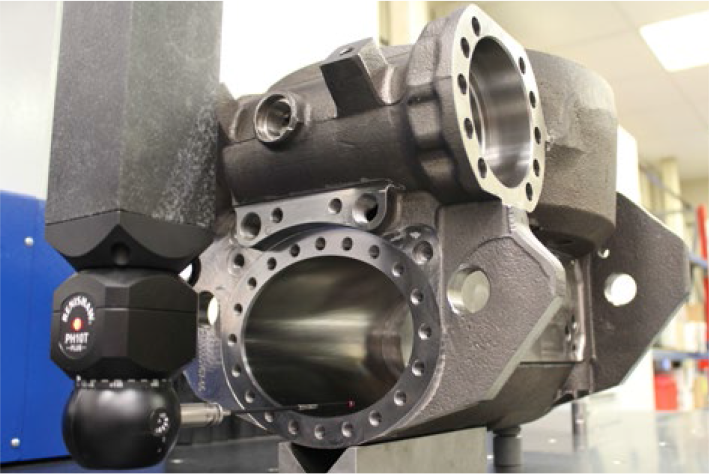

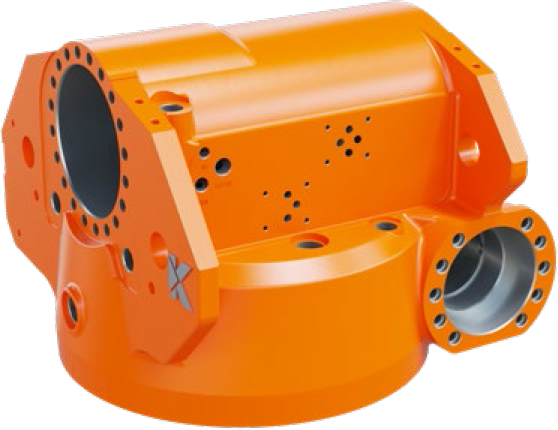

The robust cast housing features a high stability due to a special material alloy, guaranteeing a long life even under the toughest conditions. The integrated motor cover protects the hydraulic motor of the worm drive from damage from below. The quality of our precision components is ensured by 3D coordinate measuring machines with tactile and optical measuring sensors.
HIGH-FLOW SWIVEL

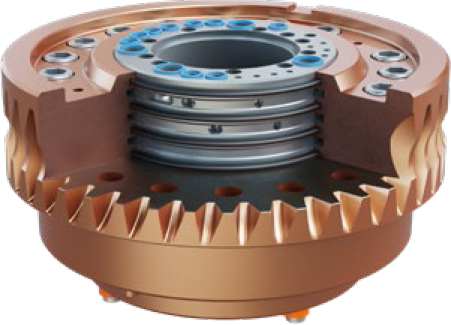

The oversized worm gear absorbs shock loads with ease. The compact diameter and yet high torque ensures a very slim design, hence keeps the overall width of the NOX extremely small.
INTEGRATED GRIPPER TRG

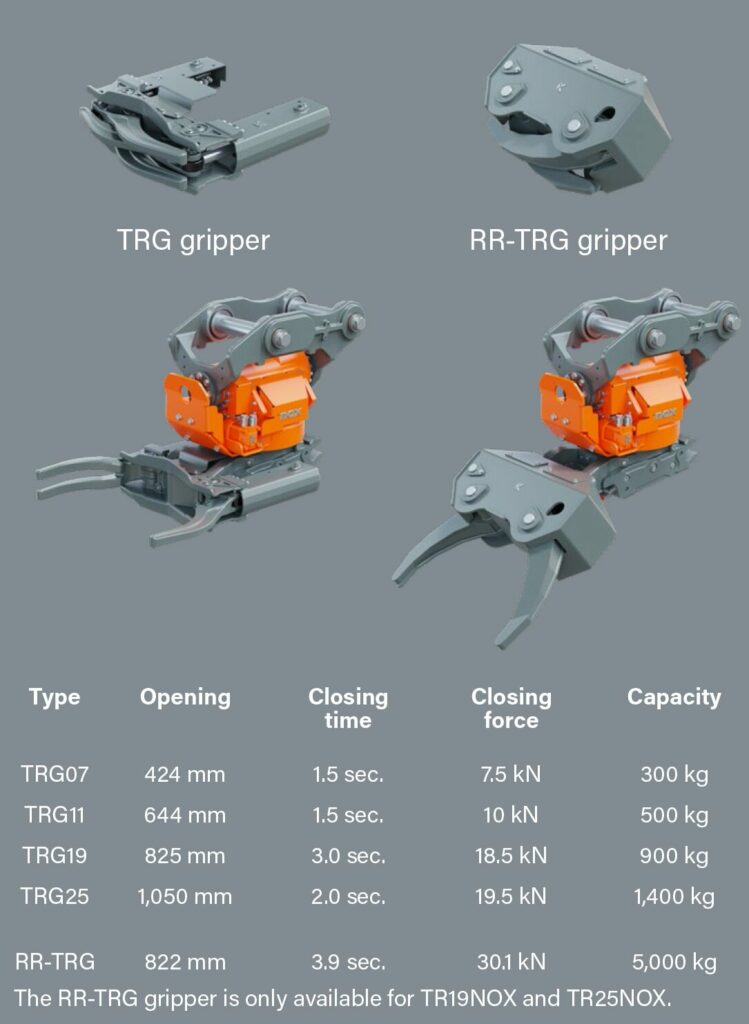

With the integrated gripper you get an additional attachment for handling poles, tubes and curb stones. The gripper is integrated at the lower quick coupler and does not affect the height or the attachment cross-movement.
Gripper module also available as attachment version F-H with different adapter systems.
RAILROAD GRIPPER RR-TRG

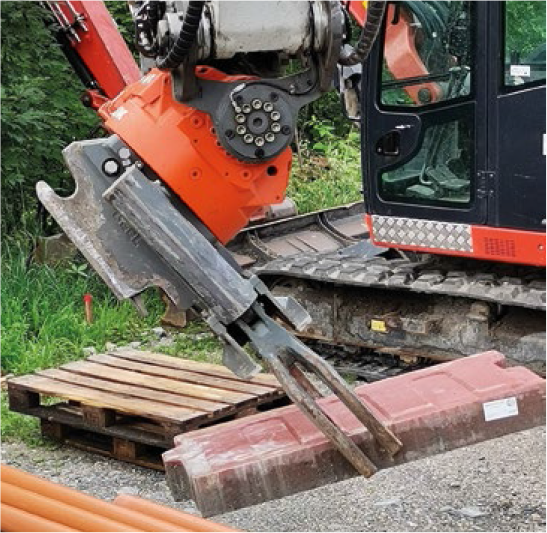

The RR-TRG gripper has been designed espacially for heavy duty tasks, such as gripping railroad sleepers or rails. The extremely strong gripper module has been constructed for efficient gripping at a 40° angle. The gripper unit can be removed quickly and easily.
