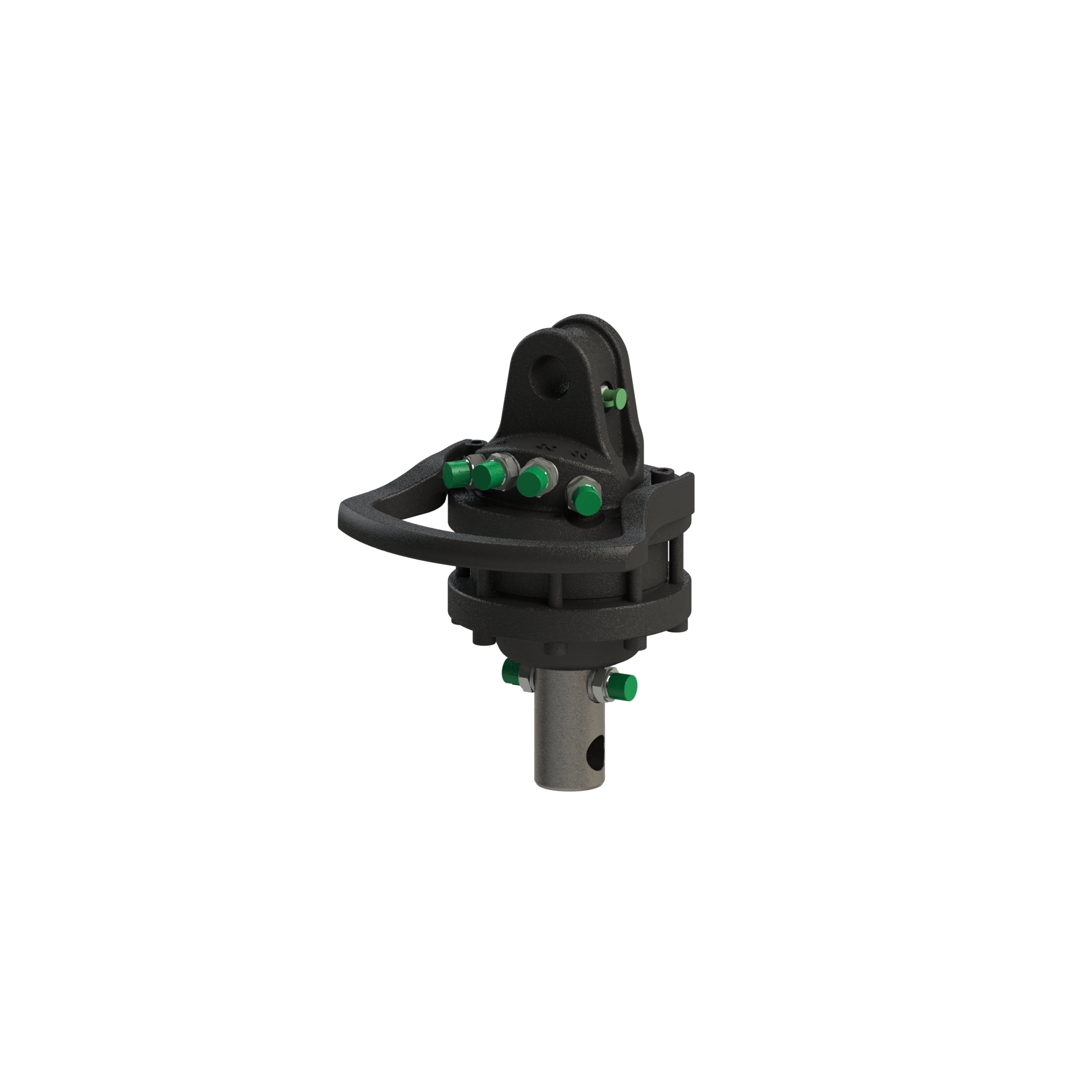

Formiko FHR1L 1t Hydraulic Rotator

In Stock

The Formiko FHR1L 1T Hydraulic Rotator is a compact and durable hydraulic rotator designed for forestry cranes, grapples, and material handling equipment. Built with a heavy-duty steel housing and a reliable hydraulic vane motor, it delivers smooth continuous 360° rotation for precise load positioning. With a 1-ton safe working load, high torque output, and efficient oil flow requirements, the FHR1L rotator is ideal for timber handling, scrap handling, and other demanding lifting applications where strength, reliability, and consistent rotation are essential.

Share

⚙️
Hydraulic Rotation
Continuous 360° rotation for forestry cranes and grapples.
🏗️
1 Ton Capacity
Safe working load rated at 1000 kg.
🛠️
Heavy Duty Build
Steel housing designed for demanding forestry operations.
🔄
Continuous Rotation
Unlimited rotation for smooth grapple positioning.

Technical Specifications

Model FHR1L
Type Hydraulic Rotator
Safe Working Load 1000 kg
Maximum Torque 350 Nm
Maximum Pressure 250 bar
Recommended Oil Flow 10 L/min
Hydraulic Ports G 1/4"
Upper Pin Diameter 25 mm
Upper Mount Width 45 mm
Lower Pin Diameter 20 mm
Lower Shaft Diameter 39.5 mm
Weight Approx. 11 kg
Rotation Continuous 360°
