Formiko FHR4 4.5t Hydraulic Rotator

In Stock

The Formiko FHR4 4.5t Hydraulic Rotator is a compact and durable heavy-duty rotator designed for forestry, construction, and material handling applications. Built with high-strength components and precision engineering, it provides smooth 360° continuous rotation, allowing operators to efficiently control grapples and attachments with maximum accuracy. With a 4.5-ton load capacity, the FHR4 delivers reliable performance even in demanding working conditions while maintaining low maintenance requirements. Ideal for excavators, cranes, and timber handling equipment, the Formiko FHR4 ensures long service life, high torque, and dependable operation for professional operators.

Share

Key Features

Continuous Rotation
Unlimited 360° rotation.
4.5 Ton Capacity
Designed for forestry and heavy lifting.
High Torque
Up to 1200 Nm torque.
Heavy Duty Build
Industrial steel housing.

Select Model

FHR 4.5L

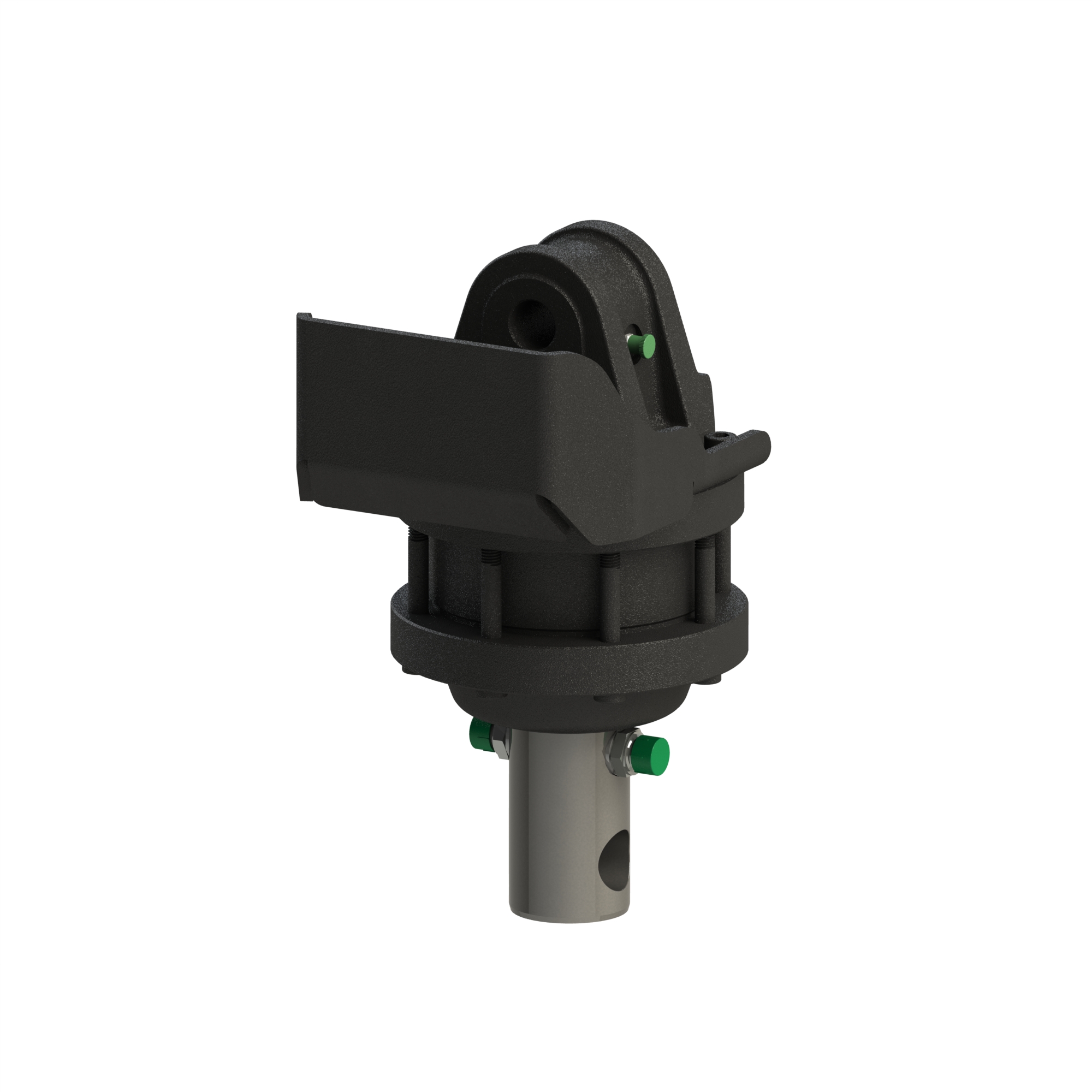

FHR 4.5LH

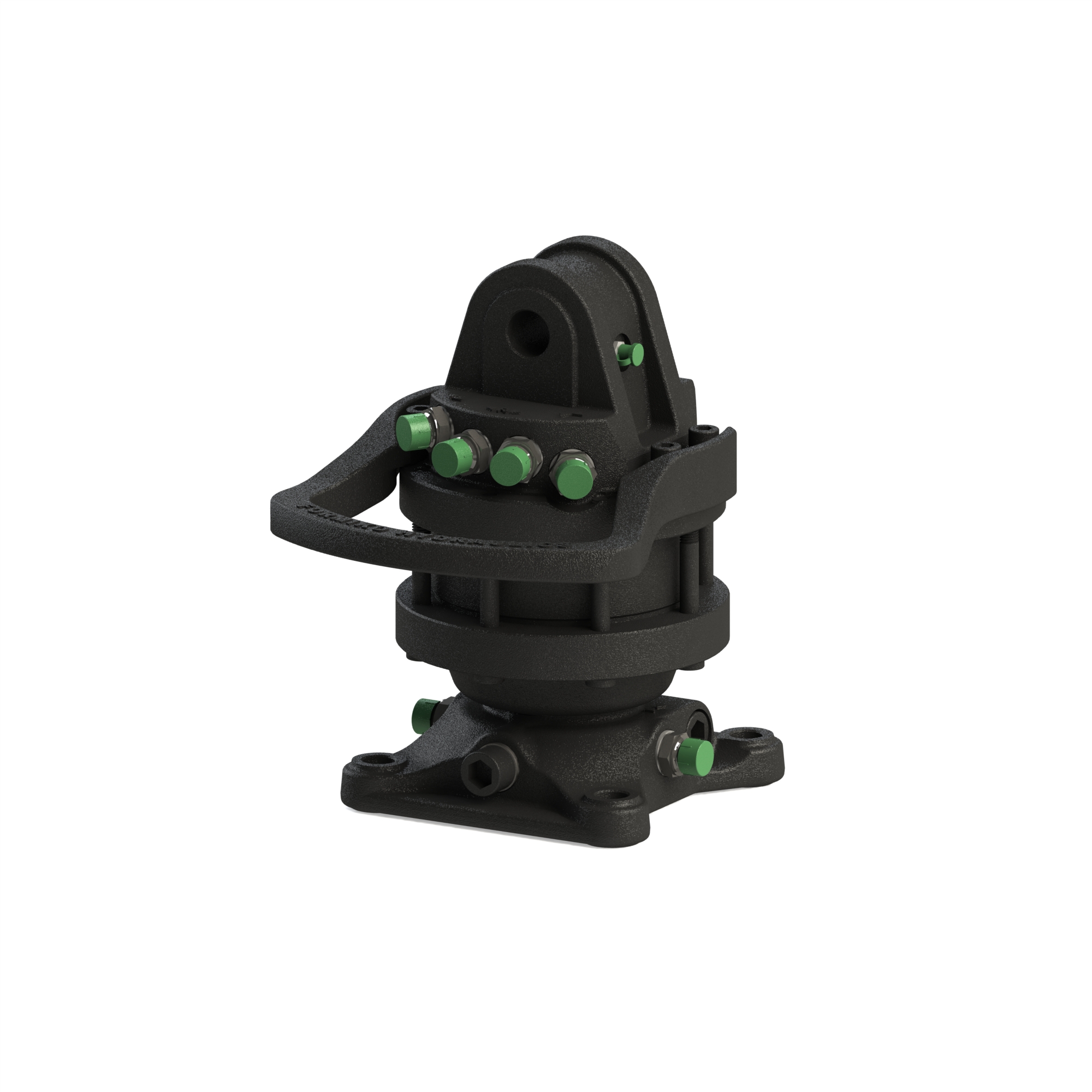

FHR 4.5SF

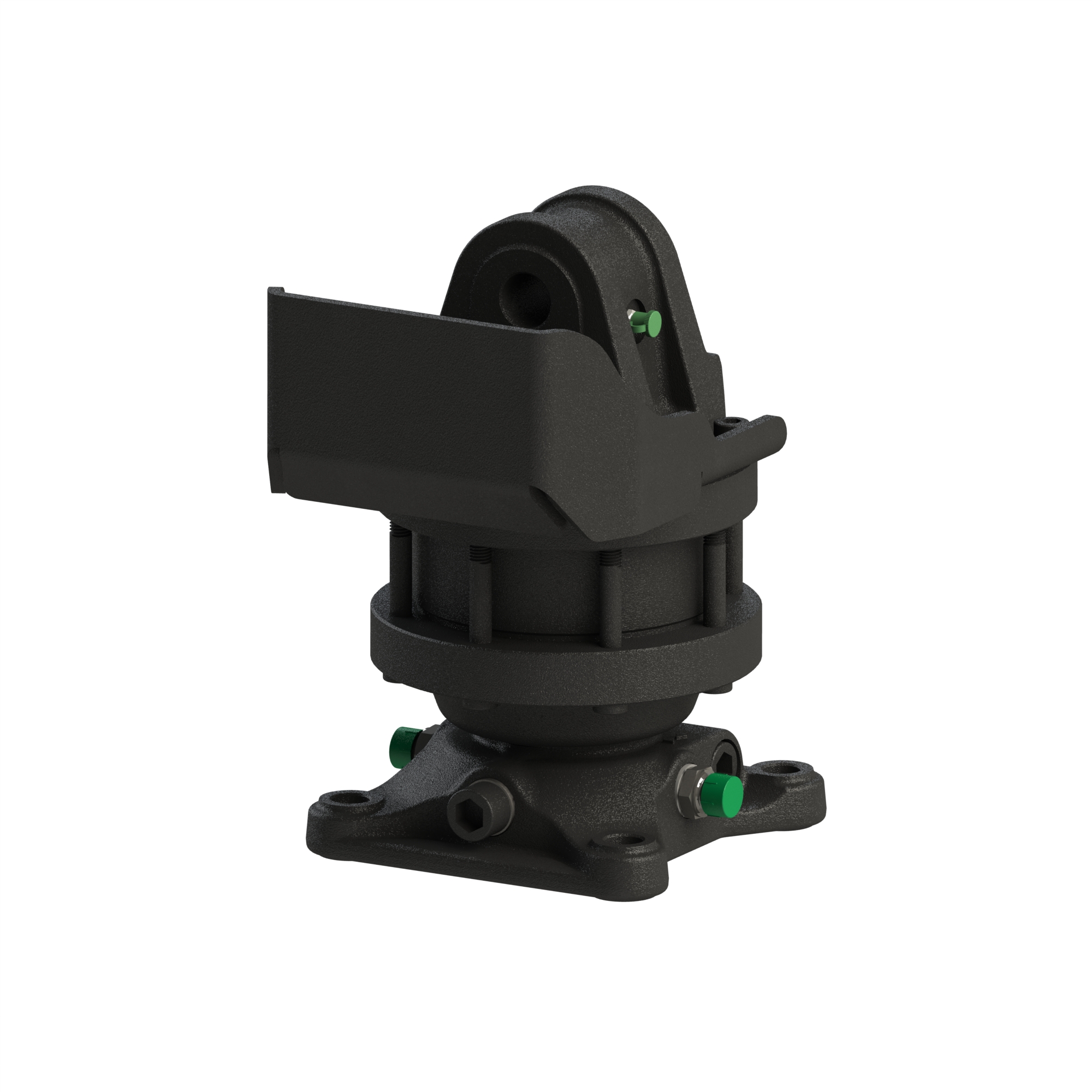

FHR 4.5SFH

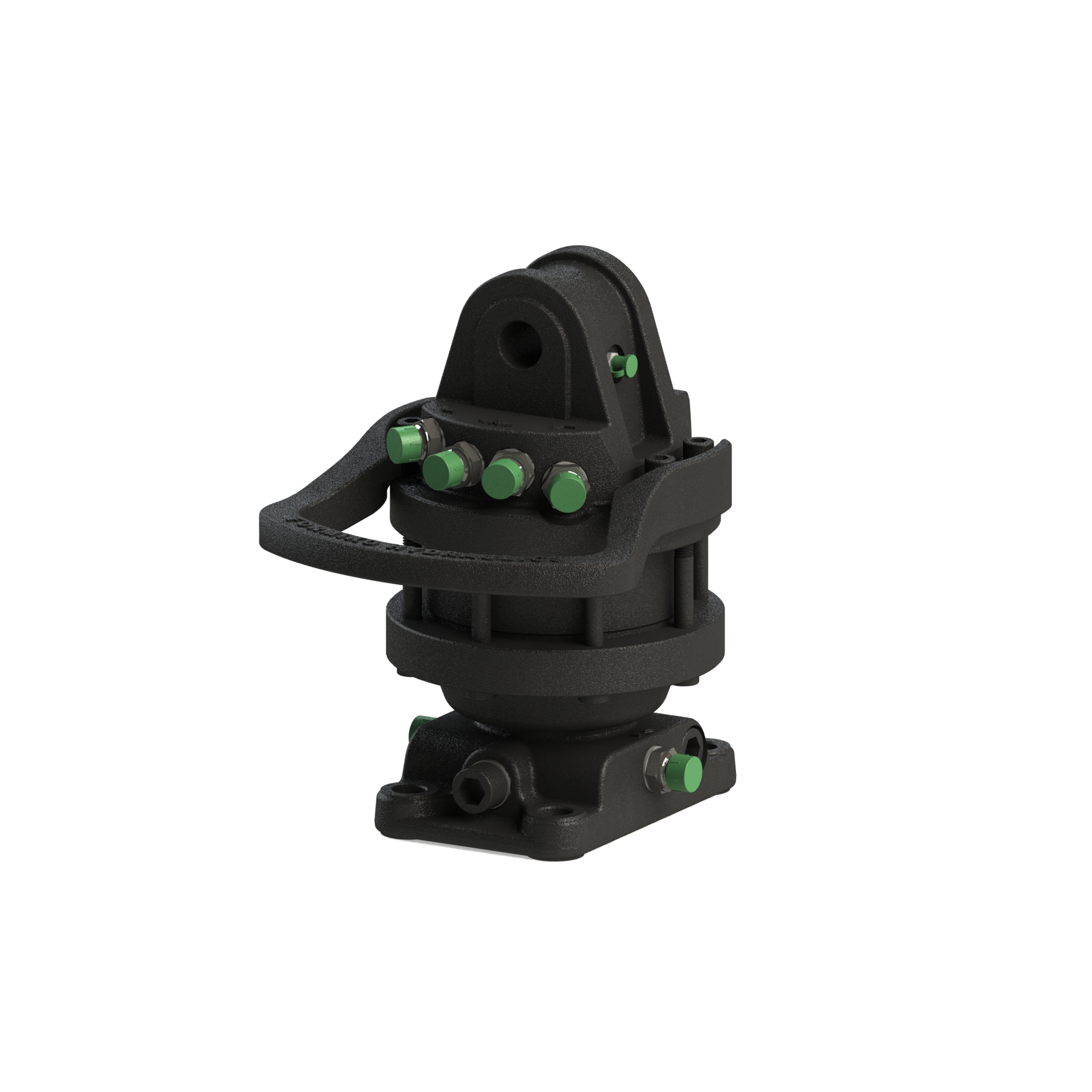

FHR 4.5RF

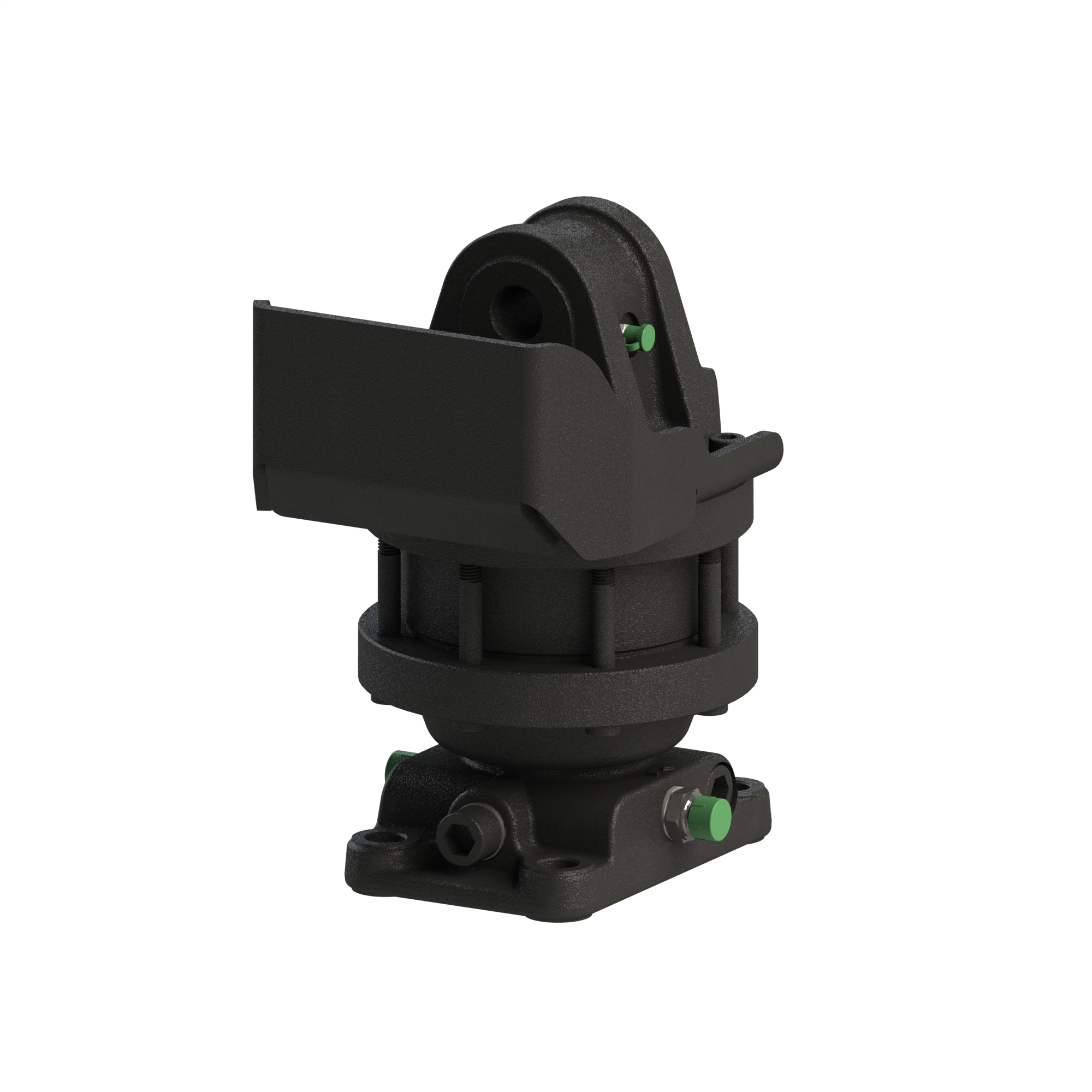

FHR 4.5RFH

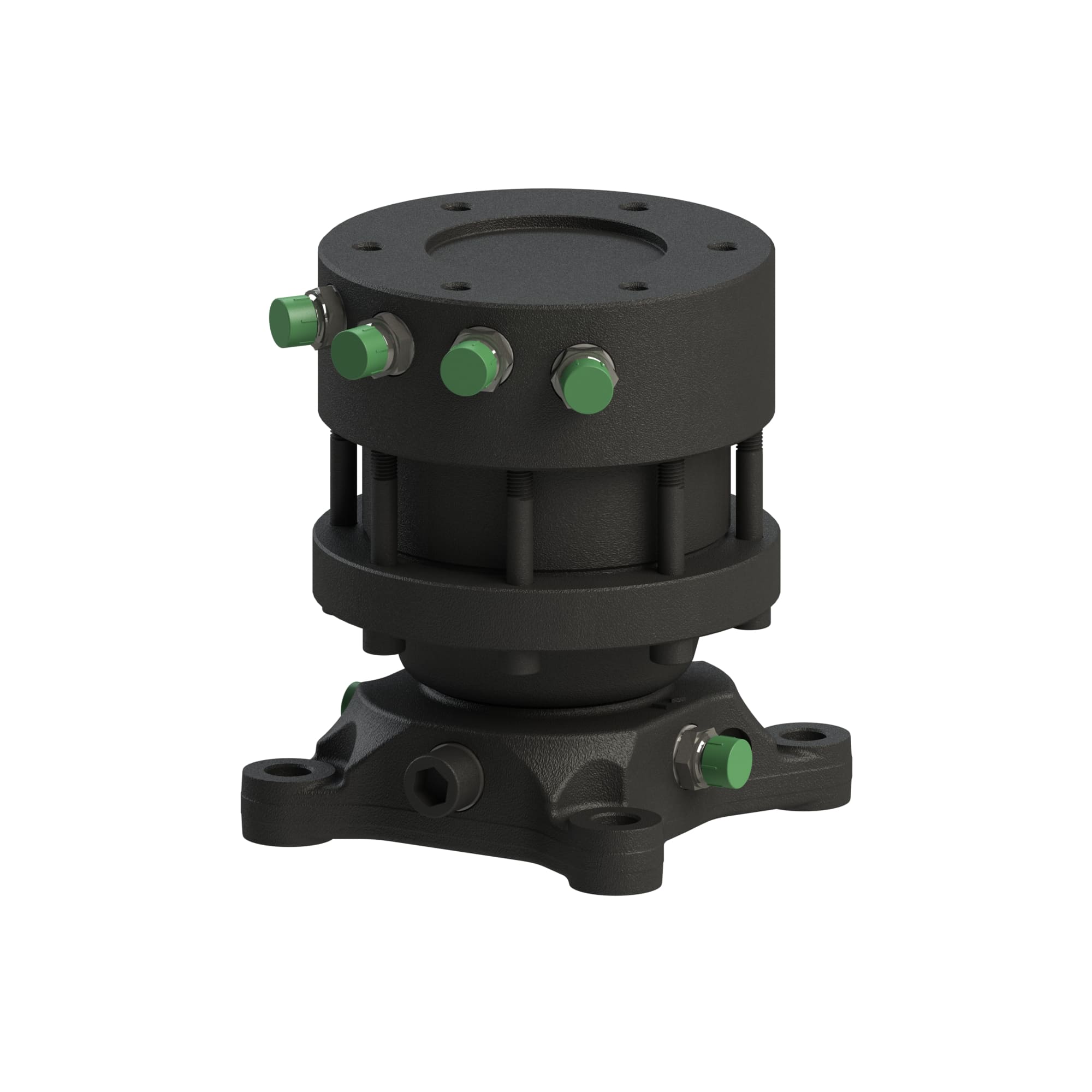

FHR 4.5FF140

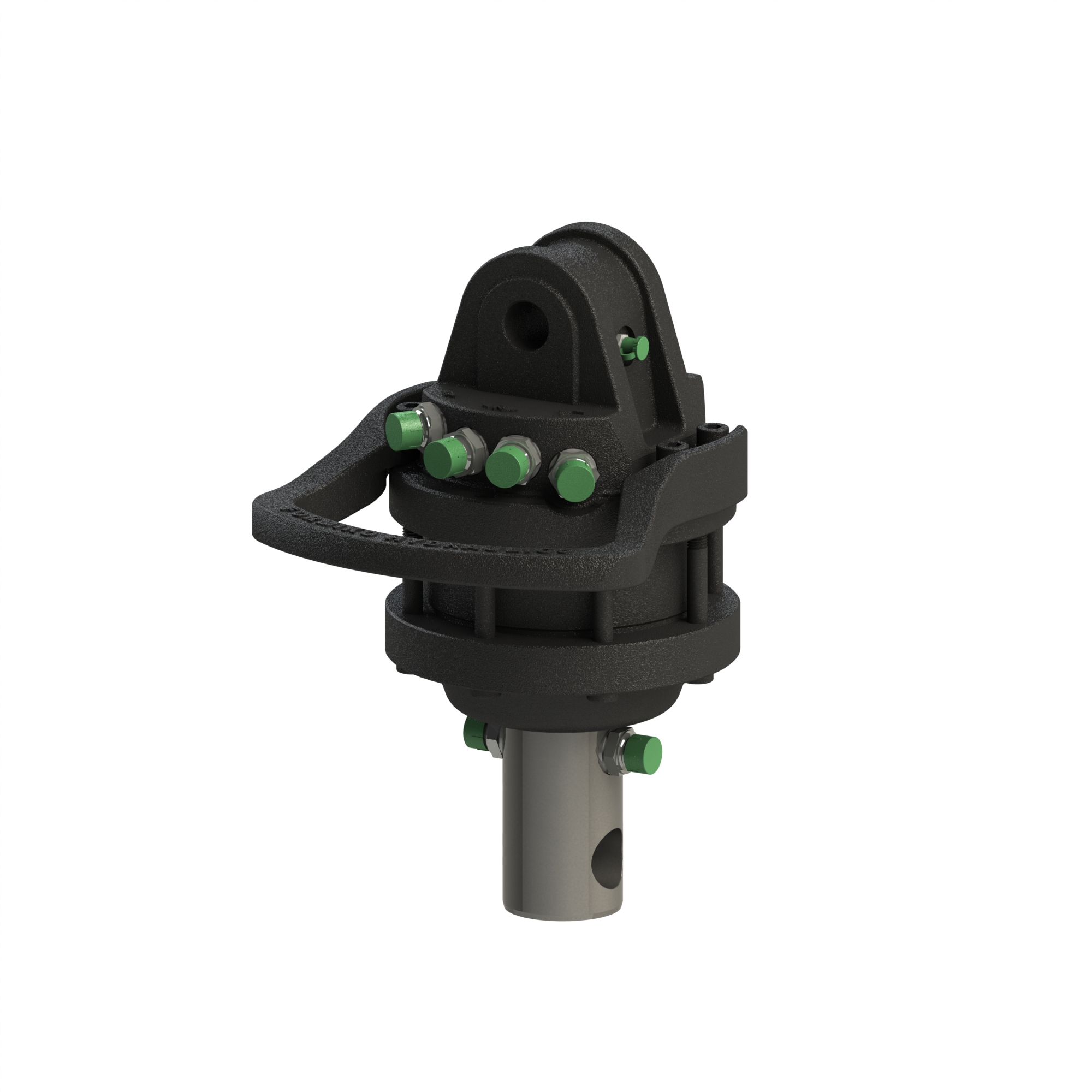

Model FHR 4.5L
Safe Working Load 4500 kg
Maximum Torque 1200 Nm
Working Pressure 250 bar
Oil Flow 20 L/min
Hydraulic Ports G 3/8"
Weight 24 kg
Mount Type Pin Mount

Diagram
