Formiko FHR6 6t Hydraulic Rotator

In Stock

The Formiko FHR6 6t Hydraulic Rotator is a compact yet powerful forestry rotator designed for efficient log handling and light-to-medium duty material handling applications. Featuring a 6-ton lifting capacity and smooth 360° hydraulic rotation, it provides precise control for grapples, mini forestry cranes, and compact log loaders. Constructed with high-strength steel and dependable hydraulic components, the FHR6 delivers excellent durability, low maintenance requirements, and reliable performance in demanding forestry environments. The Formiko FHR6 hydraulic rotator is an ideal solution for operators seeking efficiency, control, and long service life in everyday logging operations.

Share

Key Features

Continuous Rotation
Unlimited 360° hydraulic rotation.
6 Ton Capacity
Safe working load up to 6000 kg.
High Torque Motor
Up to 1500 Nm torque output.
Heavy-Duty Steel Body
Built for forestry and material handling.

Select Model

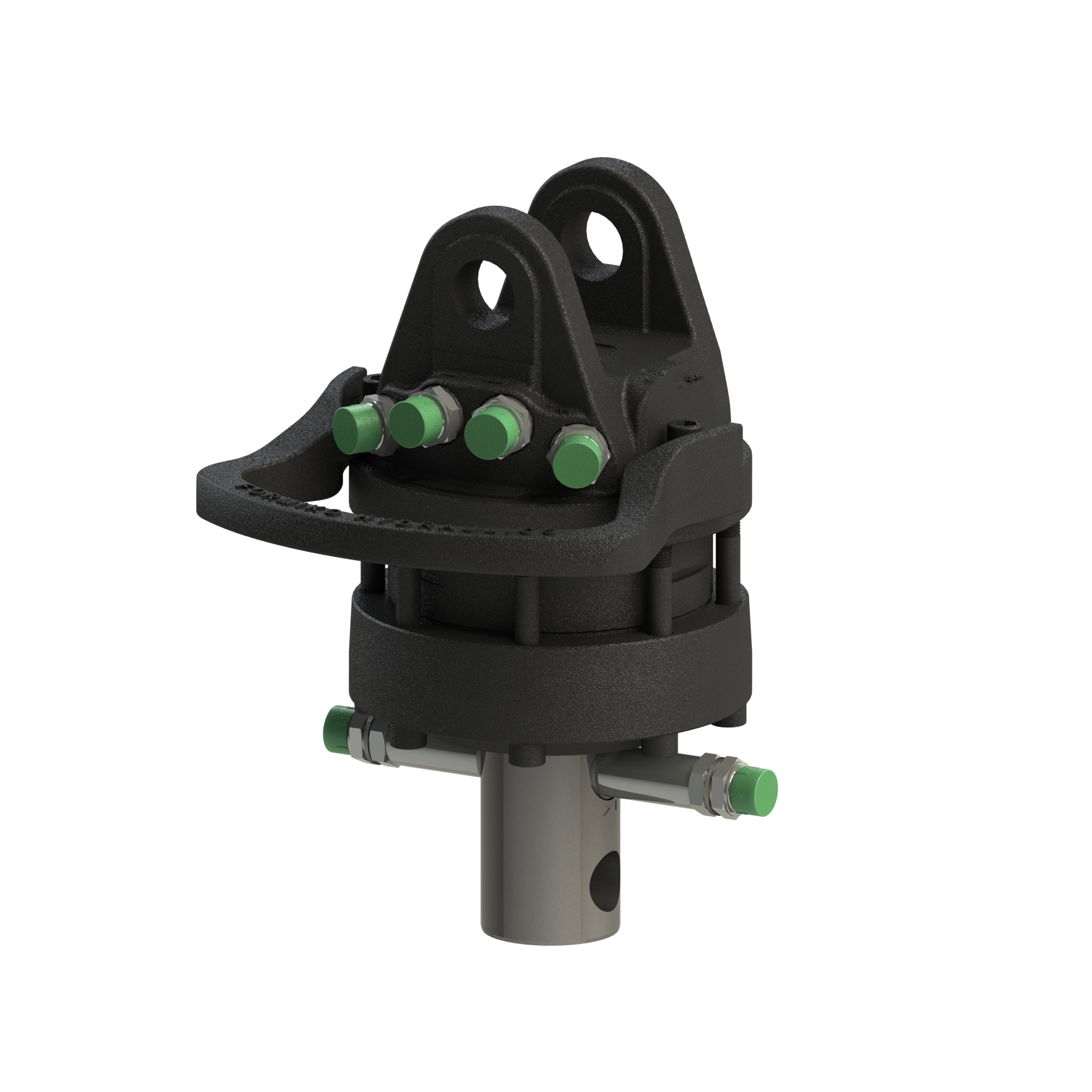

FHR 6LD1-68
FHR 6LD1-68H

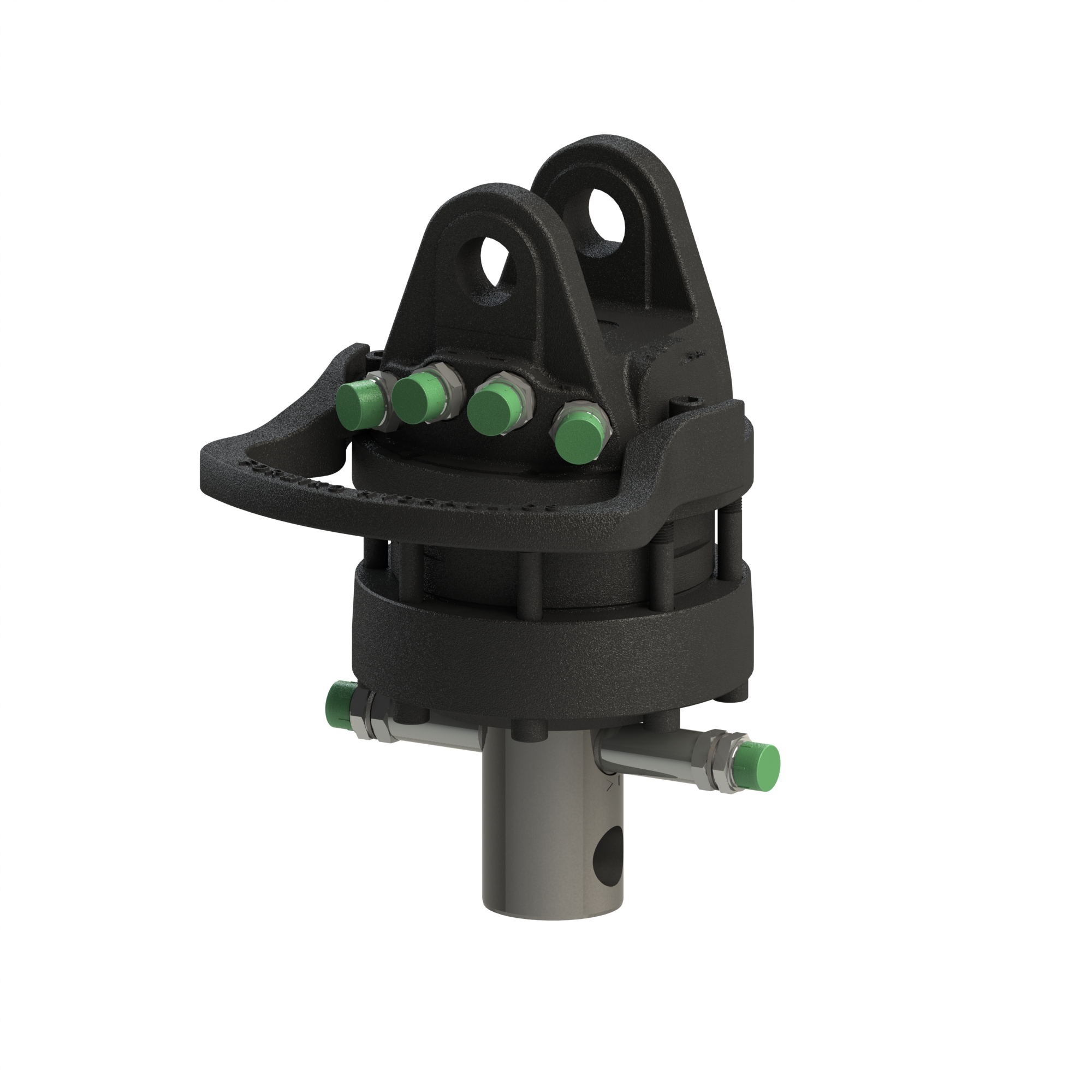

FHR 6LD1-69

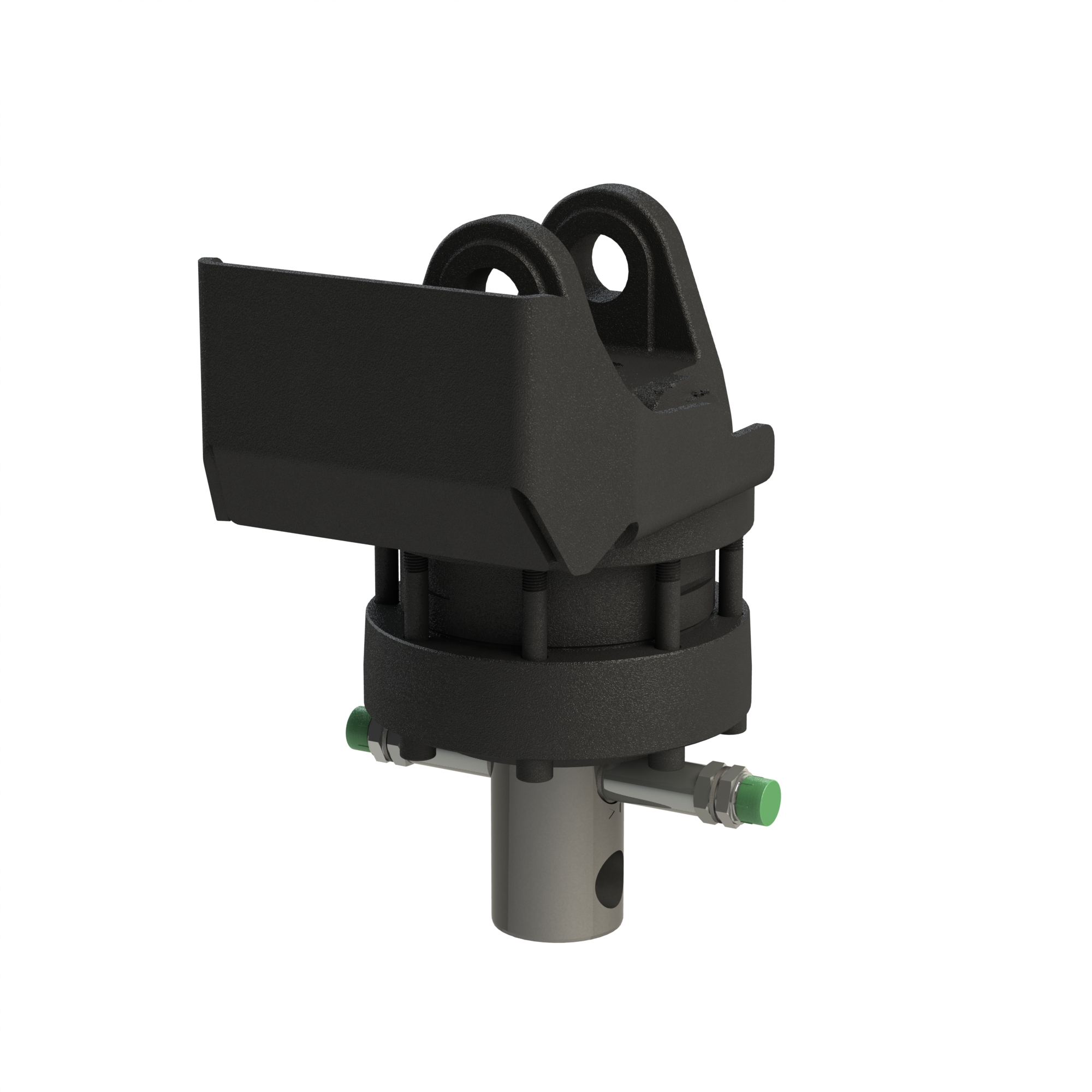

FHR 6LD1-69H

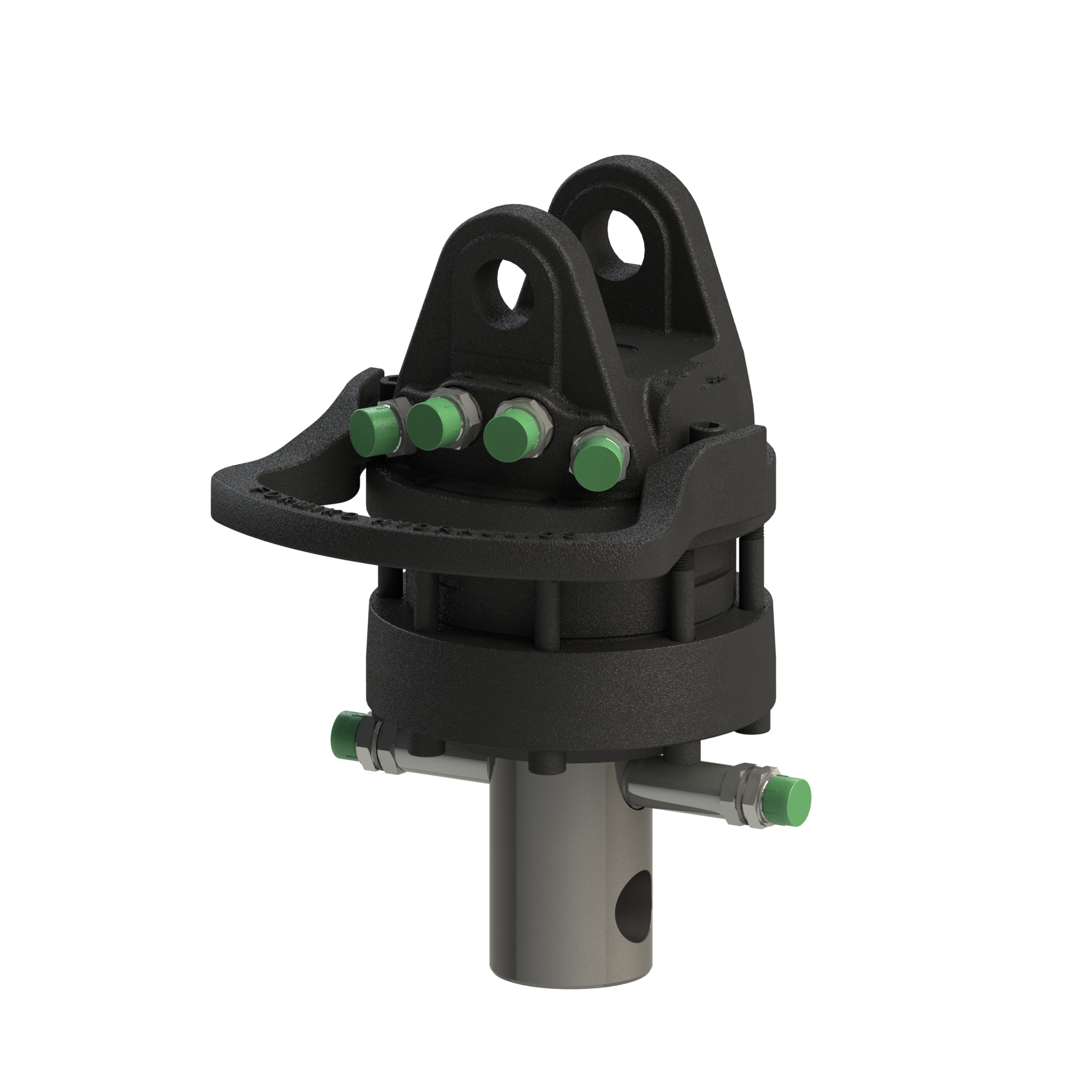

FHR 6LD1-78

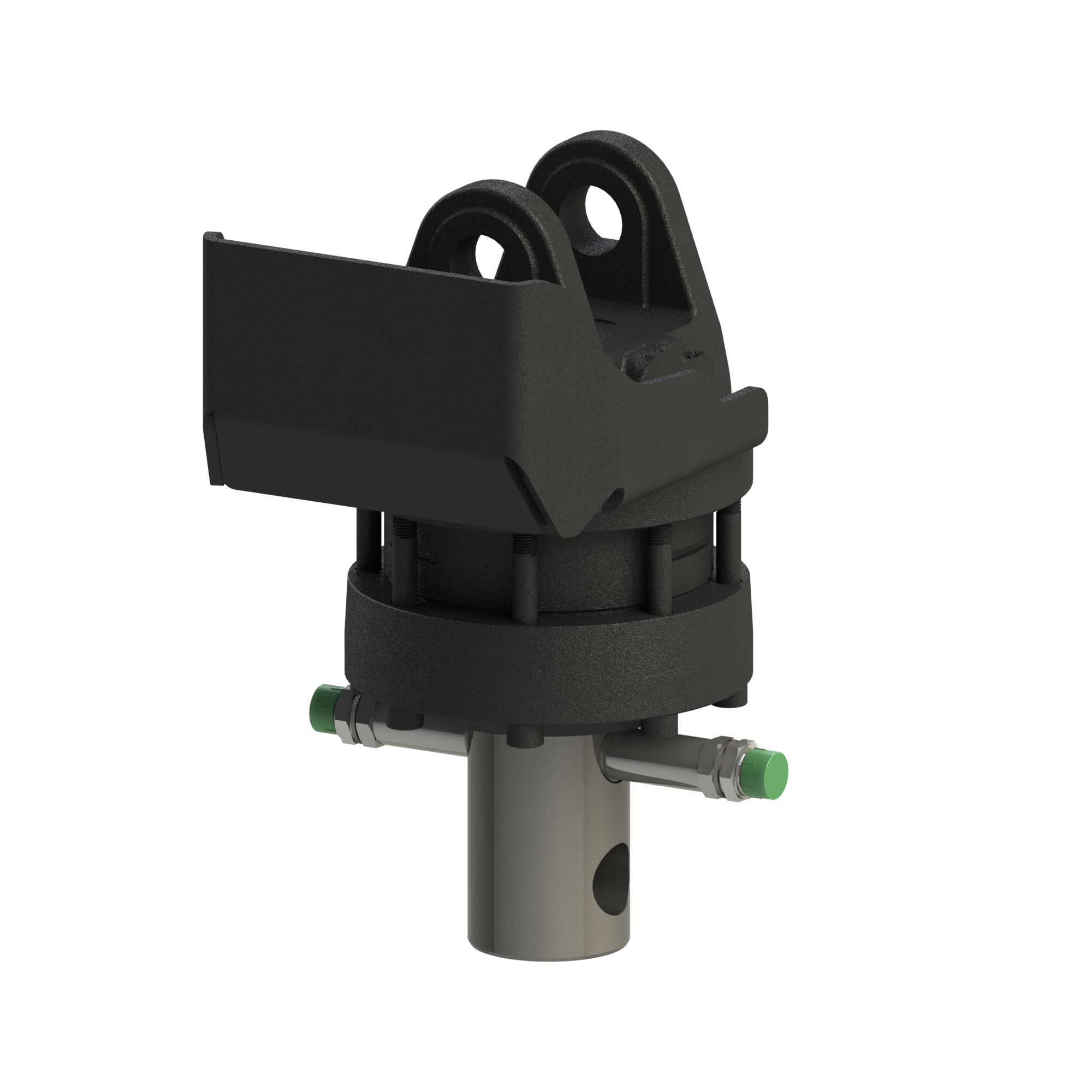

FHR 6LD1-78H

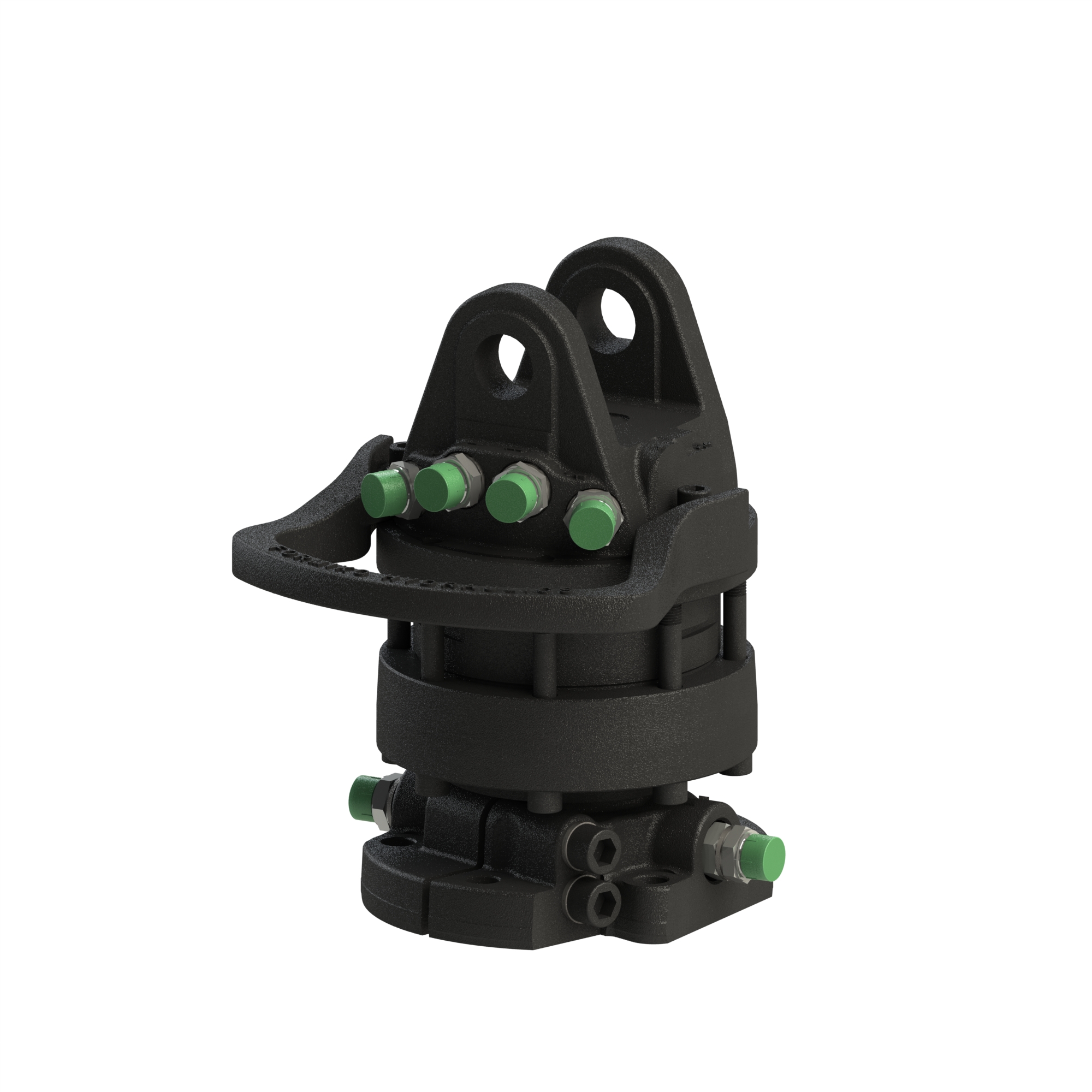

FHR 6FD1

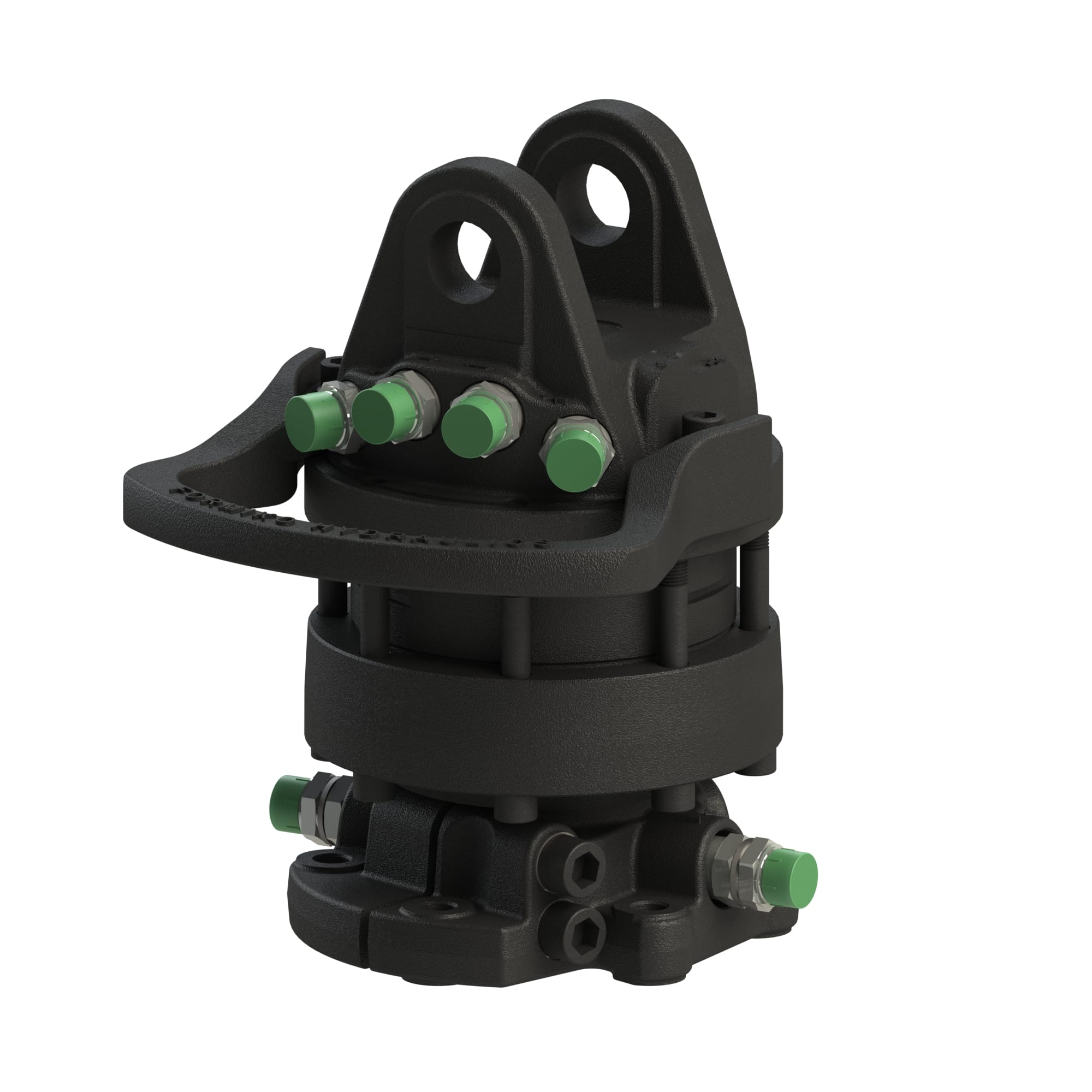

FHR 6FD1M16

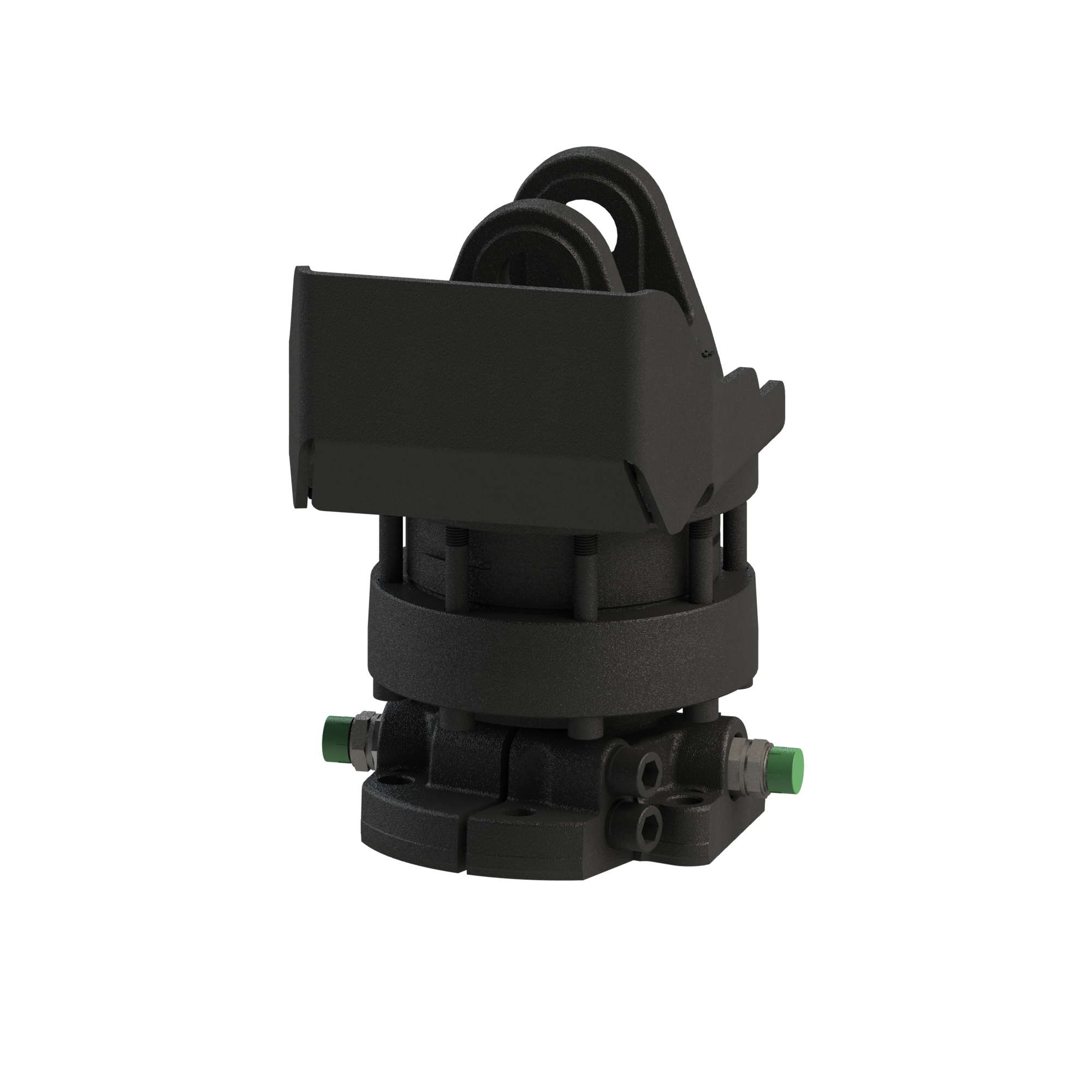

FHR 6FD1H

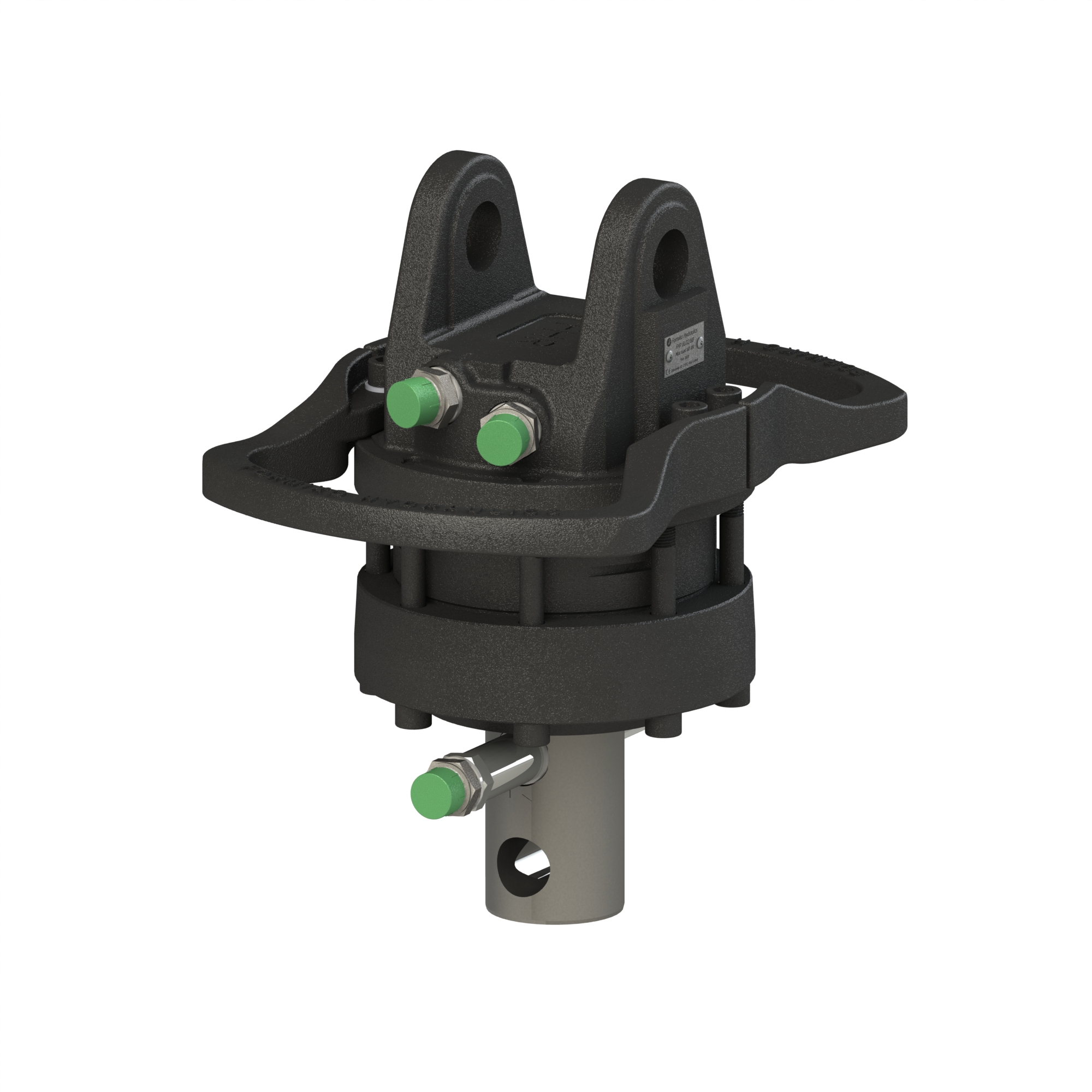

FHR 6LD2-68

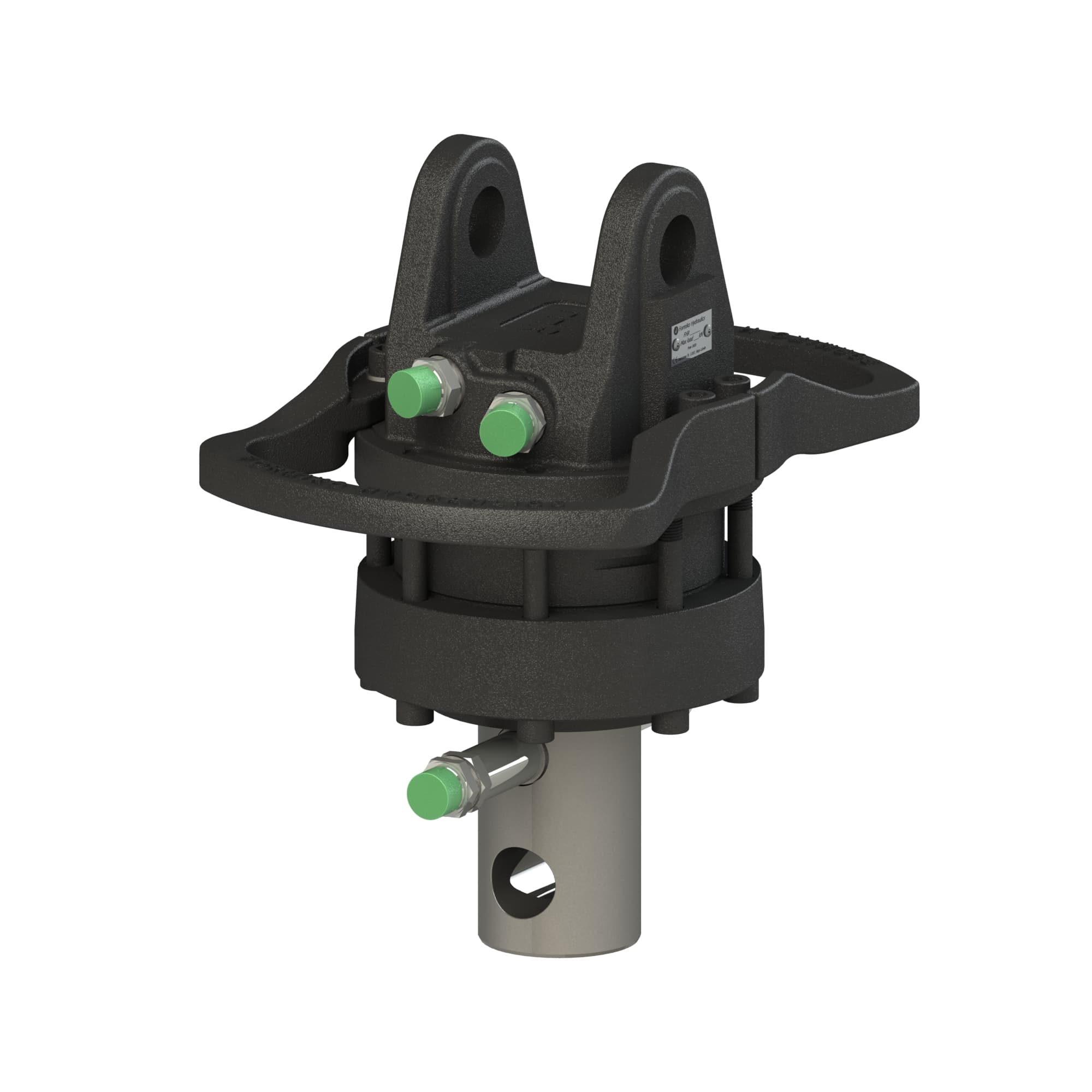

FHR 6LD2-78

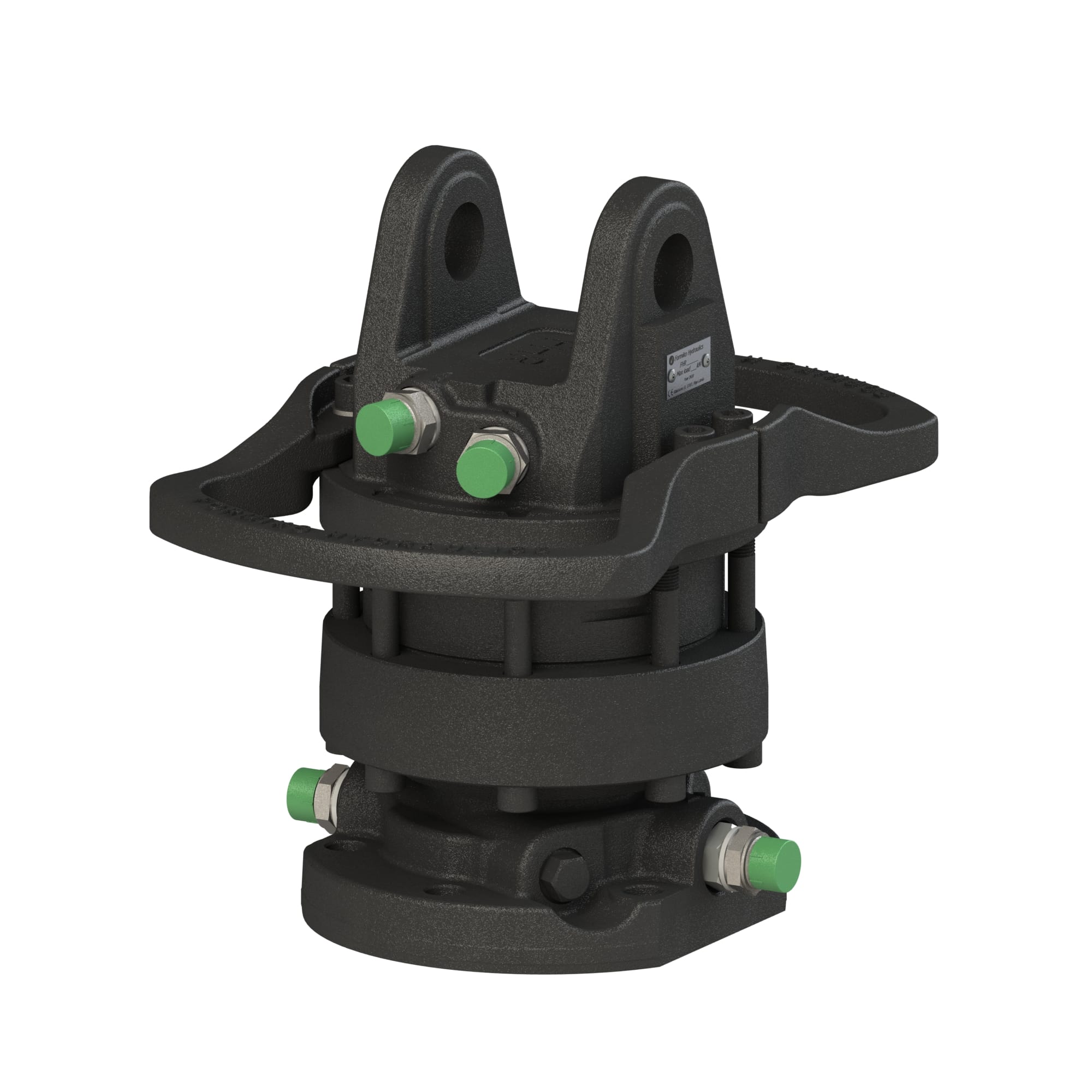

FHR 6FD2

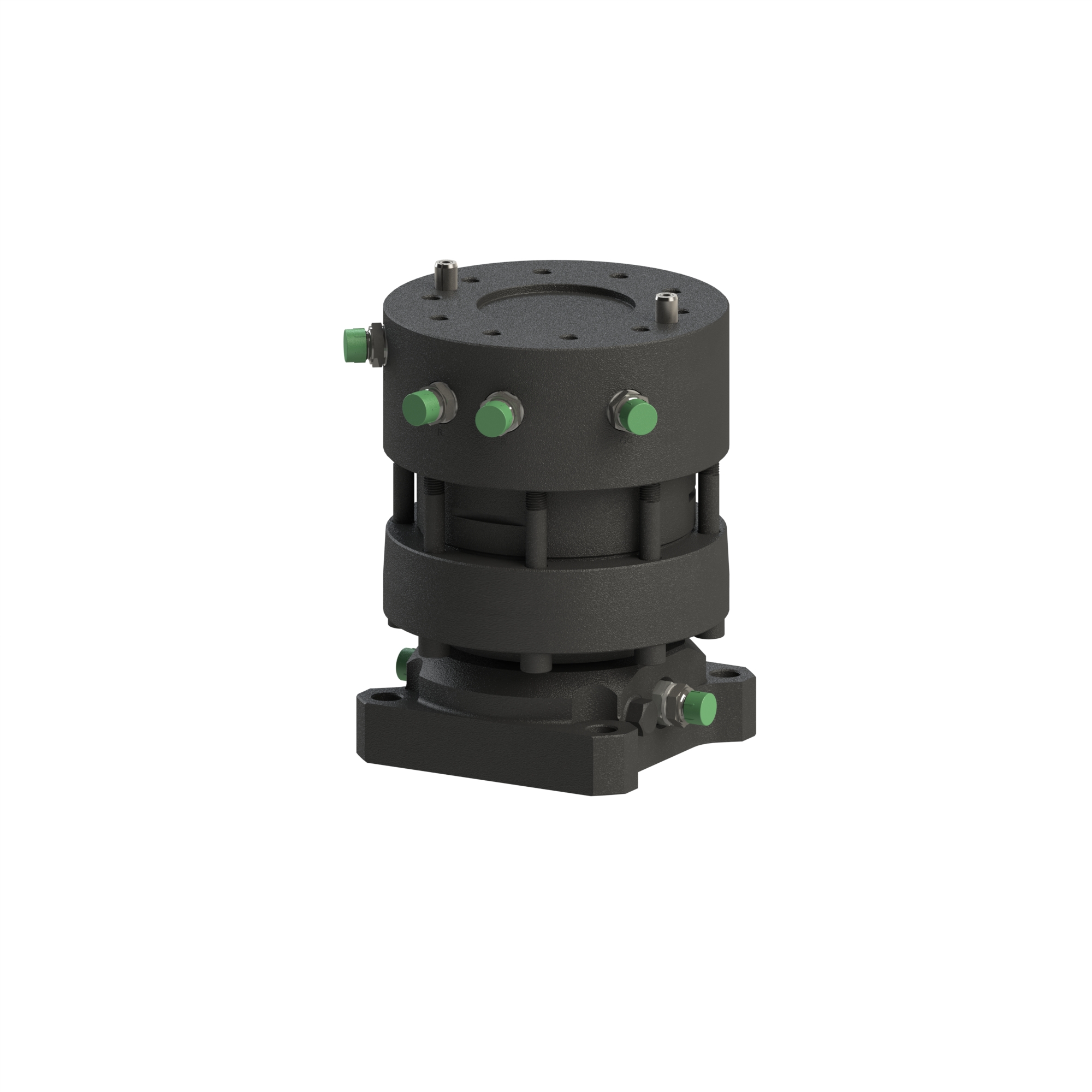

FHR 6FF2S

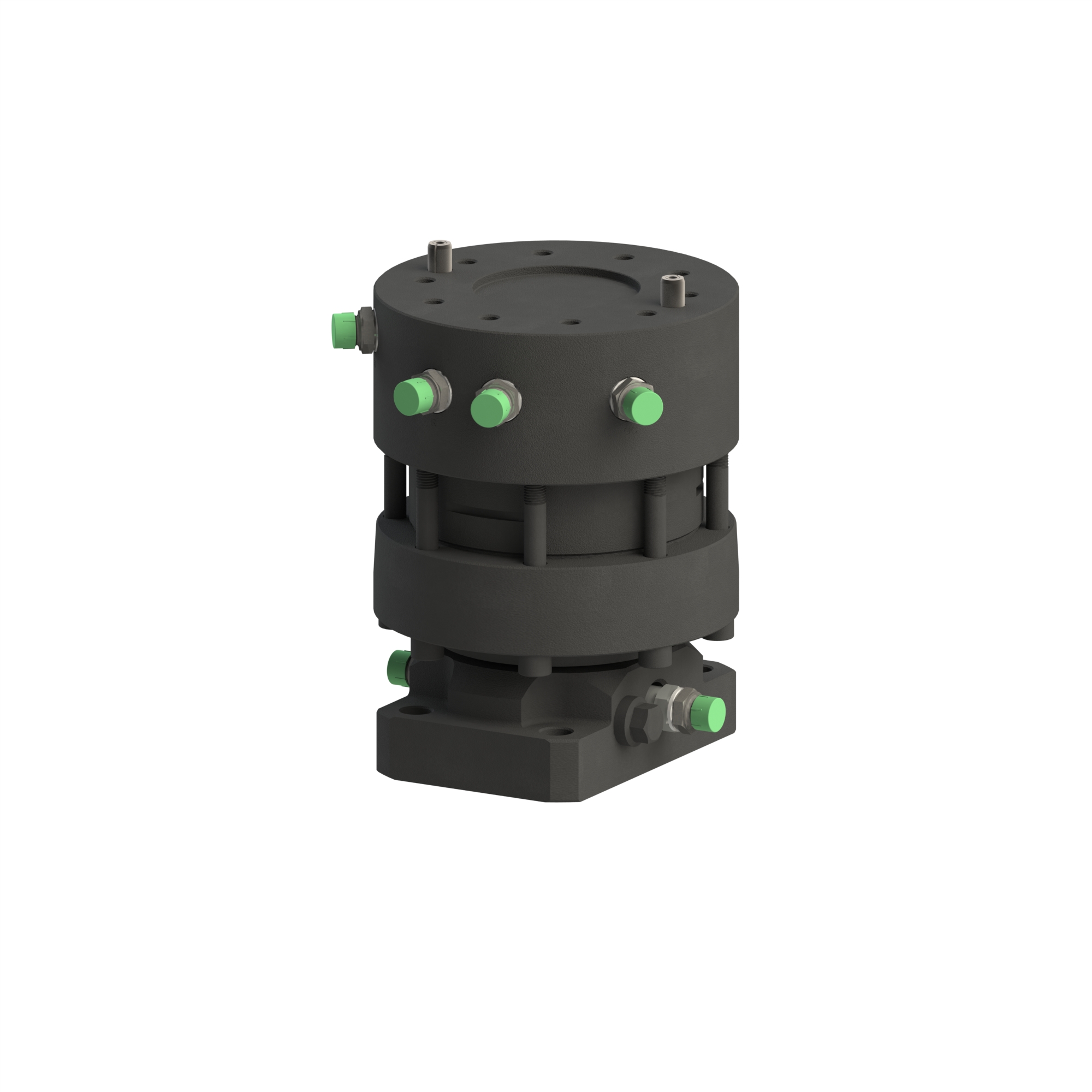

FHR 6FF2R

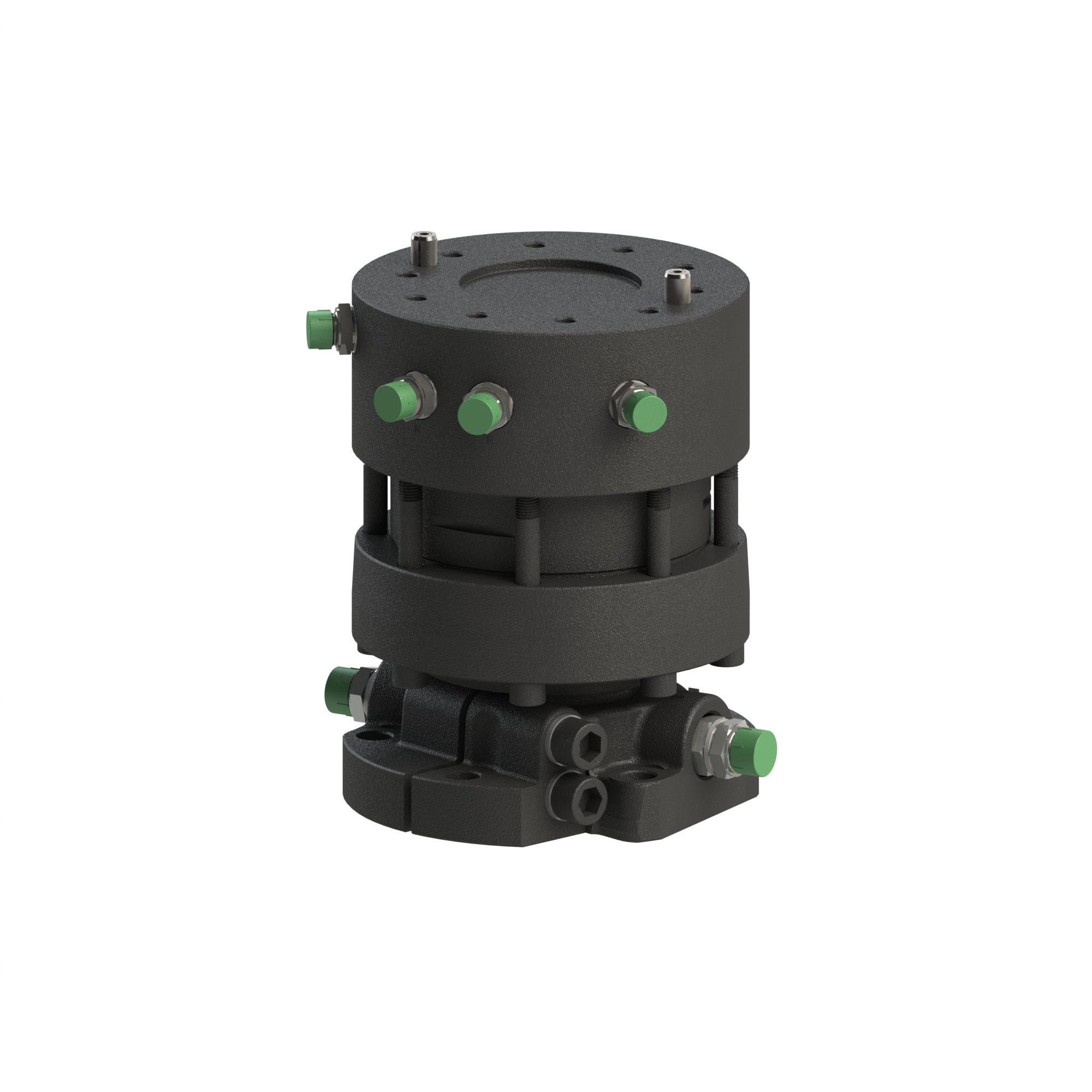

FHR 6FF2X

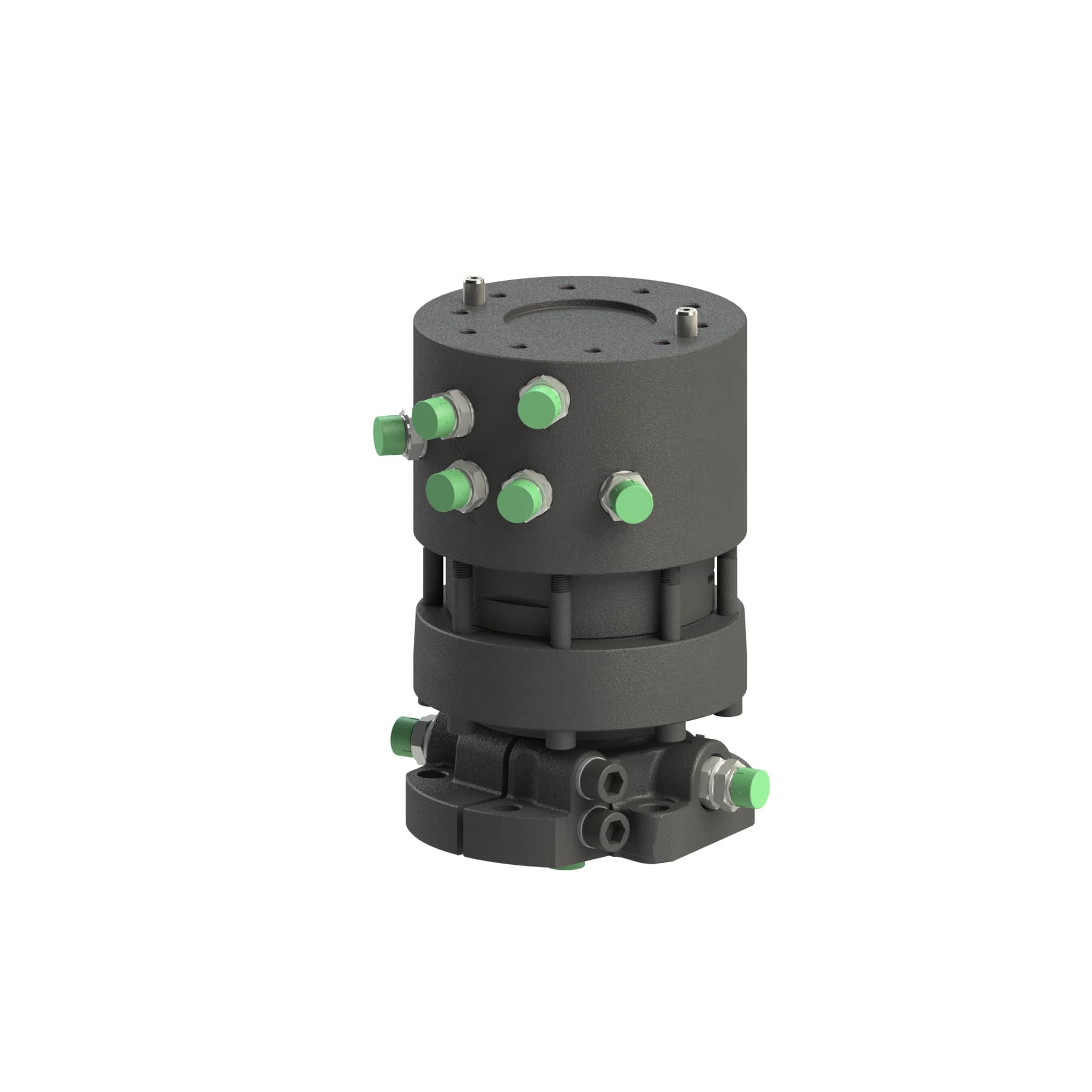

FHR 6FF4X
Model FHR 6LD1-68
Safe Working Load 6000 kg
Maximum Static Axial Load 60 kN
Maximum Dynamic Axial Load 35 kN
Maximum Torque 1500 Nm
Working Pressure 250 bar
Oil Flow 25 L/min
Hydraulic Ports G 3/8"
Upper Pin Diameter 35 mm
Lower Pin Diameter 35 mm
Shaft Diameter 78 mm
Weight 35 kg
Mount Type Link Mount

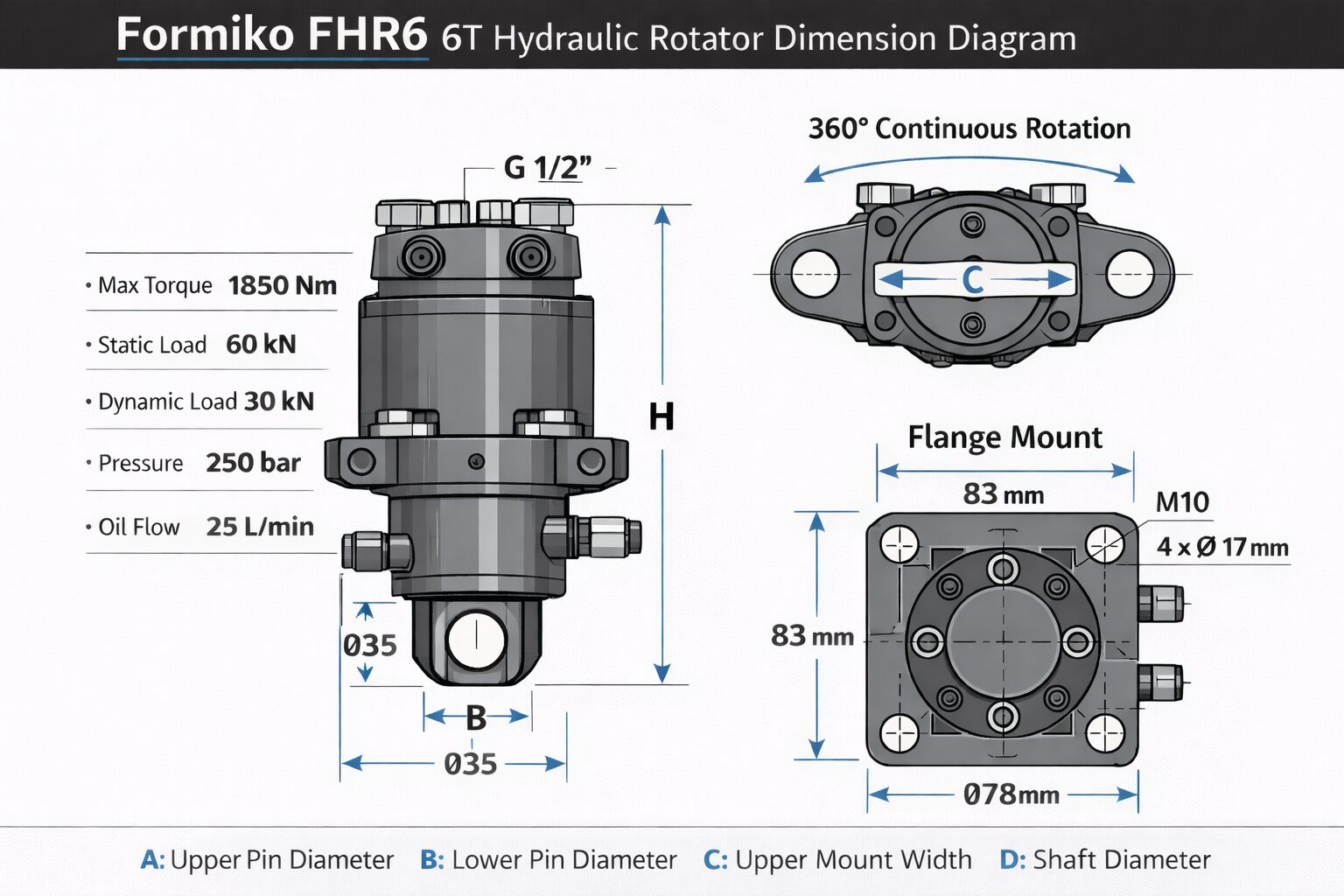

Diagram
