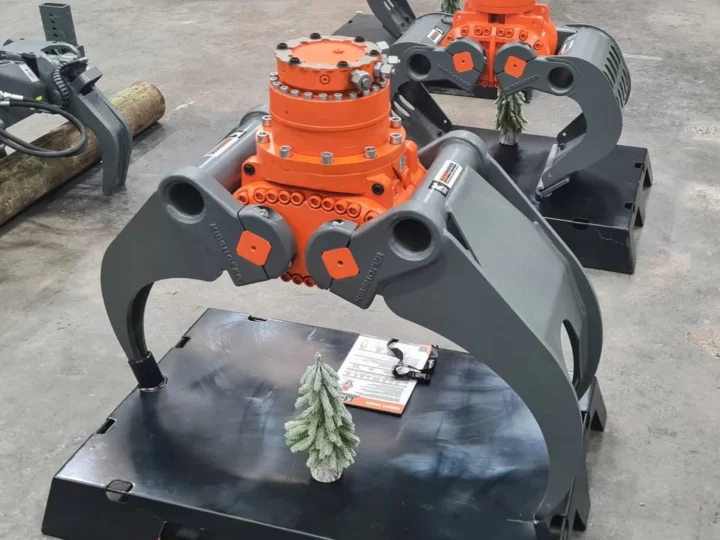

Kinshofer T06HPX – Rotating Timber Grab – Ex-Display

Ex-Display Kinshofer T06HPX Grab

Rotating timber grab with the exchangeable HPX shell system

HPX Timber grapple with special tines
T06HPX 3-finger

  • version w/ 3 tines
  • tine material Hardox 400
  • for rigid mounting
  • w/ rotator KM10F214/180
  • w/ non-return valve
  • w/ pressure relief valve
  • max. operating weight 3-6t

Log diameter: ø90 – 560 mm
Opening range: 1240 mm
Closing force: 17 kN
Capacity: 1000 kg
Self weight: 310 kg

Full HPXDrive warranty – 3 years

In Stock

£6,900.00 +20% VAT (£8,280.00)

Share

470357669 2625768451104849 4923264659413081560 n
470278424 1487328825270389 4476815236805870700 n
470354691 1729506377768854 1948615467260678775 n
470348783 3506703192966296 920487370334280847 n

Timber Grab T06HPX

Type

T06HPX-3Z

Width (min/in)

378 / 14.9

Opening A (min/in)

1,240 / 48.8

Height C Max (min/in)

1,050 / 41.3

Gripping range D min. - D max.(Ø mm/in)

90 / 3.5 - 560 / 22

Weight (kg/lbs

310 / 682

Load Capacity* (kg/lbs)

1,000 / 2,200

Closing force (kN/lbf)

17 / 3,740

Operating Weight (t/lbs)

3-6 / 6,600-13,200

KINSHOFER Rotator

Integrated in a single unit with the HPXdrive, no more connecting hoses. Continous rotation. Overload protection ensured by pressure relief valves.

Type

T06HPX: KM 10 F214/180

Upper dimension (hole/Ø-hole pattern) (mm/in)

6 x M16; Ø 180 / 7.0

Torque (Nm/ft.lb)

1,000 / 737

Bending moment max.(Nm/ft.lb)

12,000 / 8,850

Accessories

Type Description
KM 691 8t
adapter plate for specific solutions – up to 8t/17,600lbs
KM 690 8t
adapter for rigid mounting – up to 8t/17,600lbs
OQ45/4 rigid
bolt-on adapter for Oilquick OQ45 – up to 12t/26,400lbs
KSW03 rigid
bolt-on adapter for system L-Lock KMS03L/KHS03L for rigid mounting – up to 6t/13,200lbs
KSW08 rigid
bolt-on adapter for system L-Lock KMS08L/KHS08L for rigid mounting – up to 12t/26,400lbs
adapters for quick change systems from other manufacturers or di¸erent sizes on request
KM 980-2 2t-8t c
solenoid valve for additional circuit, up to 26MPa/3,770psi, incl. parts and mounting

Requirements of carrier machine

Operating pressure at pump capacity (open/close):

26 MPa (260 bar) at max. 75 l/min / 3,745 psi at max. 20 GPM

26 - 32 MPa (260 - 320 bar) at max. 40 l/min / 3,745 - 4,640 psi at max. 10.6 GPM

Operating pressure at pump capacity (rotate):

32 MPa (320 bar) at 20 - 50 l/min / 4,640 psi at 5.3 - 13 GPM

Technical drawings

diagram1
