MDE Scorpion Grapple Rake

In Stock

Designed to tackle tough jobs with ease, the MDE Scorpion Excavator Grab offers a powerful and adaptable solution for lifting, sorting, and clearing materials. Whether working in forestry, demolition, or general site handling, it delivers precise control and secure grip on logs, stone, and waste material.

Constructed from reinforced materials for intensive use, the Scorpion Grab is a reliable choice for professionals seeking efficiency without compromise.

Price range: £3,250.00 through £30,216.00

*
*
*

Share

MDE Scorpion Grapple Rake
MDE Scorpion Grapple Rake - Image 2
MDE Scorpion Grapple Rake - Image 3
MDE Scorpion Grapple Rake - Image 4
MDE Scorpion Grapple Rake - Image 5
MDE Scorpion Grapple Rake - Image 6
MDE Scorpion Grapple Rake - Image 7
MDE Scorpion Grapple Rake - Image 8

Suitable for excavators from
1.5T to 50T

Securely grips rocks, logs, scrap
& debris

Hardox® wear plate for extreme longevity

Powerful hydraulic cylinders

Perfect for forestry, demo & clearance

Quick & easy to set up with easy grease points

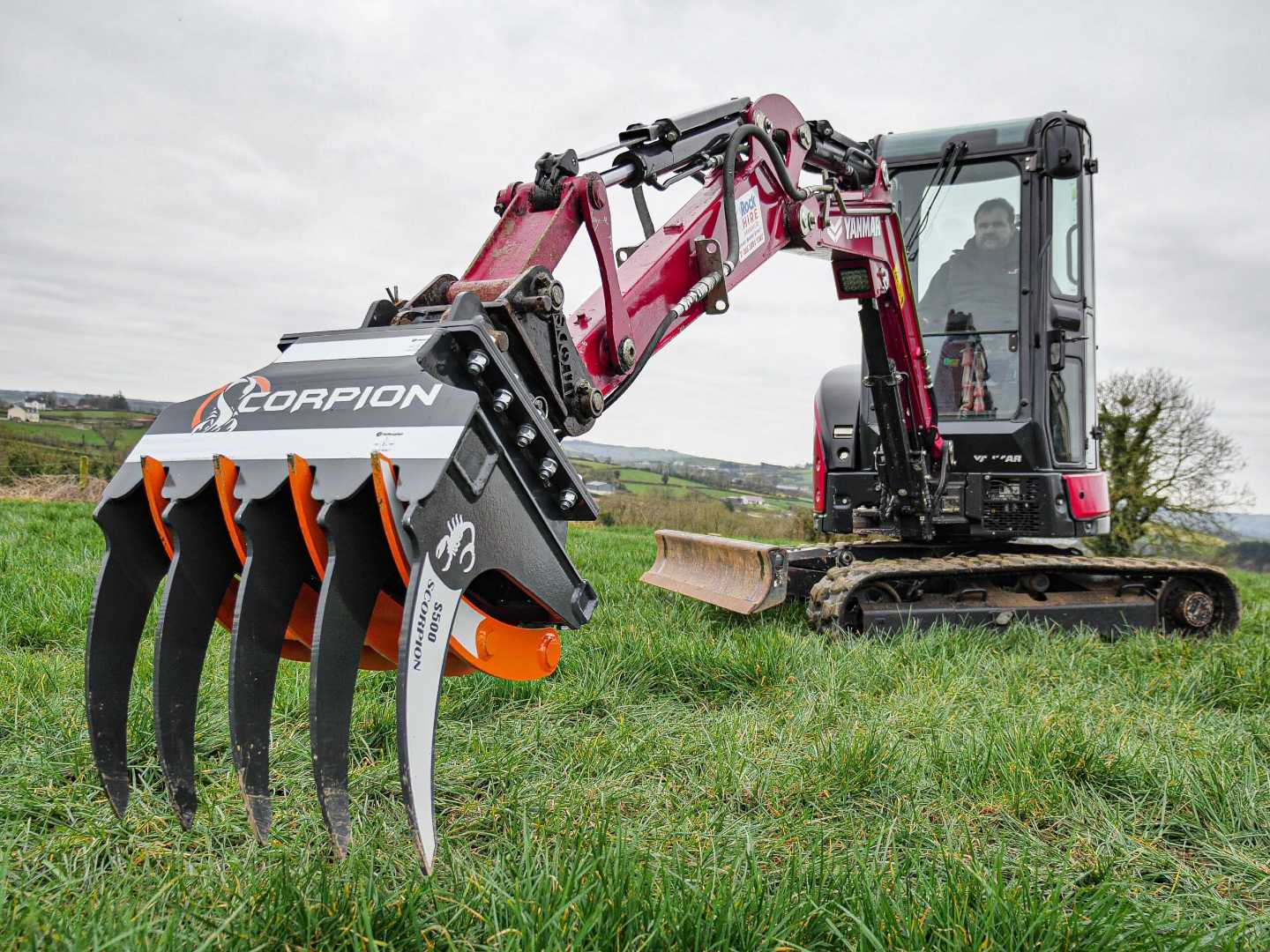

Scorpion S500

Compact yet powerful, the Scorpion S500 is designed for precision handling of smaller materials, making it perfect for tight spaces and lighter excavators.
  • Excavator Weight: 1.5t - 4t

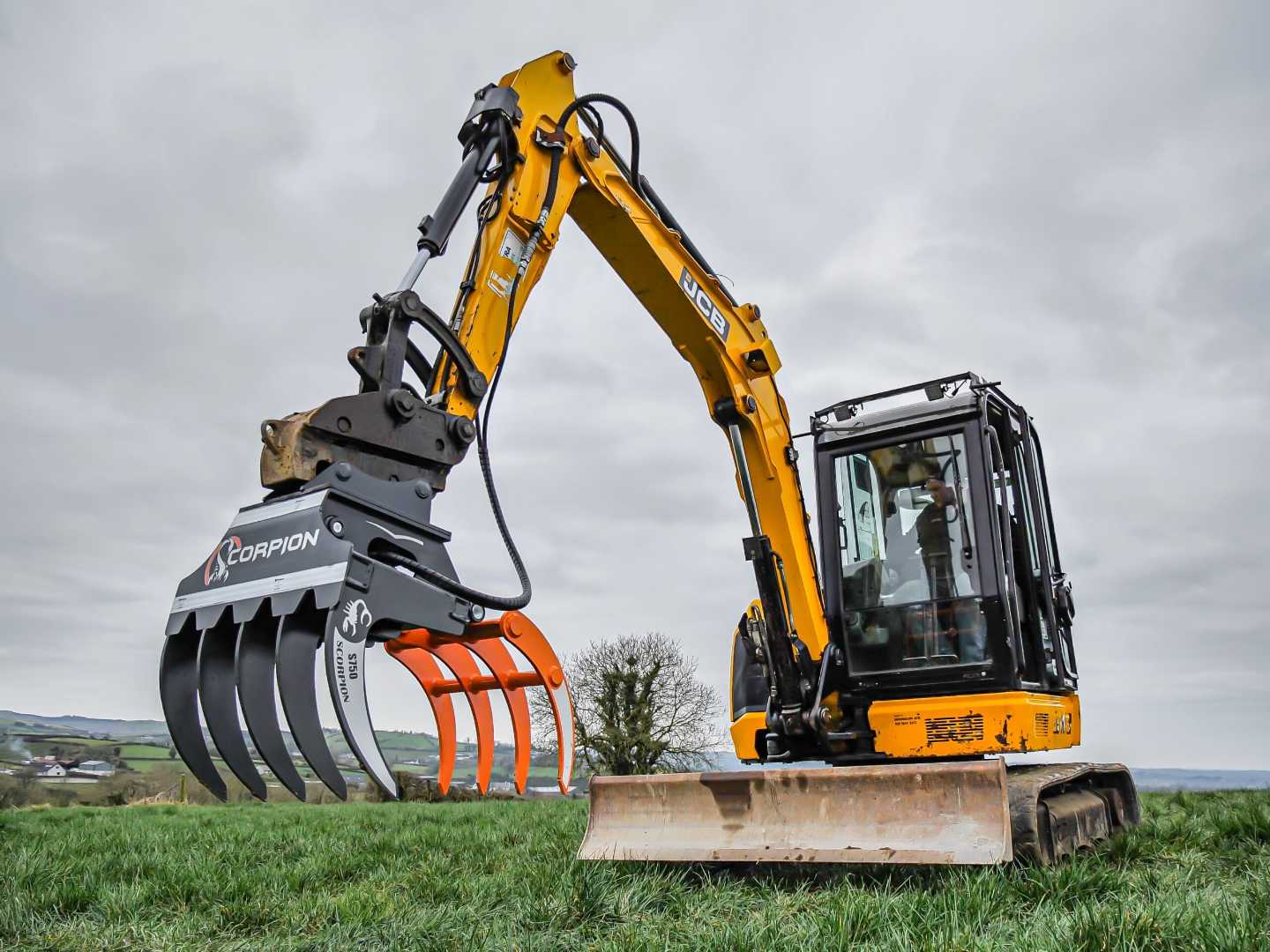

Scorpion S750

Offering increased strength and versatility, the Scorpion S750 excels in material handling, demolition, and forestry applications with enhanced gripping force.
  • Excavator Weight: 4t - 7t

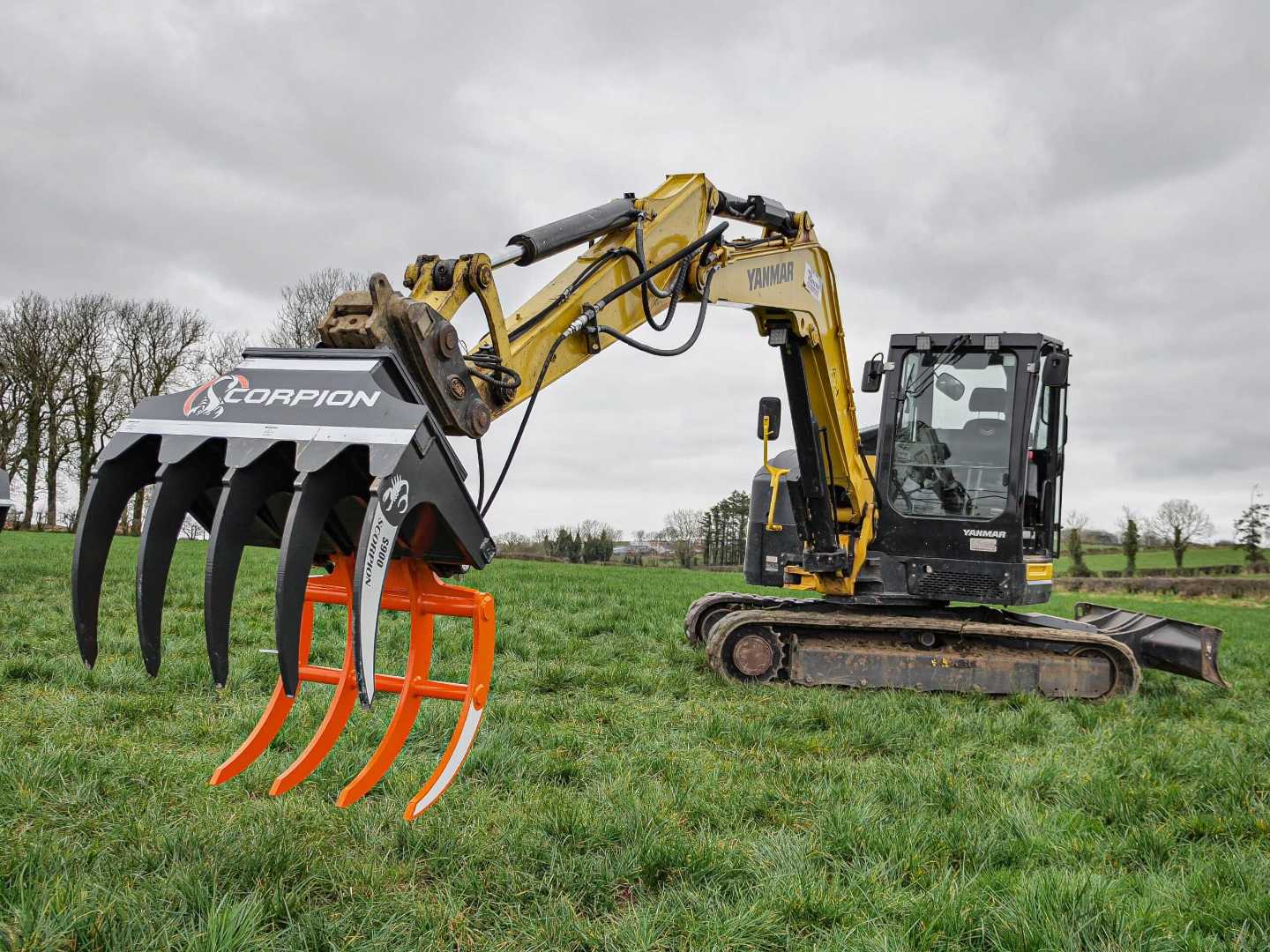

Scorpion S900

Built for mid-sized excavators, the Scorpion S900 delivers exceptional control and durability, making it ideal for handling logs, rocks, and debris.
  • Excavator Weight: 8t - 10t

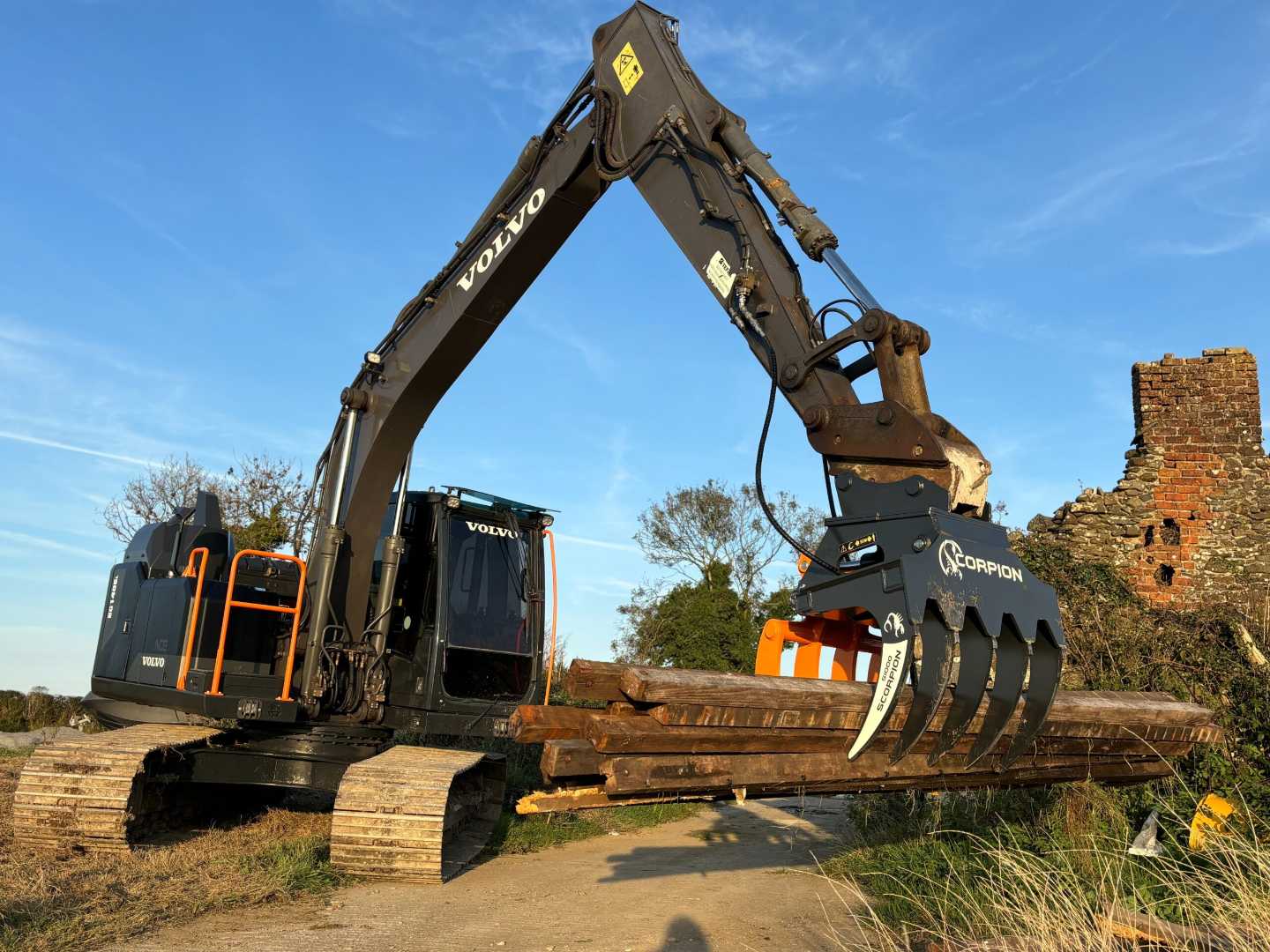

Scorpion S1000

The Scorpion S1000 provides a perfect balance of power and precision, ensuring secure handling of heavy materials in demanding work environments.
  • Excavator Weight: 10t - 14t

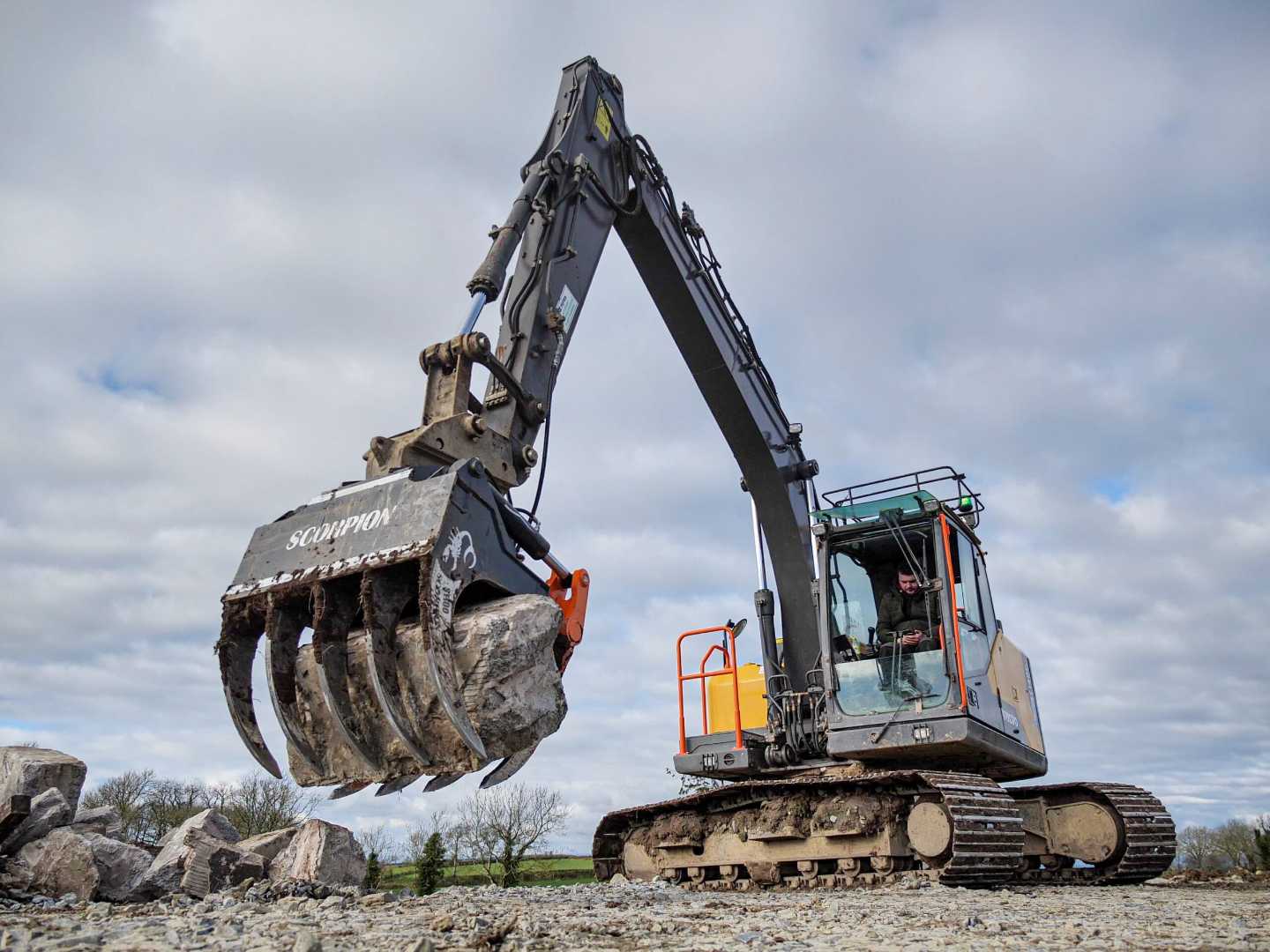

Scorpion S1100

With a robust build and superior gripping force, the Scorpion S1100 is engineered for heavy-duty material handling and demolition projects.
  • Excavator Weight: 14t - 21t

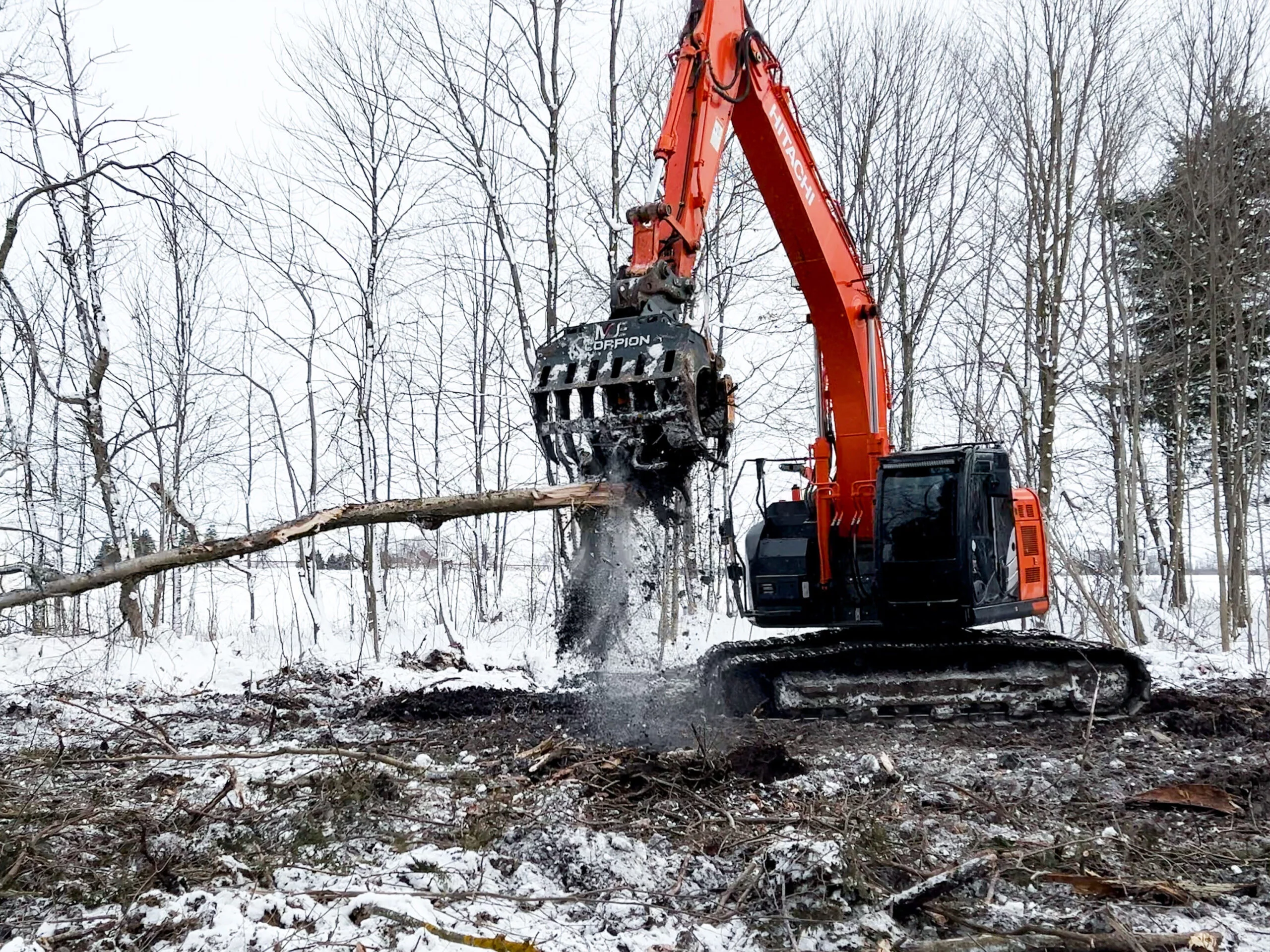

Scorpion S1600

Designed for large-scale operations, the Scorpion S1600 delivers maximum strength and durability, making it the ultimate attachment for high-demand applications.
  • Excavator Weight: 18t - 30t

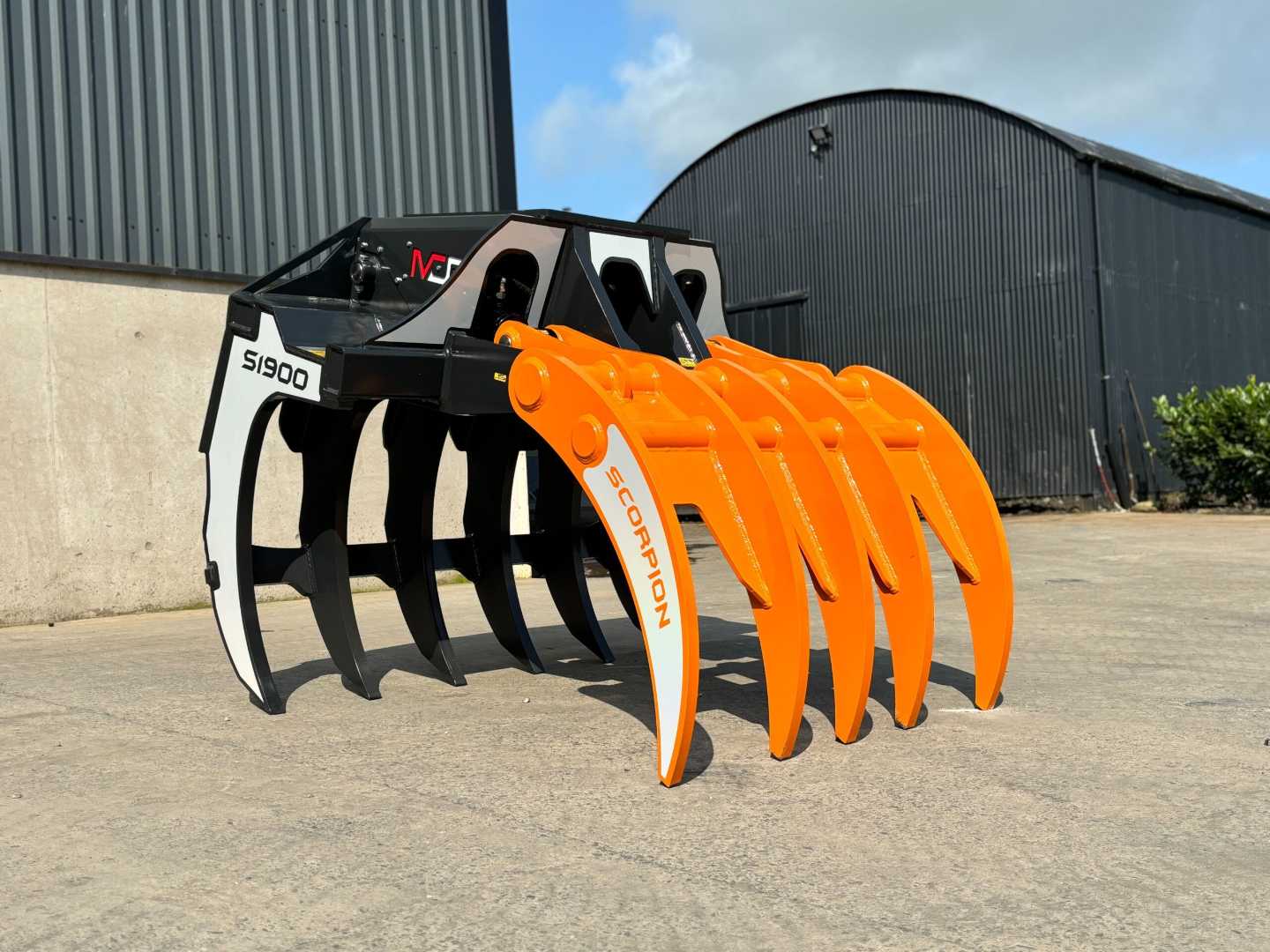

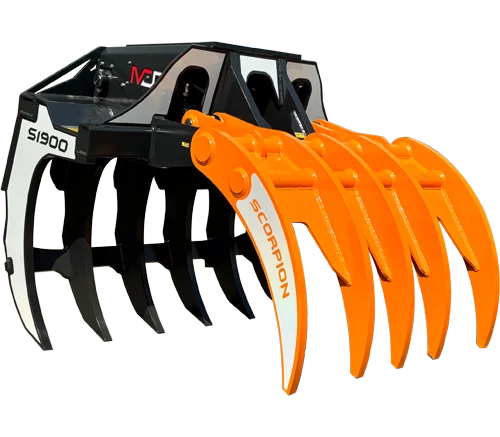

Scorpion S1900

The largest in the range, the Scorpion S1900 is built for extreme material handling, offering unmatched power and reliability for the toughest jobs.
  • Excavator Weight: 30t - 50t
Model Scorpion S500 Scorpion S750 Scorpion S900 Scorpion S1000 Scorpion S1100 Scorpion S1600 Scorpion S1900
Excavator Weight 1.5t - 4t 4t - 7t 8t - 10t 10t - 14t 14t - 21t 16t - 30t 30t - 50t
Attachment Width 500mm 750mm 900mm 1000mm 1100mm 1600mm 1900mm
Teeth Thickness 10mm 15mm 20mm 25mm 30mm 30mm 40mm
Teeth Separation 112mm 160mm 200mm 220mm 230mm 230mm 310mm
Teeth Depth 400mm 460mm 560mm 630mm 720mm 810mm 1000mm
Grapple Opening 670mm 780mm 930mm 1000mm 1300mm 1390mm 1560mm
Attachment Weight 125kg 270kg 410kg 660kg 1020kg 1600kg 3,170kg
Attachment Weight With Teeth N/A 290kg 430kg 685kg 1045kg 1690kg
Pressure (bar) 150 - 200 150 - 200 150 - 200 200 - 250 200 - 250 200 - 250 200 - 250
Flow (litre) 30 - 50 40 - 60 40 - 60 60 - 80 80 - 100 80 - 100 80 - 120
