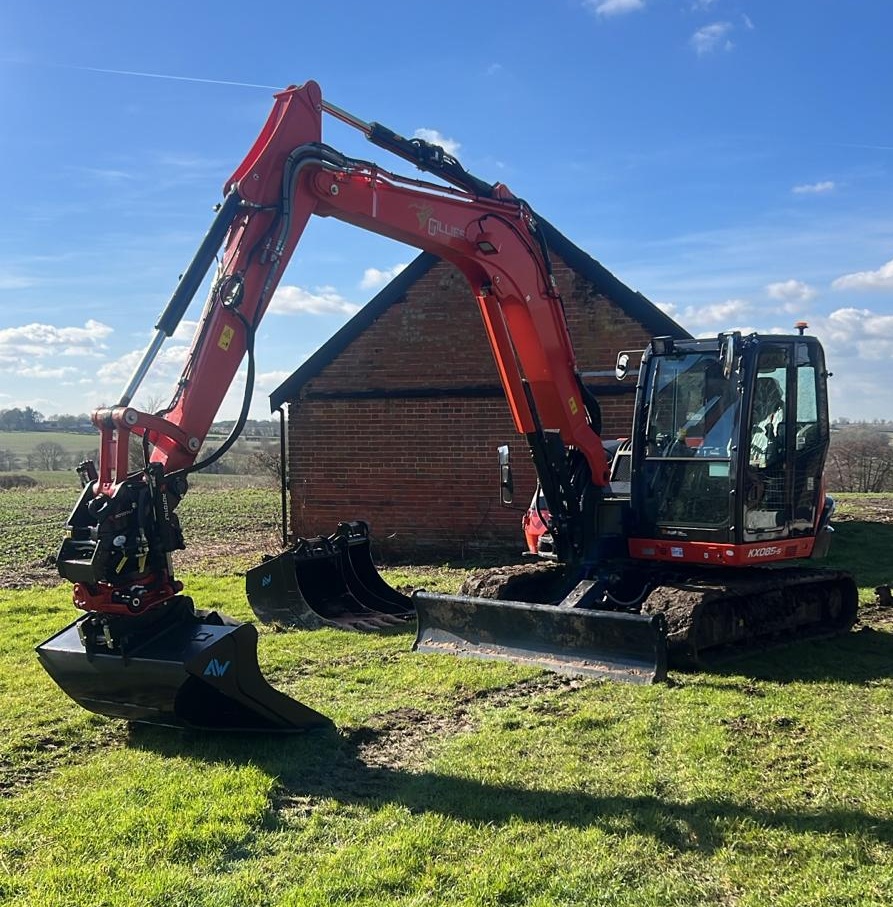

S45 Tiltrotator Buckets

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

Share

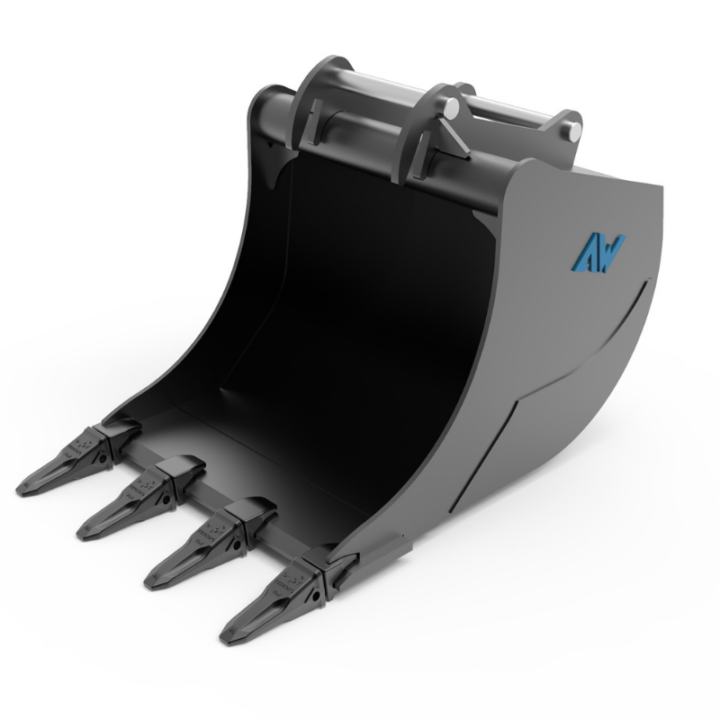

S Type Bucket Attachments Digging Bucket AttachWorx.png
S Type Bucket Attachments Cable Bucket AttachWorx.png
S Type Bucket Attachments Grading Bucket AttachWorx.png

300 CABLE BUCKET

front 9.png
side 6.png

NOTE:
STRUCK CAPACITY – 122 LITERS
HEAPED CAPACITY – 143 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
25
1
2
SIDE TOP PLATE
HB400
12
2
3
SIDE BOTTOM PLATE
HB400
6
2
4
ROLL SHEET
ST52.3
6
1
5
SIDE WEAR STRIP
HB400
5
2
6
TUBE
ST52.3
-
1
8
S40 PIN
EN8D
2
9
TOP PLATE
ST52.3
8
1
10
BOTTOM PLATE
ST52.3
8
1
11
ORIEL SUPPORT SIDE PLATE
ST52.3
8
2
12
ORIEL SUPPOR BOTTOM PLATE
ST52.3
5
2
13
BOTTOM WEAR STRIP
ST52.3
6
5
14
ACL LOGO
ST52.3
5
1
inner 3.png
diagram3 9.png
diagram2 9.png
diagram1 9.png

450 CABLE BUCKET

front 10.png
side 7.png

NOTE:
STRUCK CAPACITY – 185 LITERS
HEAPED CAPACITY – 220 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
25
1
2
SIDE TOP PLATE
HB400
12
2
3
SIDE BOTTOM PLATE
HB400
6
2
4
ROLL SHEET
ST52.3
6
1
5
SIDE WEAR STRIP
HB400
5
2
6
TUBE
ST52.3
-
1
7
EART PLATE
ST52.3
15
2
8
S45 PIN
EN8D
2
9
TOP PLATE
ST52.3
8
1
10
BOTTOM PLATE
ST52.3
8
1
11
BOTTOM WEAR STRIP
HB400
6
5
12
ACL LOGO
ST52.3
5
2
inner 4.png
diagram3 10.png
diagram2 10.png
diagram1 10.png

600 DIGGING BUCKET

front 11.png
diagram1 11.png

NOTE:
STRUCK CAPACITY – 199 LITERS
HEAPED CAPACITY – 229 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
200 x 25
1
2
ROLL SHEET
ST52.3
6mm
1
3
SIDE TOP PLATE LH
HB400
12mm
1
4
SIDE TOP PLATE RH
HB400
12mm
1
5
SIDE BOTTOM PLATE LH
HB400
6mm
1
6
SIDE BOTTOM PLATE RH
HB400
6mm
1
7
TOP PLATE
ST 52.3
8mm
1
8
BOTTOM PLATE
ST52.3
6mm
1
9
SIDE WEAR STRIP
HB400
4mm
2
10
TUBE
ST 52.3
Ø114 x Ø89
1
11
TUBE GUSSET
ST52.3
12mm
2
12
WEAR STIFFNER 1
HB400
6mm
2
13
WEAR STIFFNER 2
HB400
6mm
3
14
EAR PLATE LH
ST52.3
20mm
1
16
S45 PIN
EN8D
Ø45
2
17
EAR PLATE SUPPORT
ST52.3
12mm
2
18
6Y3254 ADAPTOR
Iron, Cast
-
3
19
1U3252RC DT TOOTH PIONT
Iron, Cast
-
3
20
ATTACHMENT LLC LOGO
ST52.3
5mm
2
23
EAR PLATE LH
ST52.3
20mm
1
back 8.png
diagram2 11.png
inner 5.png
diagram3 11.png
diagram4 4.png

800 DIGGING BUCKET

front 12.png
back 9.png

NOTE:
STRUCK CAPACITY – 274 LITERS
HEAPED CAPACITY – 315 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
200 x 25
1
2
ROLL SHEET
ST52.3
6mm
1
3
SIDE TOP PLATE LH
HB400
10mm
1
4
SIDE TOP PLATE RH
HB400
10mm
1
5
SIDE BOTTOM PLATE LH
HB400
6mm
1
6
SIDE BOTTOM PLATE RH
HB400
6mm
1
7
TOP PLATE
ST52.3
8mm
1
8
BOTTOM PLATE
ST52.3
6mm
1
9
SIDE WEAR STRIP
HB400
4mm
2
10
TUBE
ST 52.3
Ø114 x Ø89
1
11
TUBE GUSSET
ST 52.3
12mm
2
12
WEAR STIFFNER 1
HB400
6mm
2
13
WEAR STIFFNER 2
HB400
6mm
3
14
EAR PLATE SUPPORT
ST52.3
12mm
2
15
6Y3254 ADAPTOR
Iron, Cast
-
4
16
1U3252RC DT TOOTH PIONT
Iron, Cast
-
4
17
ATTACHMENT LLC LOGO
ST52.3
5mm
2
18
S45 PIN
EN8D
Ø45
2
19
EAR PLATE
ST52.3
20mm
2
diagram1 12.png
diagram2 12.png
inner 6.png
diagram3 12.png
diagram4 5.png

1000 DIGGING BUCKET

front 13.png
back 10.png

NOTE:
STRUCK CAPACITY – 397 LITERS
HEAPED CAPACITY – 461 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
200 x 25
1
2
ROLL SHEET
ST52.3
6mm
1
3
SIDE TOP PLATE LH
HB400
12mm
1
4
SIDE TOP PLATE RH
HB400
12mm
1
5
SIDE BOTTOM PLATE LH
HB400
6mm
1
6
SIDE BOTTOM PLATE RH
HB400
6mm
1
7
TOP PLATE
ST52.3
8mm
1
8
BOTTOM PLATE
ST52.3
6mm
1
9
SIDE WEAR STRIP
HB400
4mm
2
10
TUBE
ST 52.3
Ø114 x Ø89
1
11
TUBE GUSSET
ST52.3
12mm
2
12
WEAR STIFFNER 1
HB400
6mm
2
13
WEAR STIFFNER 2
HB400
6mm
2
14
EAR PLATE SUPPORT
ST52.3
12mm
2
15
6Y3254 ADAPTOR
Iron, Cast
-
5
16
1U3252RC DT TOOTH PIONT
Iron, Cast
-
5
17
ATTACHMENT LLC LOGO
ST52.3
5mm
2
18
S45 PIN
EN8D
Ø45
2
19
EAR PLATE
ST52.3
20mm
2
diagram1 13.png
diagram2 13.png
inner 7.png
diagram3 13.png
diagram4 6.png

1400 DIGGING BUCKET

front 14.png
inner 8.png

NOTE:
HEAPED CAPACITY – 423 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
200 x 1400 x 20
1
2
SIDE TOP PLATE-LH
HB400
16
1
3
SIDE TOP PLATE-RH
HB400
16
1
4
ROLL SHEET
ST52.3
8
1
5
SIDE BOTTOM PLATE-LH
HB400
8
1
6
SIDE BOTTOM PLATE RH
HB400
8
1
7
TUBE
ST52.3
OD-101 x ID-84
1
8
TOP PLATE
ST52.3
16
1
9
SUPPORT PLATE-02
ST52.3
8
1
10
BOTTOM WEAR STRIP-1
HB400
8
1
11
BOTTOM WEAR STRIP-2
HB400
8
1
12
BOTTOM WEAR STRIP-3
HB400
8
1
13
BOTTOM WEAR STRIP-4
HB400
8
1
14
SPILL GUARD
ST52.3
6
1
15
SPILL GUARD SUPPORT
ST52.3
12
2
16
EAR PLATE
ST52.3
16
2
17
S-45 PIN
EN8D
DIA 45
2
18
ATTACHMENT LLC LOGO
ST52.3
5
2
19
EAR GUSSET
ST52.3
16
2
back 11.png
diagram1 14.png
diagram3 14.png
diagram2 14.png

1500 DIGGING BUCKET

front 15.png
inner 9.png

NOTE:
STRUCK CAPACITY – 340 LITERS
HEAPED CAPACITY – 434 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

PARTS LIST

ITEM
DESCRIPTION
MATERIAL
THICKNESS
QTY
1
CUTTING EDGE
HB400
200 x 1400 x 20
1
2
SIDE TOP PLATE-LH
HB400
16
1
3
SIDE TOP PLATE-RH
HB400
16
1
4
ROLL SHEET
ST52.3
8
1
5
SIDE BOTTOM PLATE-LH
HB400
8
1
6
SIDE BOTTOM PLATE-RH
HB400
8
1
7
TUBE
ST52.3
OD-101 x ID-84
1
8
TOP PLATE
ST52.3
16
1
9
SUPPORT PLATE-02
ST52.3
8
1
10
BOTTOM WEAR STRIP-1
HB400
8
1
11
BOTTOM WEAR STRIP-2
HB400
8
1
12
BOTTOM WEAR STRIP-3
HB400
8
1
13
BOTTOM WEAR STRIP-4
HB400
8
1
14
EAR PLATE
ST52.3
16
2
15
S-45 PIN
EN8D
DIA 45
2
16
GUSSET
ST52.3
16
2
17
SPILL GUARD
ST52.3
6
1
18
SPILL GUARD SUPPORT
ST52.3
12
2
19
ATTACHMENT LLC LOGO
ST52.3
5
2
back 12.png
diagram1 15.png
diagram2 15.png
diagram3 15.png
