S60 Tiltrotator Buckets

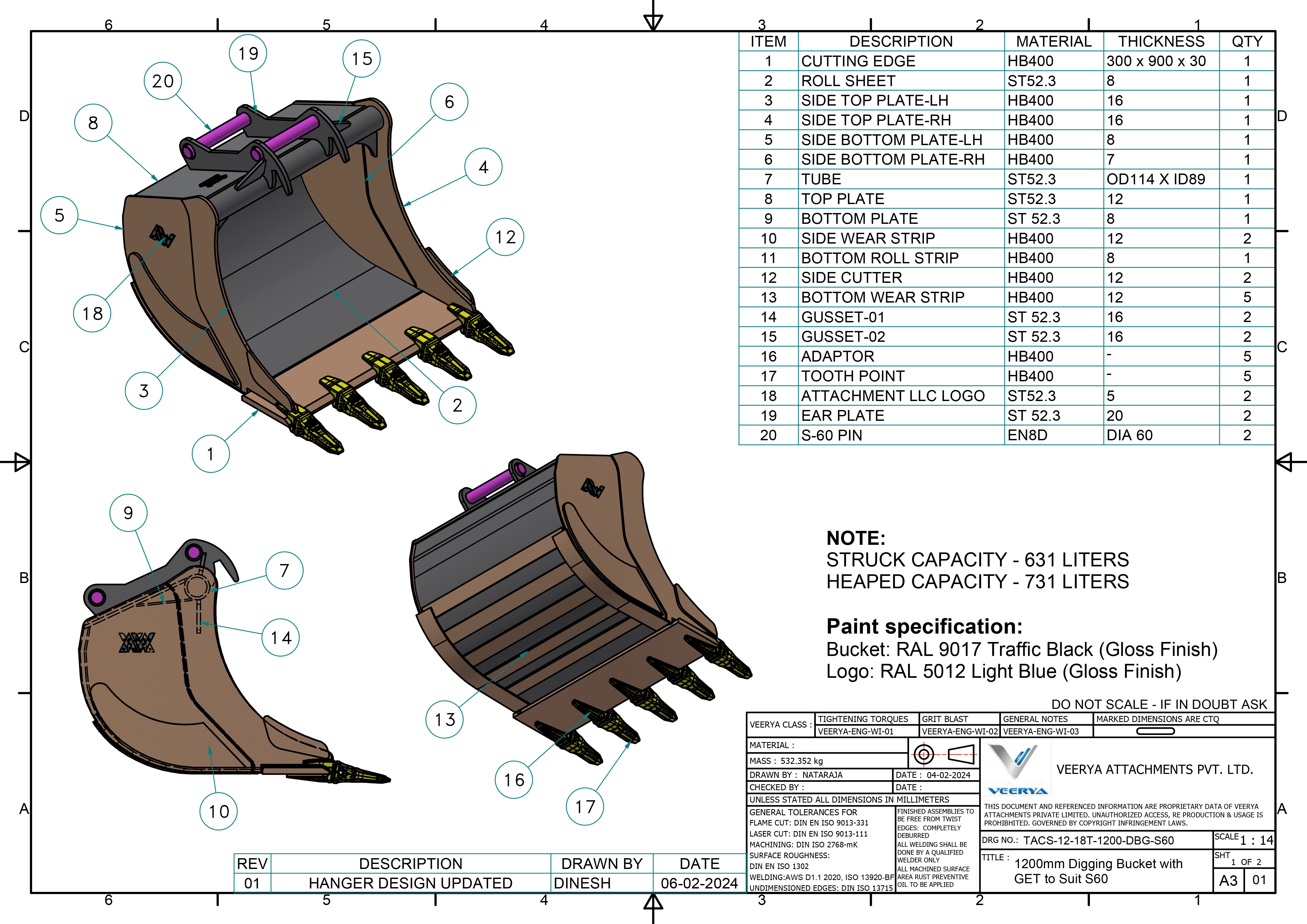

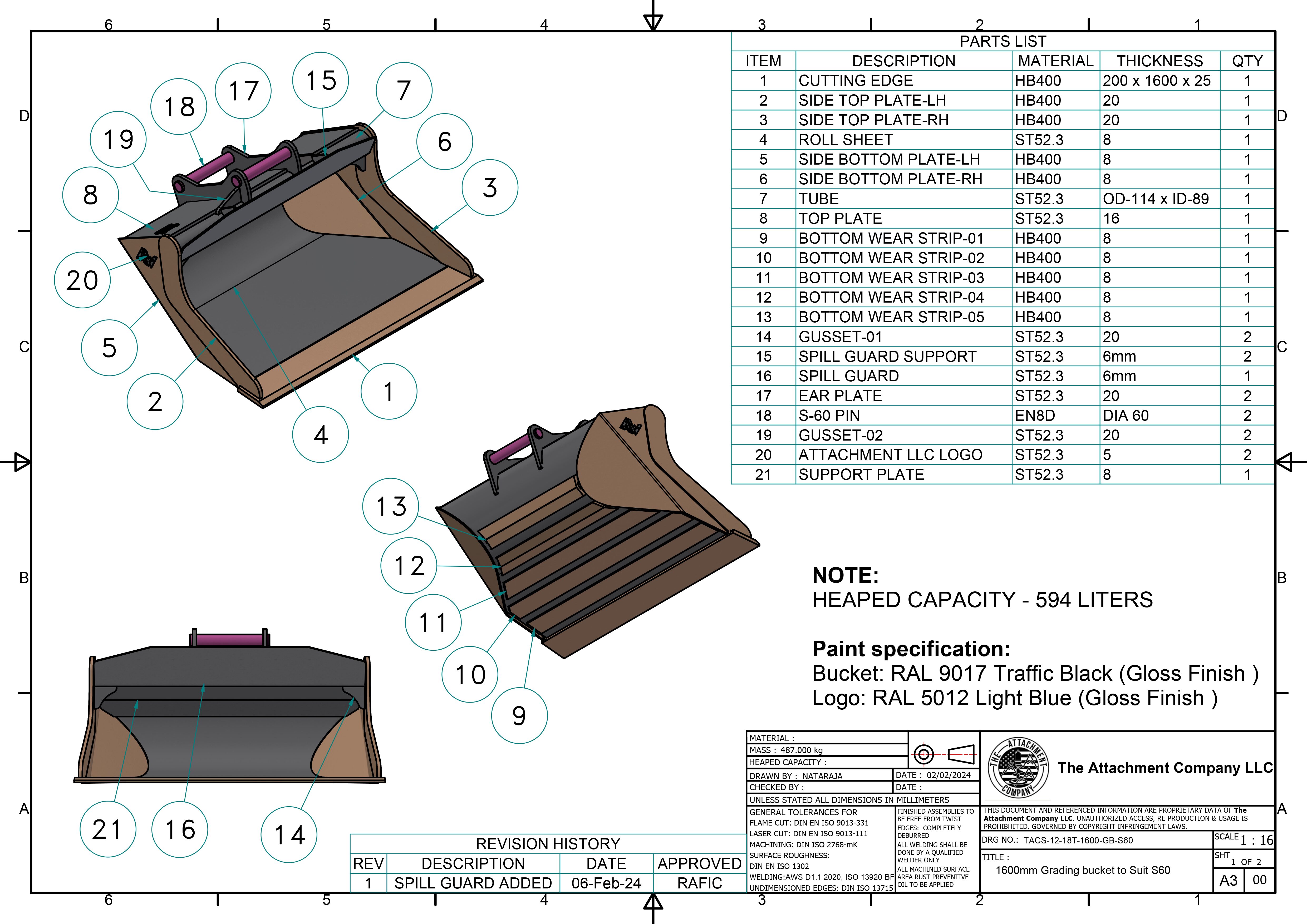

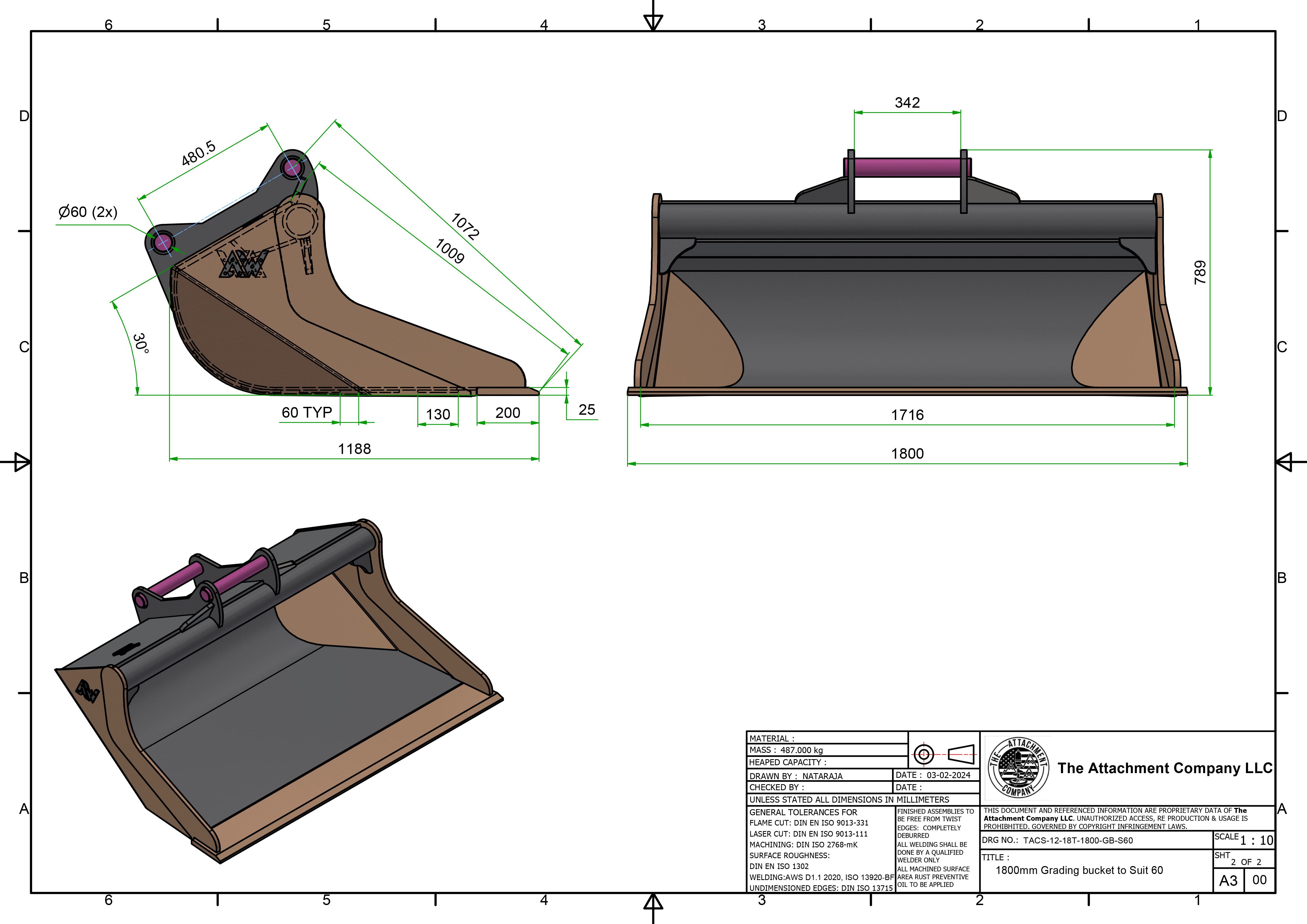

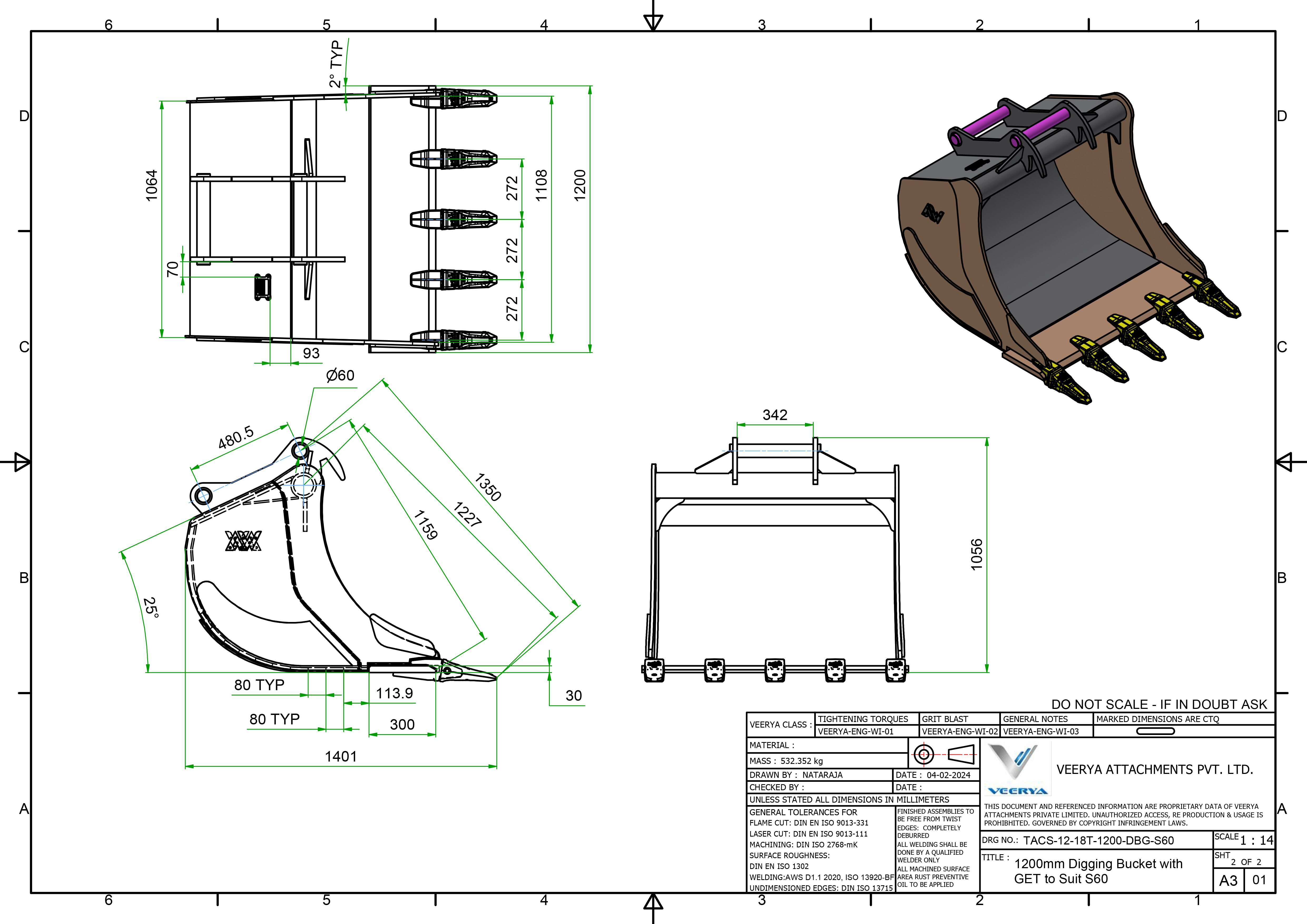

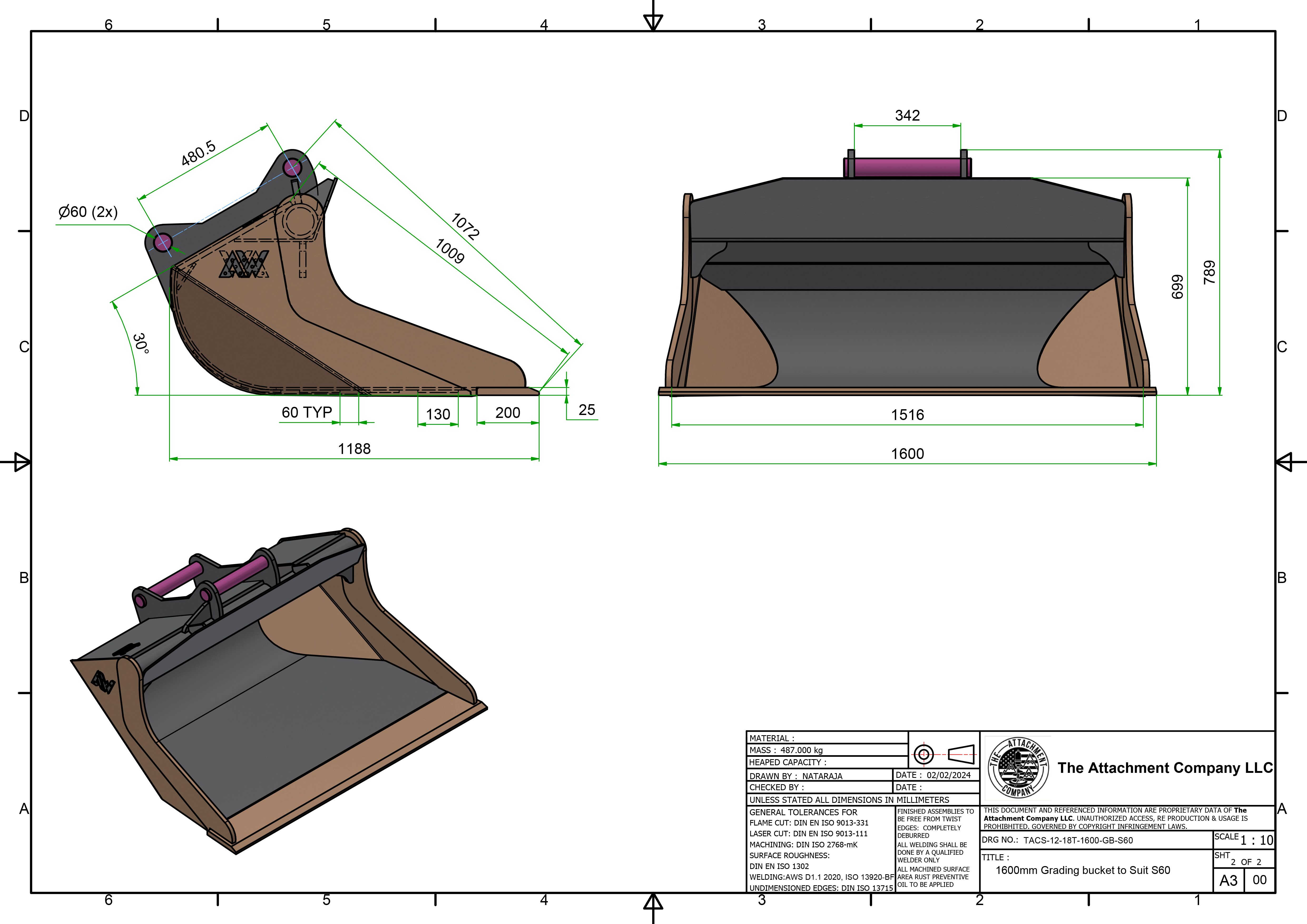

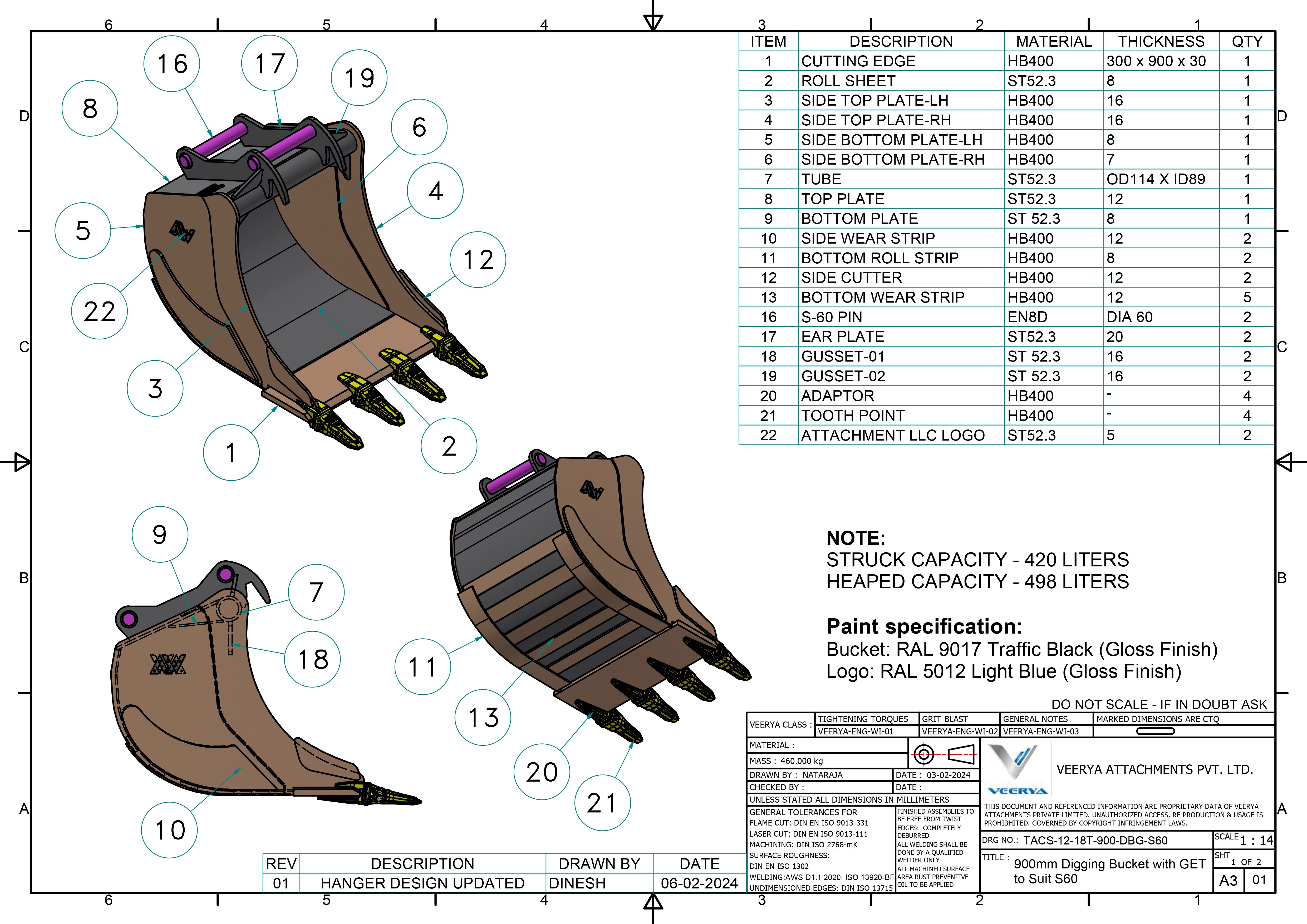

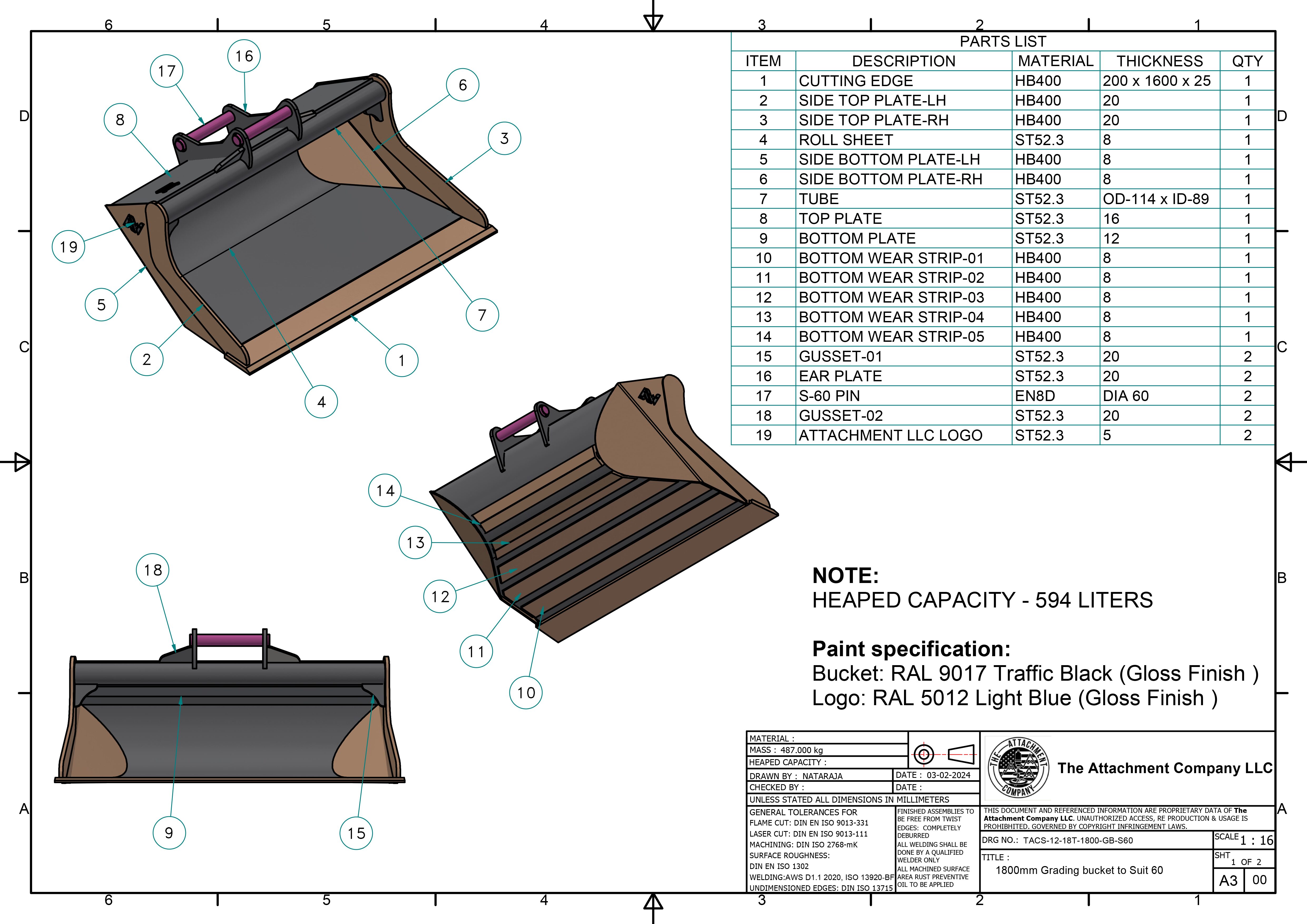

Bucket Size

Clear

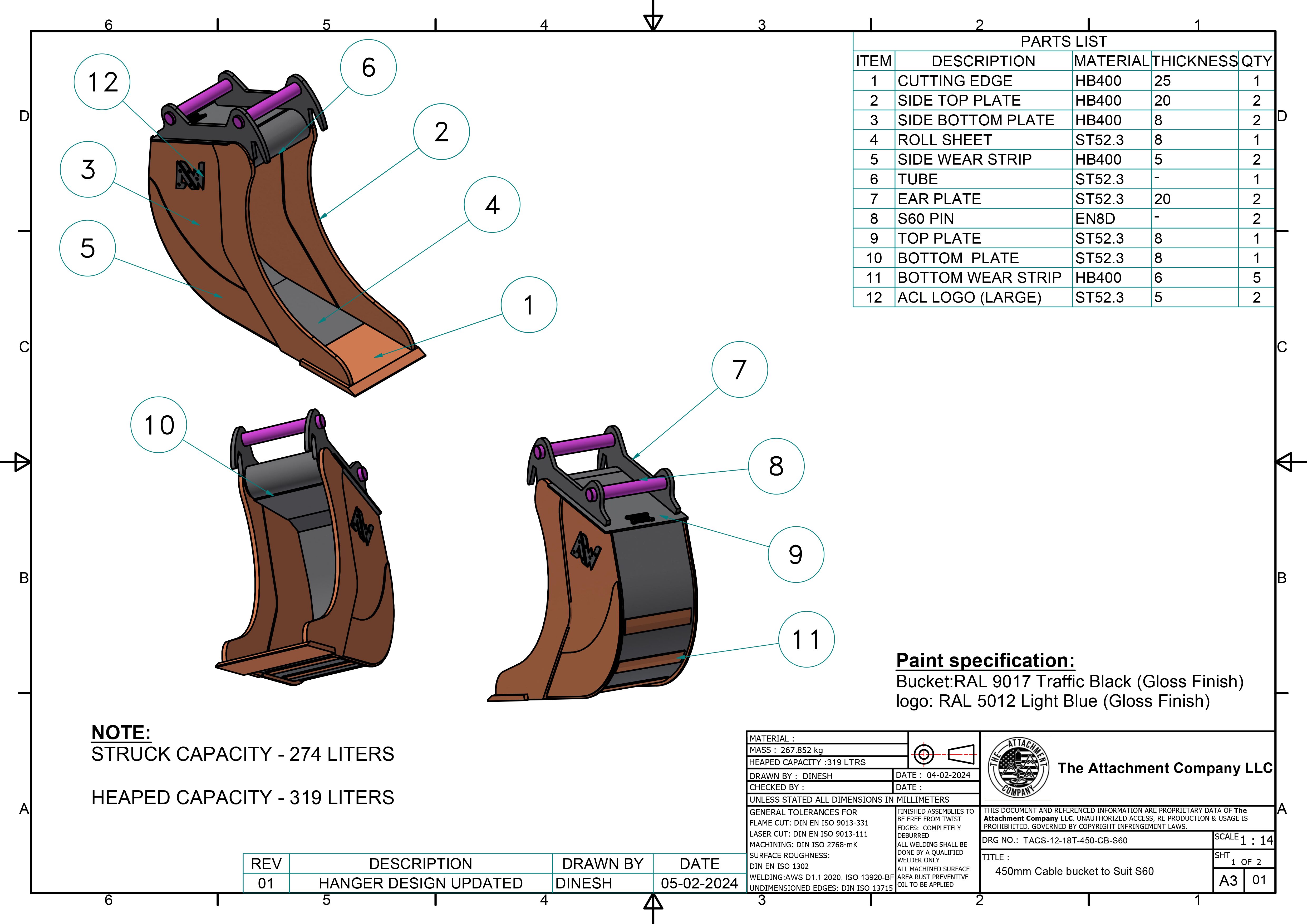

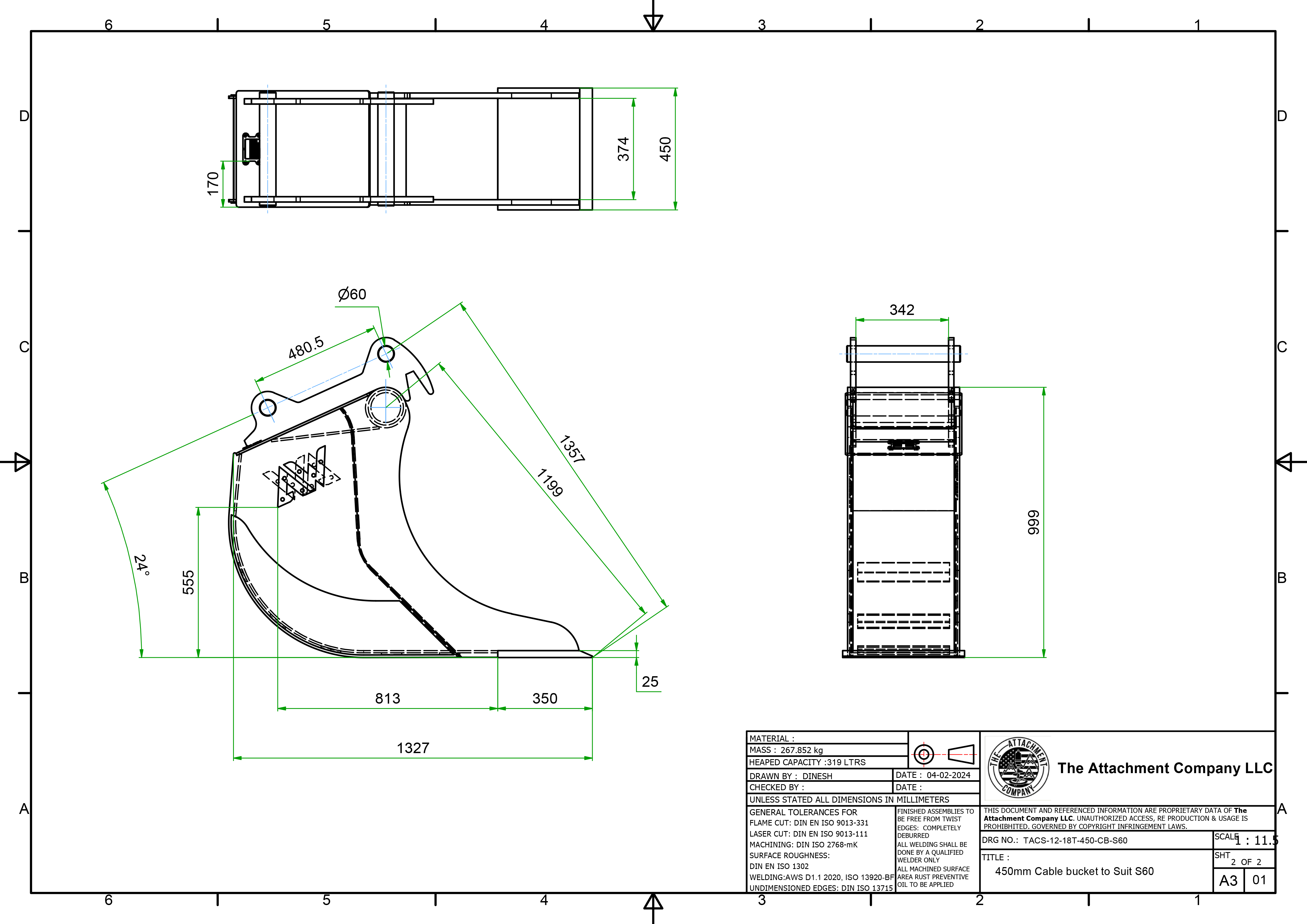

450 CABLE BUCKET

NOTE:
STRUCK CAPACITY – 54 LITERS
HEAPED CAPACITY – 66 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

ITEM	DESCRIPTION	MATERIAL	THICKNESS	QTY
1	CUTTING EDGE	HB400	25	1
2	SIDE TOP PLATE	HB400	12	2
3	SIDE BOTTOM PLATE	HB400	6	2
4	ROLL SHEET	ST52.3	6	1
5	SIDE WEAR STRIP	HB400	5	2
6	TUBE	ST52.3	-	1
8	S40 PIN	EN8D		2
9	TOP PLATE	ST52.3	8	1
10	BOTTOM PLATE	ST52.3	8	1
11	BOTTOM WEAR STRIP	HB400	6	5
12	ACL LOGO	ST52.3	5	2

NOTE:
STRUCK CAPACITY – 54 LITERS
HEAPED CAPACITY – 66 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

ITEM	DESCRIPTION	MATERIAL	THICKNESS	QTY
1	CUTTING EDGE	HB400	25	1
2	SIDE TOP PLATE	HB400	12	2
3	SIDE BOTTOM PLATE	HB400	6	2
4	ROLL SHEET	ST52.3	6	1
5	SIDE WEAR STRIP	HB400	5	2
6	TUBE	ST52.3	-	1
8	S40 PIN	EN8D		2
9	TOP PLATE	ST52.3	8	1
10	BOTTOM PLATE	ST52.3	8	1
11	BOTTOM WEAR STRIP	HB400	6	5
12	ACL LOGO	ST52.3	5	2

NOTE:
STRUCK CAPACITY – 87 LITERS
HEAPED CAPACITY – 106 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

ITEM	DESCRIPTION	MATERIAL	THICKNESS	QTY
1	CUTTING EDGE	HB400	25	1
2	SIDE TOP PLATE	HB400	12	2
3	SIDE BOTTOM PLATE	HB400	6	2
4	ROLL SHEET	Generic	6	1
5	SIDE WEAR STRIP	HB400	5	2
6	TUBE	ST52.3	-	1
8	S40 PIN	EN8D	-	2
9	TOP PLATE	ST52.3	8	1
10	BOTTOM PLATE	ST52.3	8	1
11	BOTTOM WEAR STRIP	HB400	6	5
12	ACL LOGO	ST52.3	5	2

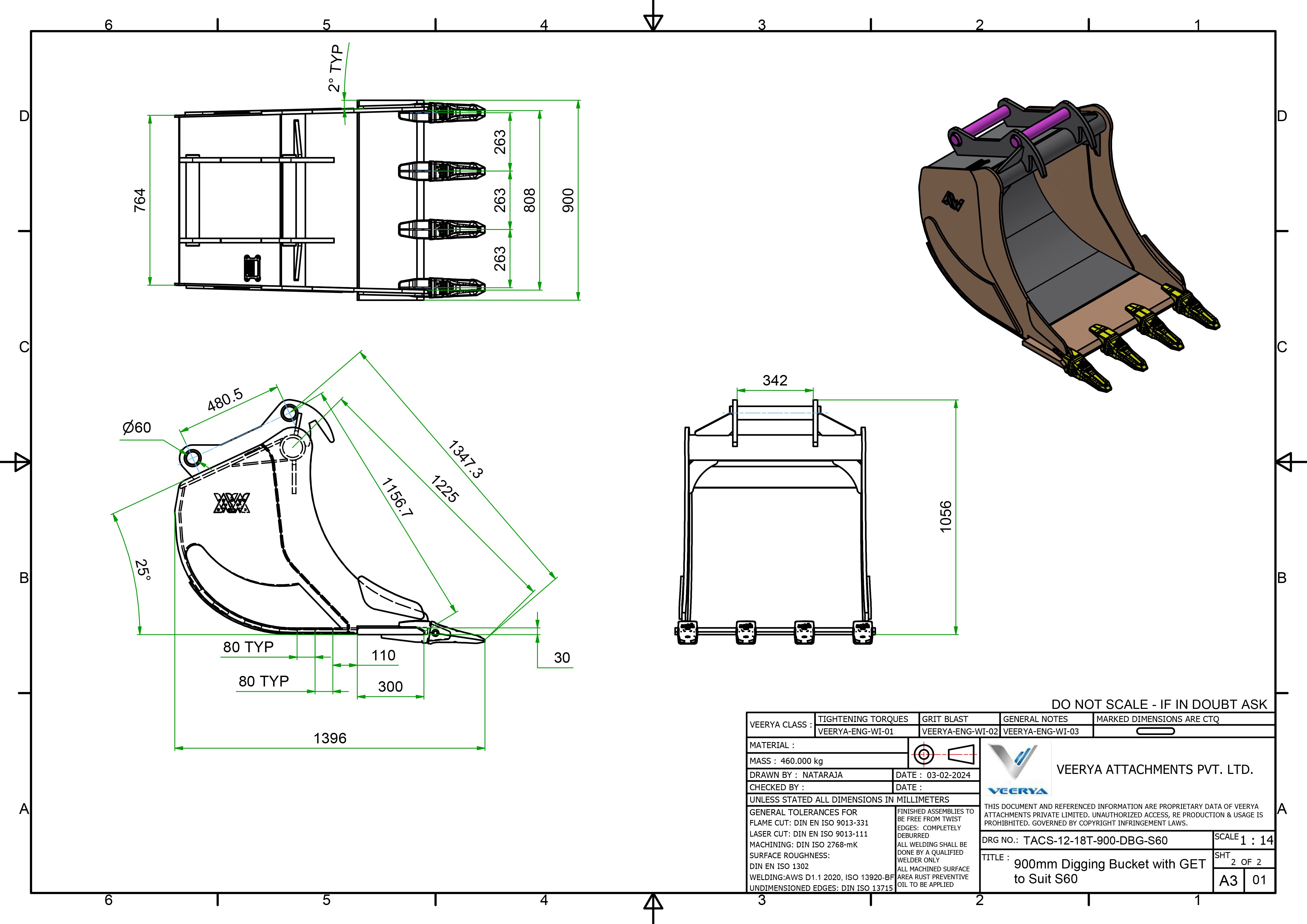

NOTE:
STRUCK CAPACITY – 151 LITERS
HEAPED CAPACITY – 178 LITERS

Paint specification:
Bucket:RAL 9017 Traffic Black (Gloss Finish)
logo: RAL 5012 Light Blue (Gloss Finish)

ITEM	DESCRIPTION	MATERIAL	THICKNESS	QTY
1	CUTTING EDGE	HB400	150 x 20mm	1
2	ROLL SHEET	ST52.3	6mm	1
3	SIDE TOP PLATE LH	HB400	10mm	1
4	SIDE TOP PLATE RH	HB400	10mm	1
5	SIDE BOTTOM PLATE LH	HB400	5mm	1
6	SIDE BOTTOM PLATE RH	HB400	5mm	1
7	TOP GUSSET PLATE	ST52.3	8mm	2
8	BOTTOM PLATE	ST52.3	6mm	1
9	SIDE GUSSE PLATE	ST52.3	6mm	2
10	SIDE STRIP	HB400	6mm	2
11	TUBE	ST52.3	Ø60 x Ø43mm	1
12	TOP PLATE	ST52.3	8mm	1
13	WEAR STIFFNER 1	HB400	6mm	2
14	WEAR STIFFNER 2	HB400	6mm	3
15	8J7525 ADAPTOR	CASTED	-	4
16	1U3202RC TOOTH	CASTED	-	4
20	ATTACHMENT LLC LOGO	ST52.3	5mm	2
17	EAR PLATE	ST 52.3	10mm	2
18	S40 PIN	EN8D	-	2
