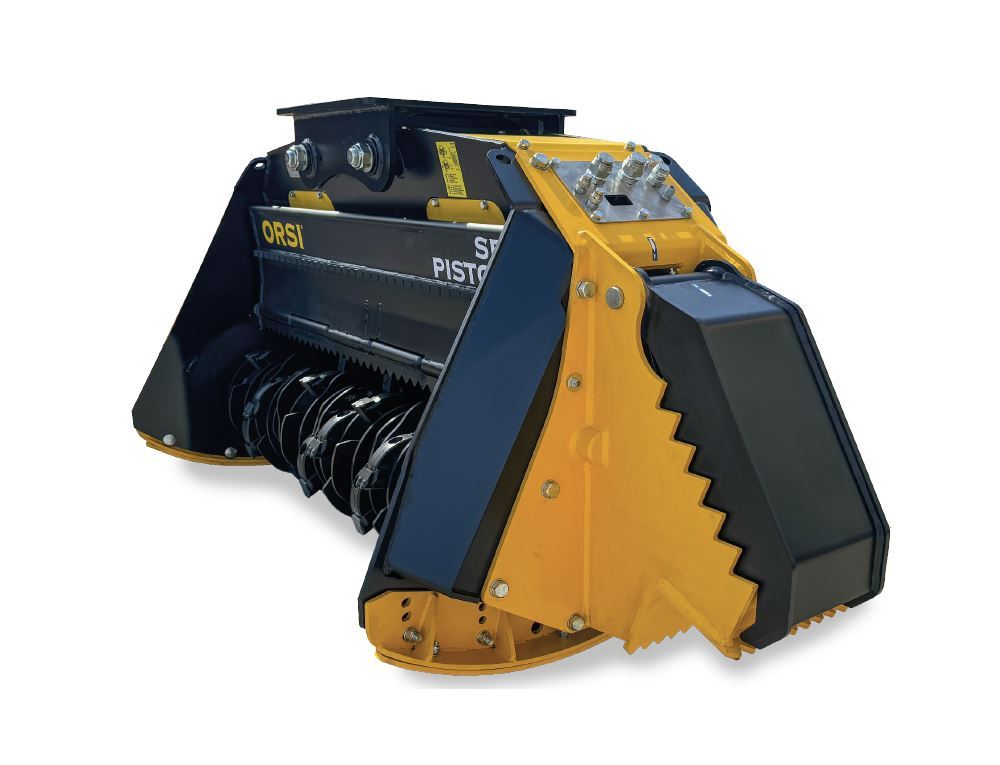

SP FTL PISTON 140

From 18 to 30 Ton

Share

Fully Enclosed Dustproof Frame Made of STRENX 700

Heavy-duty STRENX 700 construction provides superior strength, dust protection, and long-term durability in harsh working conditions.

Unidirectional Rotor Rotation

Optimized rotor direction for stable shredding performance and reduced stress on the cutting system.

Selecting Valve for Hood Cylinder Control

Integrated selecting valve enables smooth and precise adjustment of the hood cylinder for better material flow.

HARDOX Wear-Resistant Inner Frame

Reinforced inner structure in HARDOX steel ensures exceptional abrasion resistance and increased longevity.

Fixed Displacement Piston Engine Rexroth with External Drain

High-performance Rexroth piston engine with external drainage for improved cooling and hydraulic reliability.

ORSI V3.1-¾ Hydraulic System

Includes max-pressure valve, anti-cavitation valve, and flow divider. Comes with 3 connecting hoses. Max backpressure on drainage: 2 bar.

Technical Data

Machine

  • FULLY ENCLOSED DUSTPROOF FRAME MADE OF STRENX 700 Standard
  • HARDOX WEAR-RESISTANT INNER FRAME Standard
  • VARIABLE MULCHING CHAMBER (FRONT + REAR HYDRAULIC HOODS) Standard
  • MOTOR INTEGRATED INTO THE FRAME Standard
  • 3 ROWS OF COUNTER KNIVES Standard
  • HYDRAULIC FRONT HOOD Standard
  • FRONT BONNET OPENABLE HYDRAULICALLY – DOUBLE STATIC KNIFE IN HARDOX Standard
  • HYDRAULIC REAR HOOD Standard
  • FITTINGS FOR HYDRAULIC CONNECTIONS Standard
  • HYDRAULIC TAILGATE Standard
  • STANDARD SADLE (NO PINS) Optional
  • ADAPTERS Optional
  • THUMB BRACKET Optional
  • HYDRAULIC THUMB (REQUIRES THUMB BRACKET) Optional

Transmission

  • UNIDIRECTIONAL ROTOR ROTATION Standard
  • FIXED DISPLACEMENT PISTON ENGINE REXROTH WITH EXTERNAL Standard

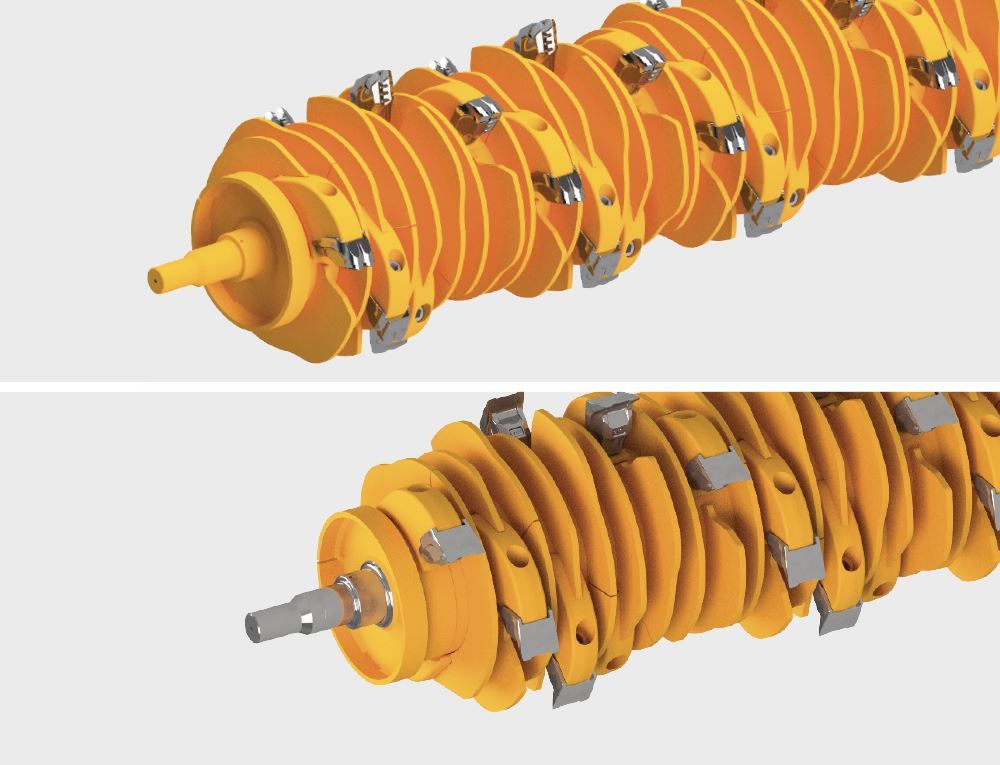

  • FLANGES TOOL LIMITER (FTL) ROTOR TECHNOLOGY Standard
  • TRANSMISSION WITH PULLEYS + QUAD-POWER® V-BELTS Standard
  • SPHERICAL ROLLER BEARINGS, DOUBLE SPHERE ROW Standard
  • EXTRA COST FOR ROTOR WITH HAMMERS Optional
  • ROTOR HAMMERS SIDE SCRAPER WITH TUNGSTEN CARBIDE Optional
  • REXROTH VARIABLE DISPLACEMENT AXIAL PISTON MOTOR CC 56/80 Optional

Hydraulic System

  • SELECTING VALVE FOR HOOD CYLINDER CONTROL Standard
  • ORSI V3.1 – ¾: MAX PRESSURE VALVE + ANTICAVITATION + FLOW DIVIDER (3 HOSES, MAX BACKPRESSURE 2 BAR) Standard
