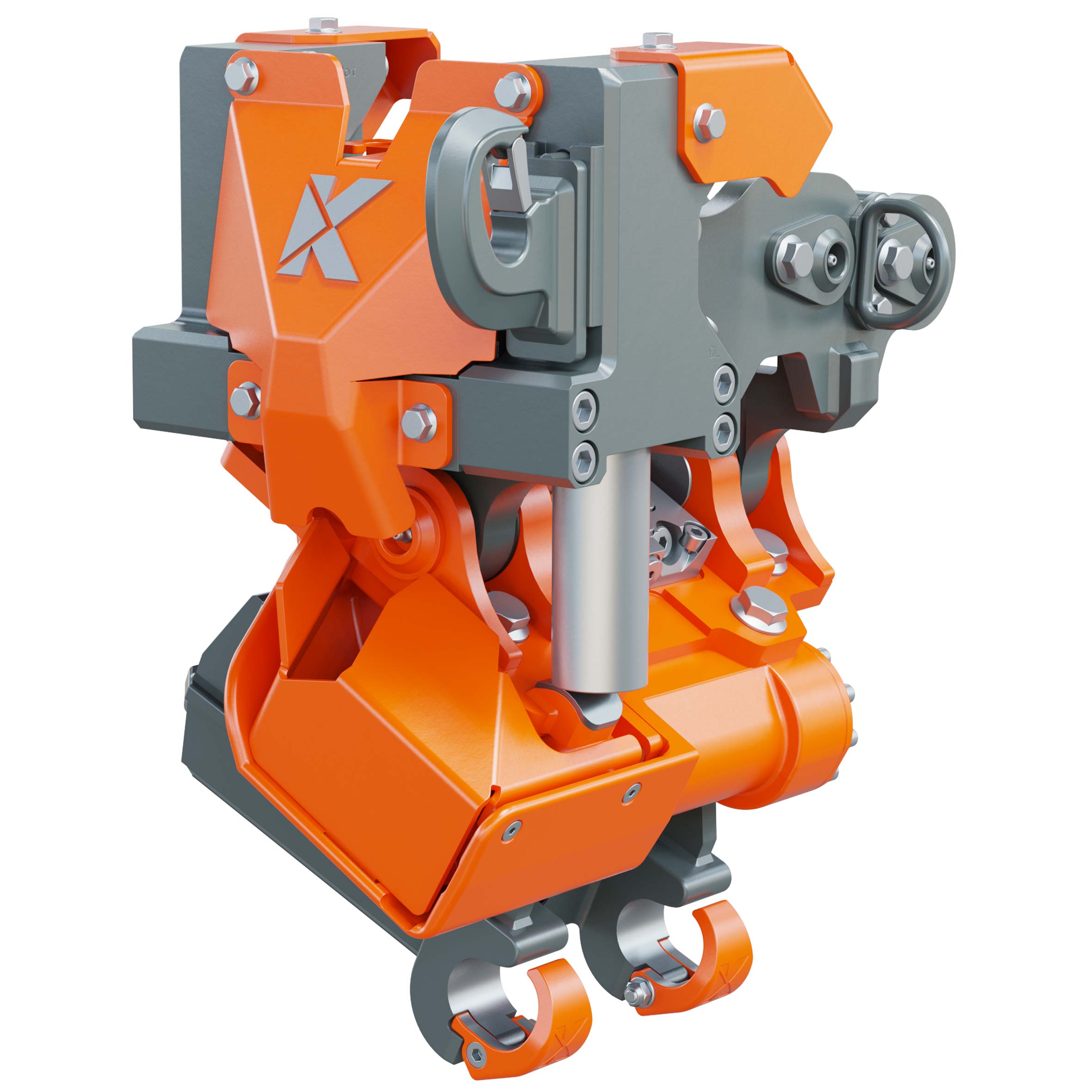

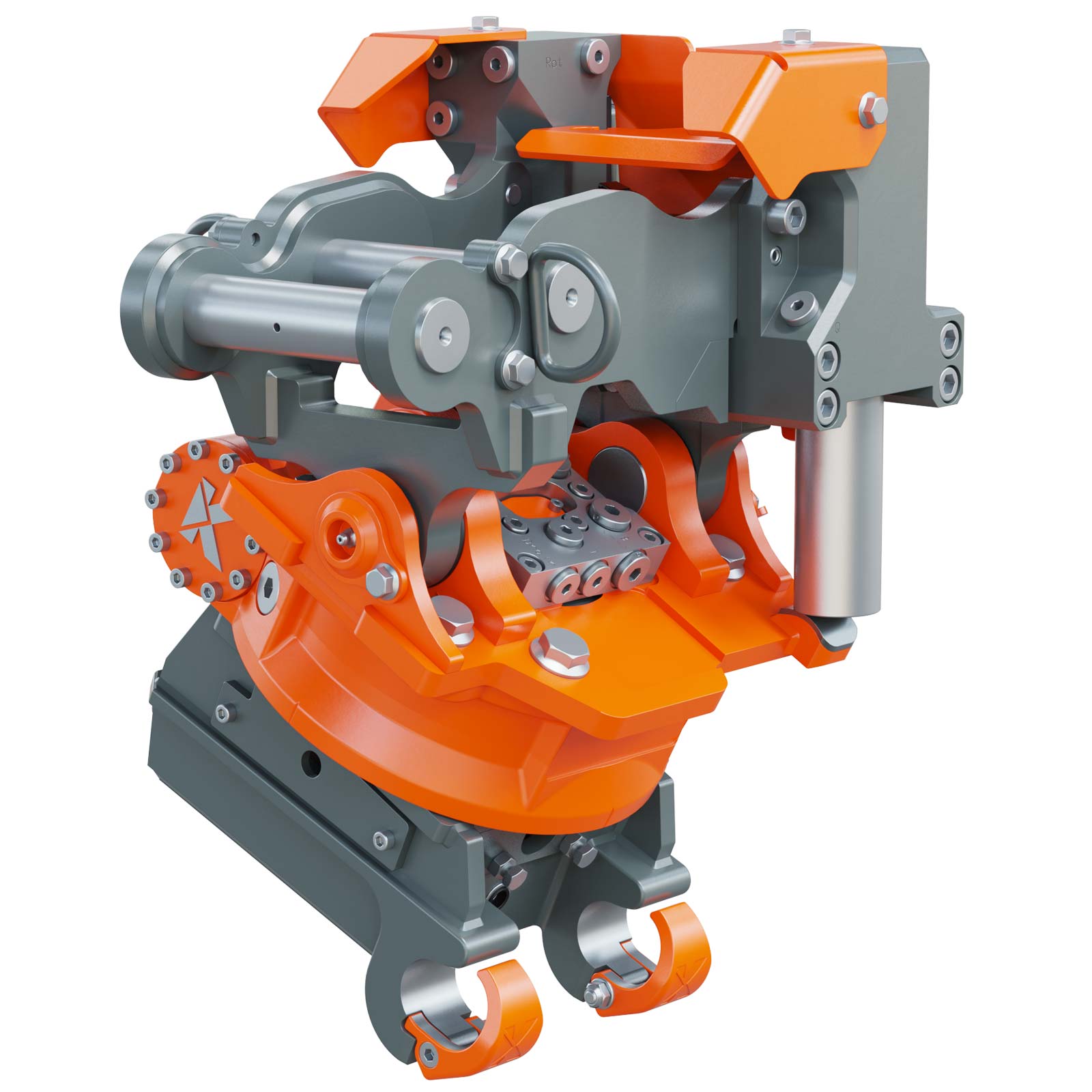

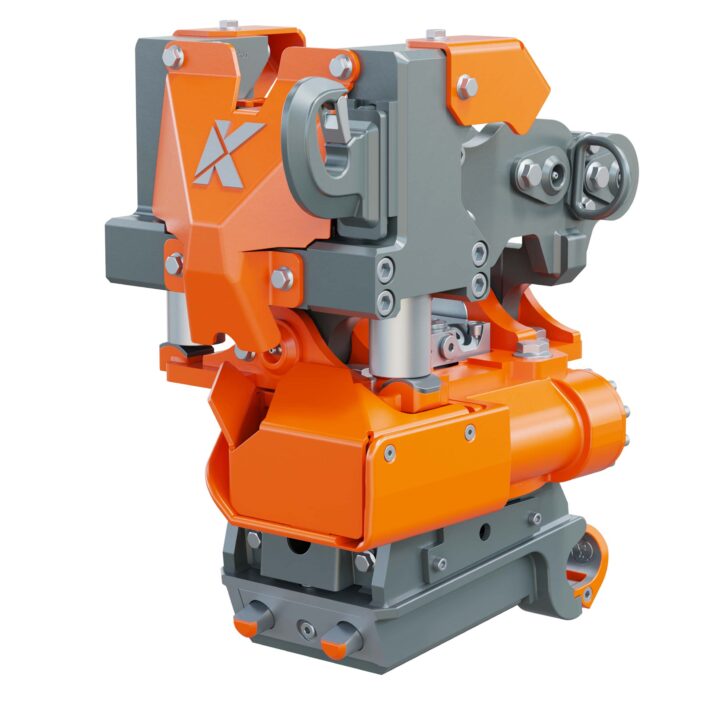

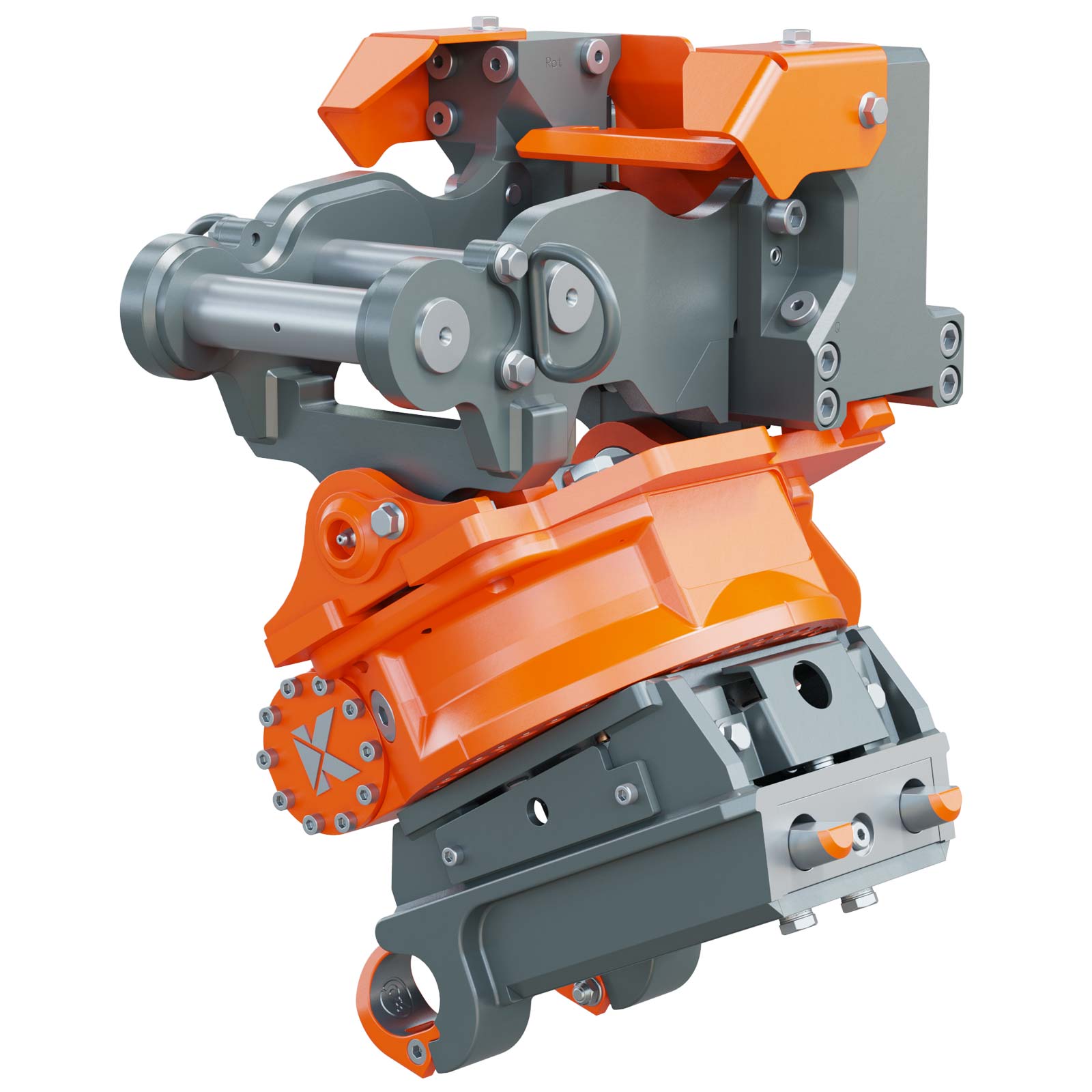

The TR025 tiltrotator features a slim, compact design with no protruding cylinders and a lightweight build. Its rotation is powered by a low-maintenance worm drive that operates fully in an oil bath, minimizing lubrication requirements. Hose connections are positioned directly on the tilt cylinders, and the unit has no external protruding parts.

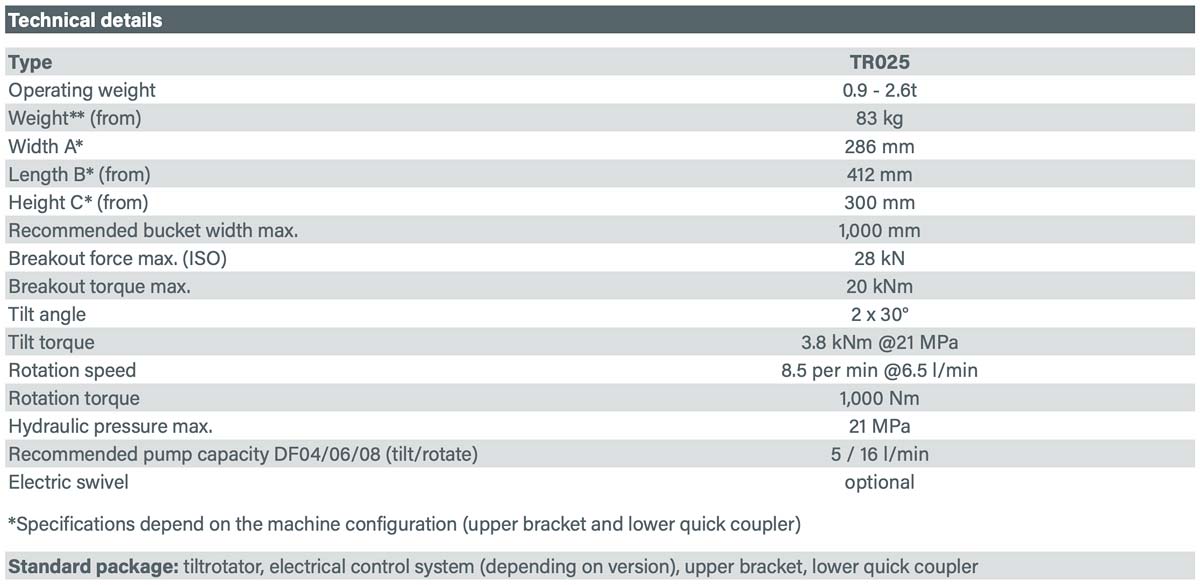

Datasheet:
Â
Compact Power. Maximum Flexibility.
Engineered with no protruding cylinders and minimal weight for improved maneuverability in tight spaces.
360° continuous rotation paired with a 2 × 30° tilt range, giving you unmatched control and precision.
Powered by a sealed worm drive running in an oil bath—fewer lubrication points and reduced downtime.
Hose connections mounted directly on tilt cylinders; no external components sticking out.
Exceptional swivel and holding torque plus a high-flow rotary feedthrough for smooth, efficient operation.
Ideal for mini excavators, the TR025 NOX Tiltrotator transforms every attachment into a multi-functional tool, boosting productivity and reducing job times.
The compact TR025 delivers a tilt range of 2 × 30° combined with 360° continuous rotation, significantly enhancing the versatility and productivity of any mini excavator attachment. It is distinguished by its powerful swivel and holding torque, along with a high-flow rotary feedthrough for optimal performance.
Reduce manual labor in hazardous areas and keep your team out of harm’s way. The TR025’s efficient performance cuts fuel consumption, lowers labor costs, and speeds up job completion — all while extending tool life. Its compact, streamlined design minimizes the risk of damage, even in tight or challenging environments.
Choose from a range of advanced control systems — DF4, DF6, DF8, and more — each precisely matched to your carrier and optimised for your workflow.
Unlock the full potential of your TR025 with Kinshofer’s range of high-quality attachments:
Ditch cleaning bucket, profile bucket, and cable bucket for precision and efficiency.
Multi-purpose grab (A02HPX) and demolition & sorting grab (D02HPX) — both featuring cylinderless designs for reduced maintenance and maximum durability.
