nox Flexibility

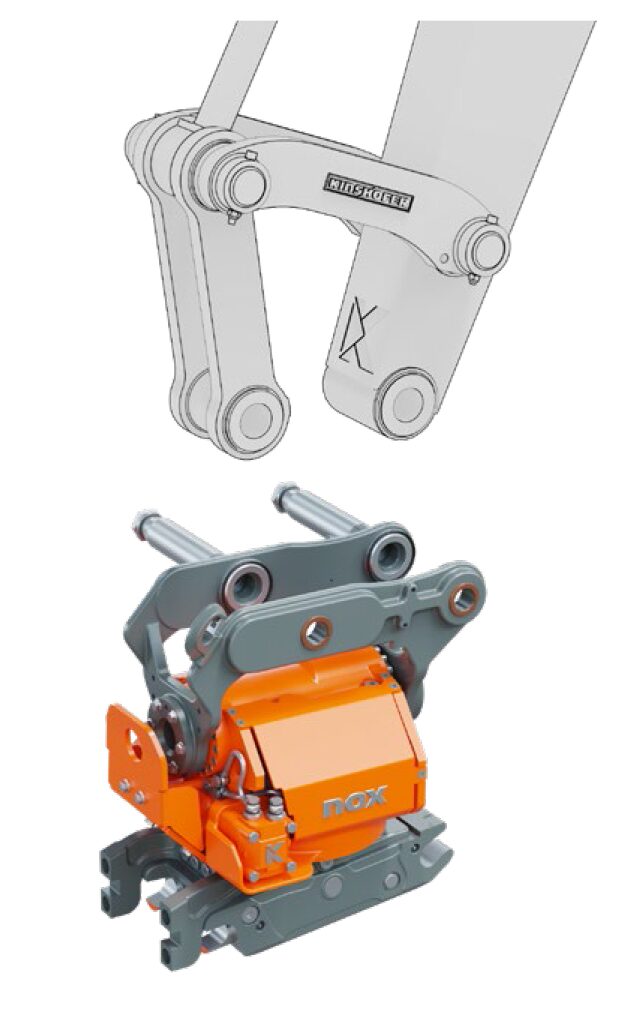

MOUNTING TO EXCAVATOR ARM

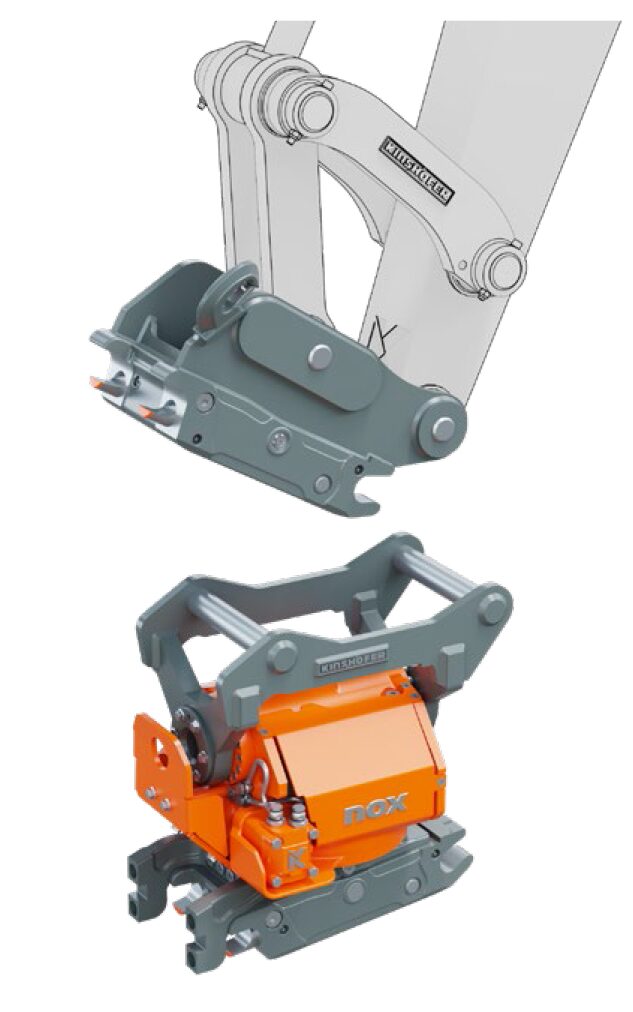

When mounting the NOX Tiltrotator directly to the excavator dipper, the tiltrotator can use its maximum force. The ”Sandwich” mounted Tiltrotator features a quick coupling adapter at the top to accept pick up by the machine coupler.
DIRECT MOUNT
> Lower height
> Higher force transmission
DIRECT MOUNT
> Can be used with different excavators of the same class
> Can be uncoupled to use attachments that do not require a Tiltrotator

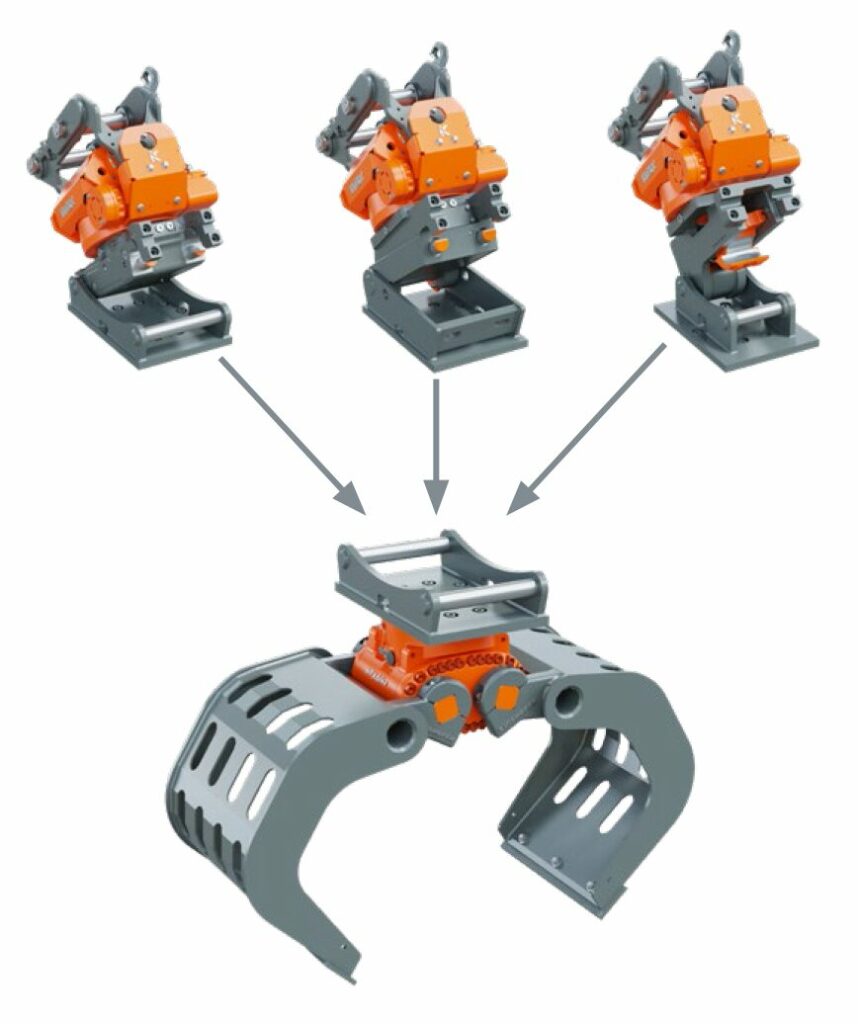

QUICK CHANGE ADAPTATIONS:
COMPATIBLE ADAPTATIONS FOR YOUR REQUIREMENTS
All attachments can be supplied with the compatible L-Lock, S-Lock or D-Lock adaptors. To ensure compatibility with your existing systems, Kinshofer also offers adaptations for all common quick change systems.
FULLY HYDRAULIC QUICK COUPLER SYSTEM

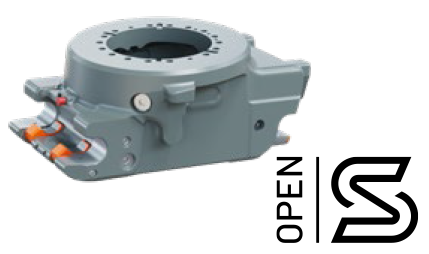

SYSTEM OPEN-S

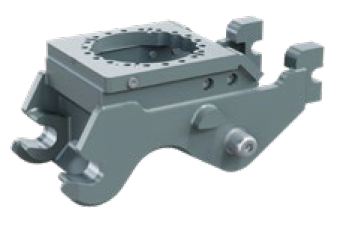

SYSTEM LIEBHERR & SYSTEM LIEBHERR + LIKUFIX

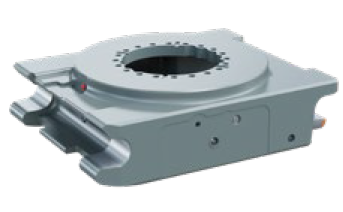

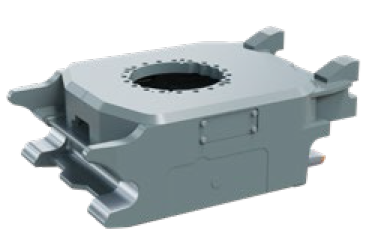

SYSTEM OILQUICK
HYDRAULIC QUICK COUPLER SYSTEM

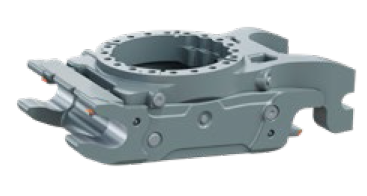

SYSTEM S-LOCK

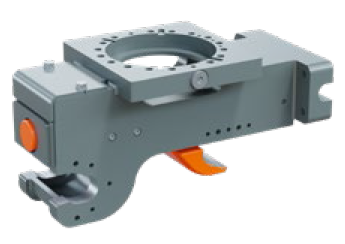

SYSTEM D-LOCK

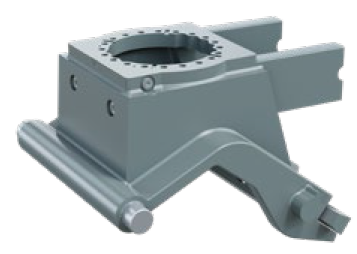

SYSTEM VERACHTERT

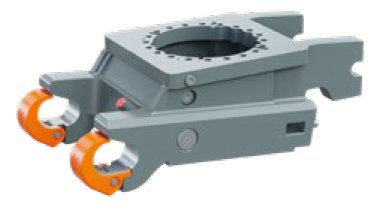

SYSTEM L-LOCK
SYSTEM OILQUICK

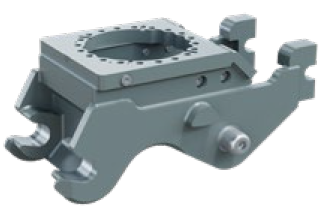

SYSTEM LIEBHERR
MECHANIC QUICK COUPLER SYSTEM

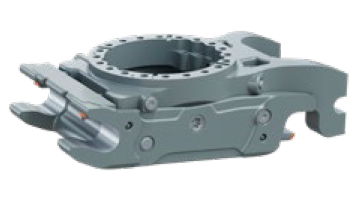

SYSTEM S-LOCK
SYSTEM OILQUICK

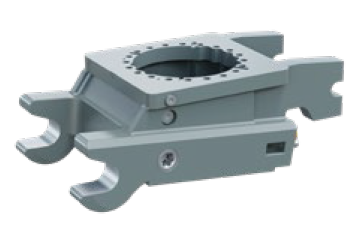

SYSTEM L-LOCK

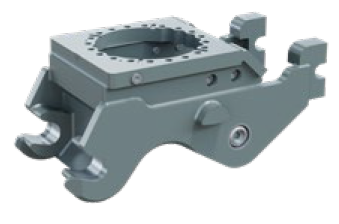

SYSTEM LIEBHERR
Functional exchange, depending on demands!
As a global company we know that customers of different regions become familiar with certain styles and characteristics of products, including quick couplers.
We constantly improve our designs for higher productivity and greater safety and we also understand that customers may already own existing products which require a compatible coupler solution to keep on using them. We are generally differentiating between three different quick coupler systems:
We constantly improve our designs for higher productivity and greater safety and we also understand that customers may already own existing products which require a compatible coupler solution to keep on using them. We are generally differentiating between three different quick coupler systems:
FULLY HYDRAULIC QUICK COUPLERS
Fully hydraulic quick couplers connect the worktool mechanically as well as hydraulically without leaving the cabin. No need to connect hoses anymore.
HYDRAULIC QUICK COUPLERS The hydraulic quick coupler allows for an efficient and safe mounting of the attachment without leaving the cabin. The spring-pretensioned locking pins provide for a force-fit connection without play. Besides the special spring-locking system, the carrier pin (system S-Lock) is also secured mechanically. The attachment cannot get loose.
MECHANIC QUICK COUPLERS An automatic spring-locking system facilitates the coupling of the tool. By simply turning a socket, the coupler is opened or closed for the tool exchange. This provides a high functional safety; the spring loaded system is over-center locking. Besides the special spring-locking system, the carrier pin is also secured mechanically.
HYDRAULIC QUICK COUPLERS The hydraulic quick coupler allows for an efficient and safe mounting of the attachment without leaving the cabin. The spring-pretensioned locking pins provide for a force-fit connection without play. Besides the special spring-locking system, the carrier pin (system S-Lock) is also secured mechanically. The attachment cannot get loose.
MECHANIC QUICK COUPLERS An automatic spring-locking system facilitates the coupling of the tool. By simply turning a socket, the coupler is opened or closed for the tool exchange. This provides a high functional safety; the spring loaded system is over-center locking. Besides the special spring-locking system, the carrier pin is also secured mechanically.
